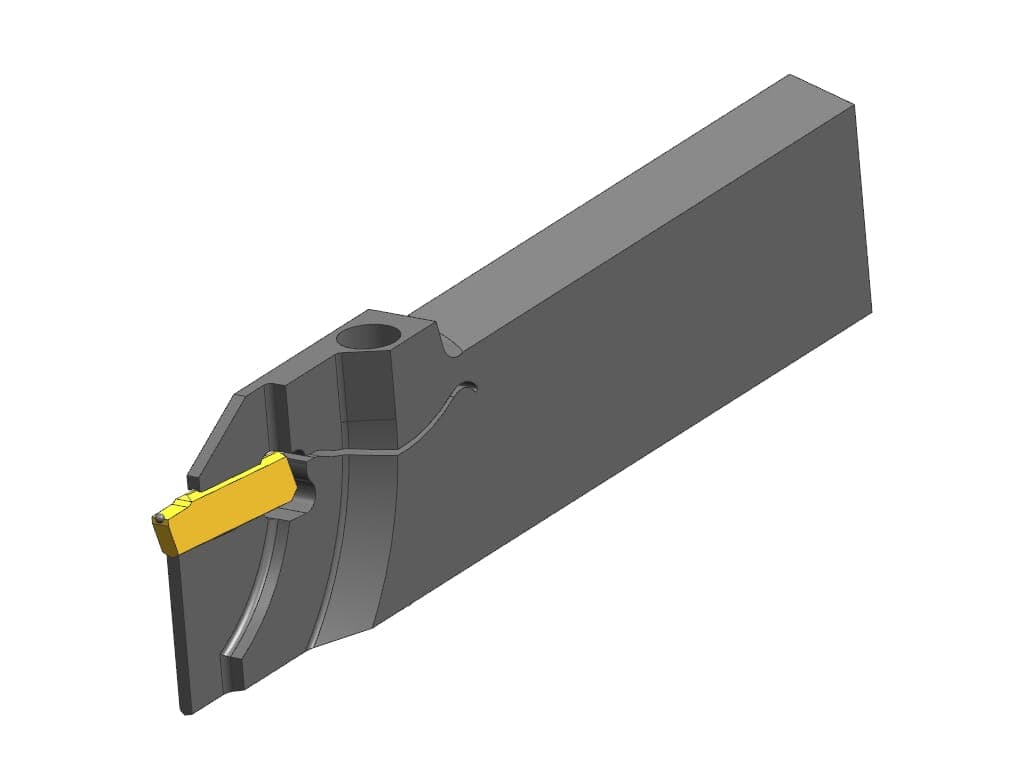

1 / 2: HORN RH224.2608.82
Parting-off
External grooving| Clamping range maximum (Spannbereich) | 2.8 |
|---|---|
| Clamping range minimum (Spannbereich) | 2.4 |
| Head height (h) | 26 |
| Maximum insertion depth (tmax a) | 18 |
| Maximum workpiece diameter (Da min) |
Henter tekniske filer …
Henter matchende værktøj…
| 36 |
| Peak height (h1) | 21.4 |
|---|
| Plating seat size (Größe) | 2 |
|---|
| Total length (including cutting insert) (l1) | 110 |
|---|
| Total length (l) | 110 |
|---|
| Width, thickness sword (b) | 7.9 |
|---|
| Width of groove (w) | 2.5 |
|---|
| clamping range max met | 2.8 |
|---|
| clamping range min met | 2.4 |
|---|
