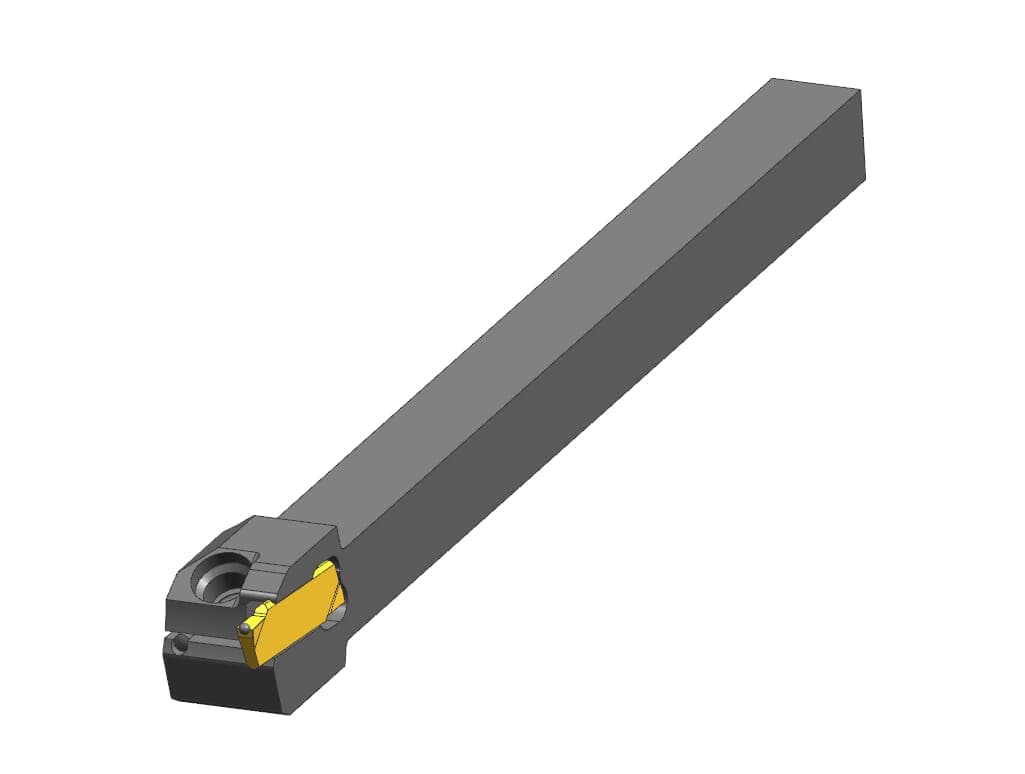

1 / 2: HORN RH264.1616.12
Parting-off| Head height (HK) | 18.5 |
|---|---|
| Head length top _including cutting edge_ (l2) | 19 |
| Maximum insertion depth (tmax a) | 10 |
| Maximum workpiece diameter (Da min) | 32 |
| Peak height (h1) | 16 |
| Plating seat size (Größe) | 2 |
| Shank height (h) | 16 |
| Shank width (b) |
Henter tekniske filer …
Henter matchende værktøj…
| 16 |
| Total length (including cutting insert) (l1) | 120 |
|---|
| Total length (l) | 120 |
|---|
