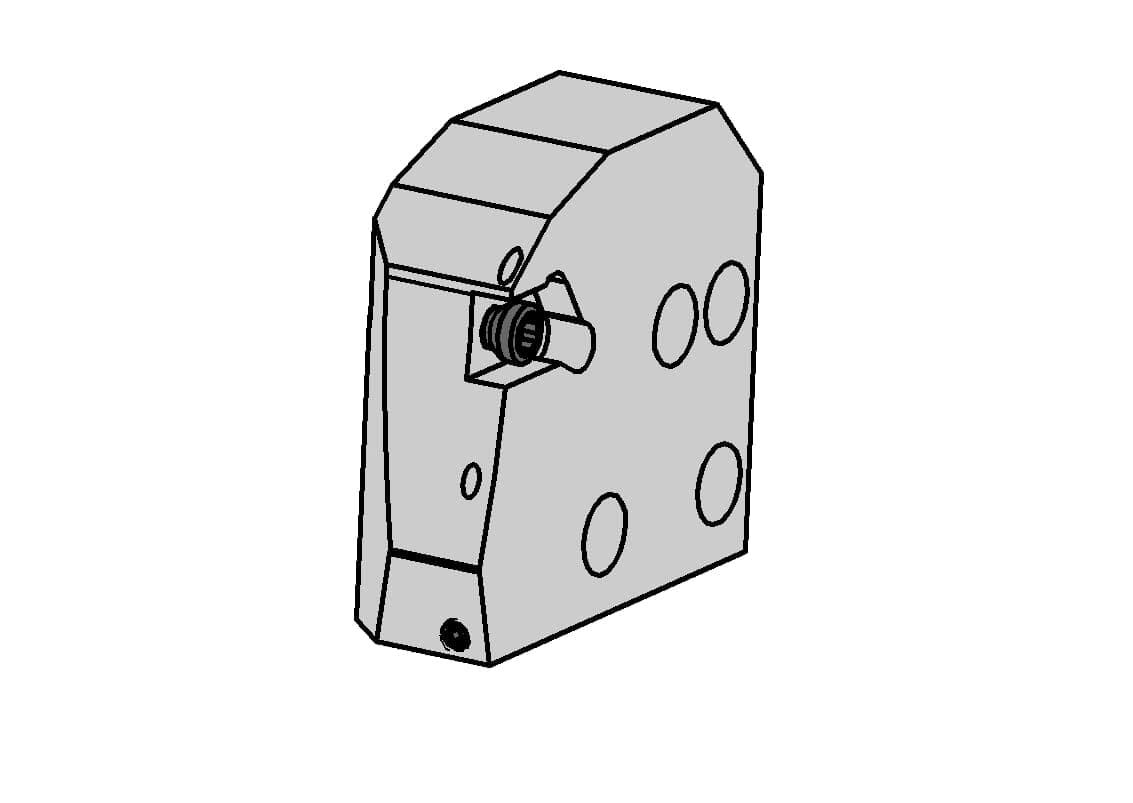

Cassettes NK274 pocket seat system 220 with IC
Parting-off
External grooving

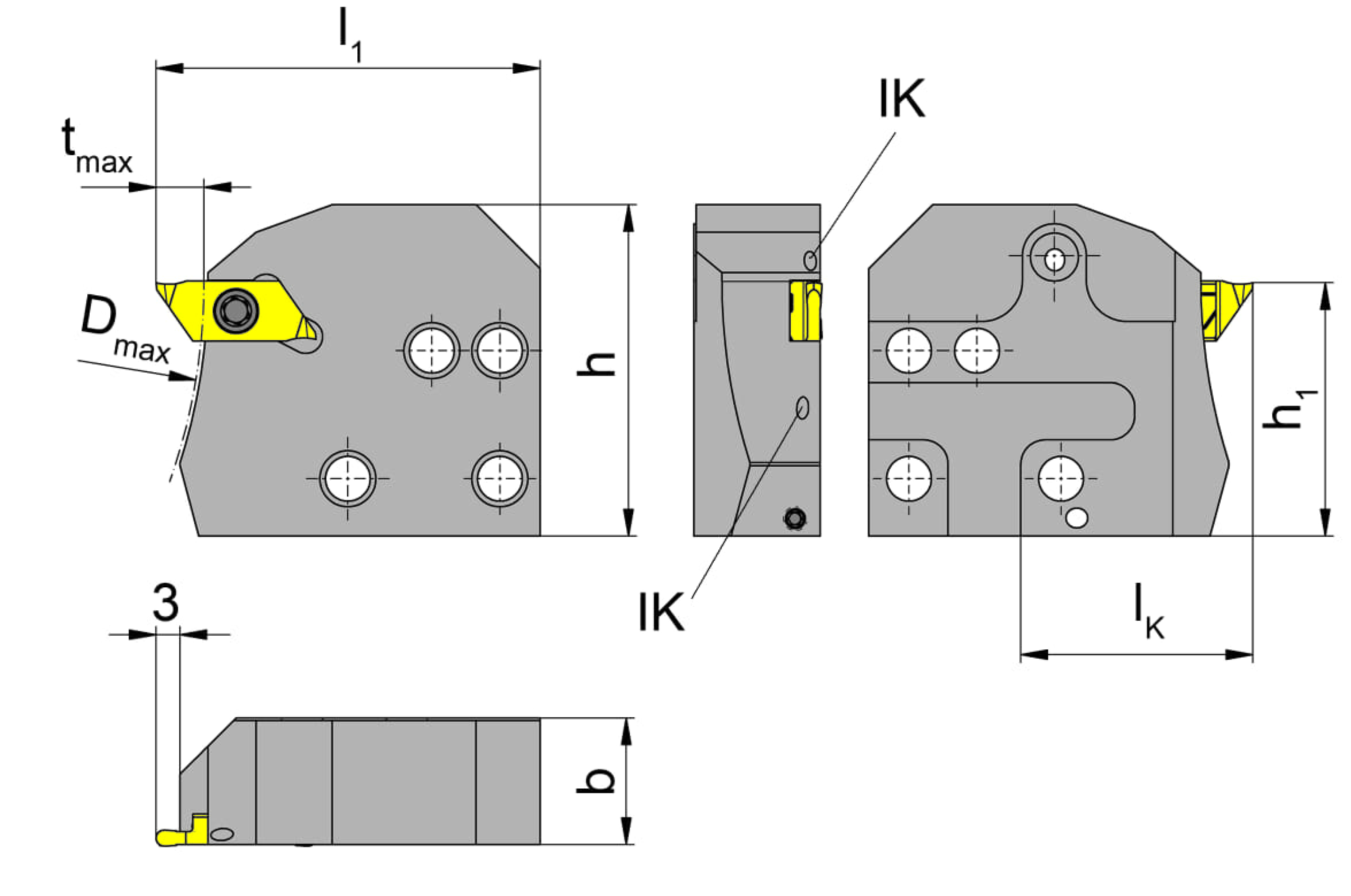

Targeted coolant| Adjustment dimension of system cassette (f2) | 16 |
|---|---|
| Cassette thickness (b) |
Henter tekniske filer …
Kategorier:Cassettes NK274 pocket seat system 220 with IC
Henter matchende værktøj…
| 15.8 |
| Clamping range maximum (Spannbereich) | 4 |
|---|
| Clamping range minimum (Spannbereich) | 4 |
|---|
| Height (h) | 41.4 |
|---|
| Maximum workpiece diameter (Da min) | 150 |
|---|
| Maximum depth of groove (tmax) | 6 |
|---|
| Peak height (h1) | 31.65 |
|---|
| Total length (including cutting insert) (l1) | 48 |
|---|
| Total length (l) | 48 |
|---|
