Cassette NK274 pocket seat system 840

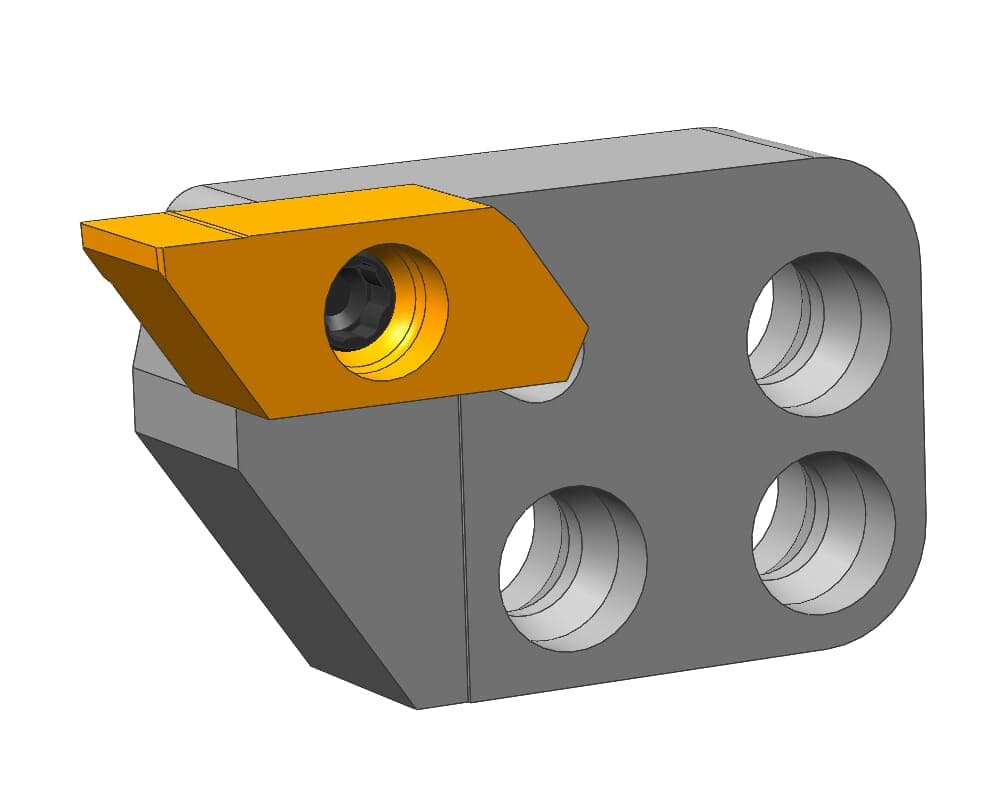

1 / 2: HORN RNK274.0840.1.04
Parting-off
External grooving| Adjustment dimension locating face insert (f2) | 6 |
|---|---|
| Adjustment dimension of system cassette form(f3) | f2+w |
| Cassette thickness (b) | 10 |
| Clamping range maximum (Spannbereich) | 4 |
Henter tekniske filer …
Kategorier:Cassette NK274 pocket seat system 840
Henter matchende værktøj…
| Clamping range minimum (Spannbereich) |
|---|
| 0.5 |
| Maximum workpiece diameter (Da min) | 25 |
|---|
| Maximum depth of groove (tmax) | 6 |
|---|
| Total length (including cutting insert) (l) | 37 |
|---|
| plating-seat-size | 4 |
|---|
