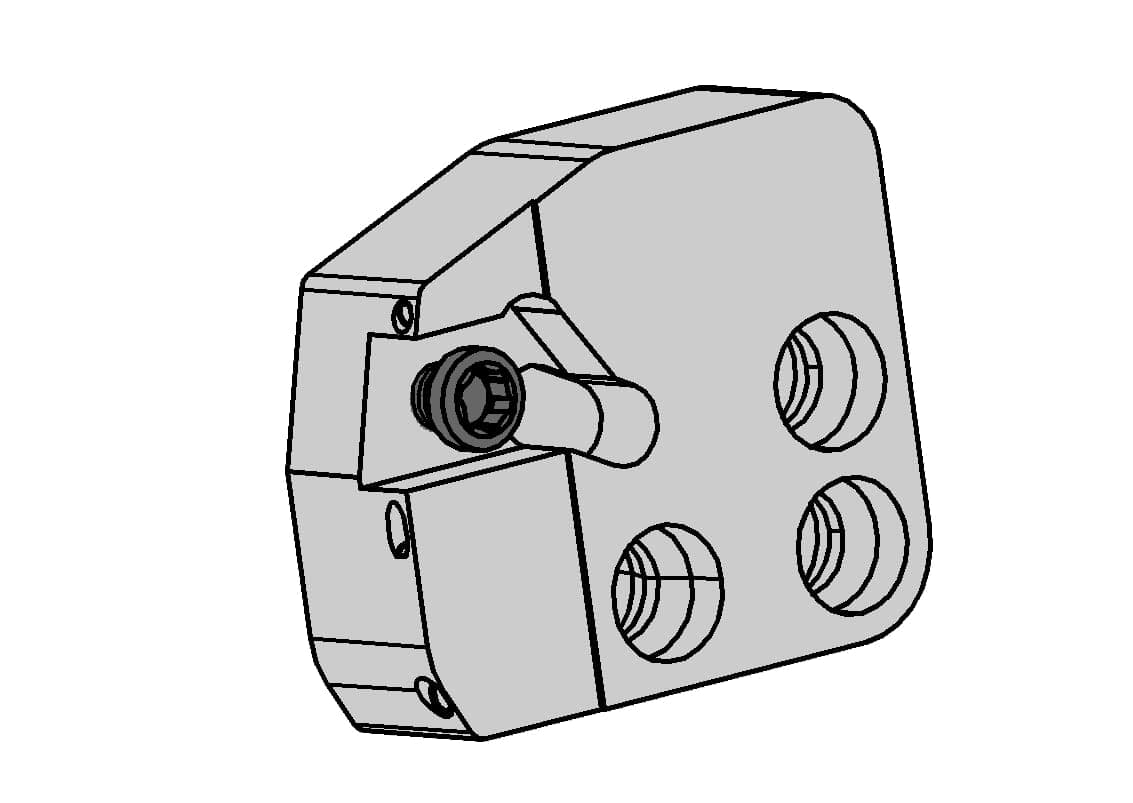

Cassette NK274 pocket seat system 840
Parting-off
External grooving
Targeted coolant| Adjustment dimension locating face insert (f2) | 6 |
|---|---|
| Adjustment dimension of system cassette form(f3) |
Henter tekniske filer …
Kategorier:Cassette NK274 pocket seat system 840
Henter matchende værktøj…

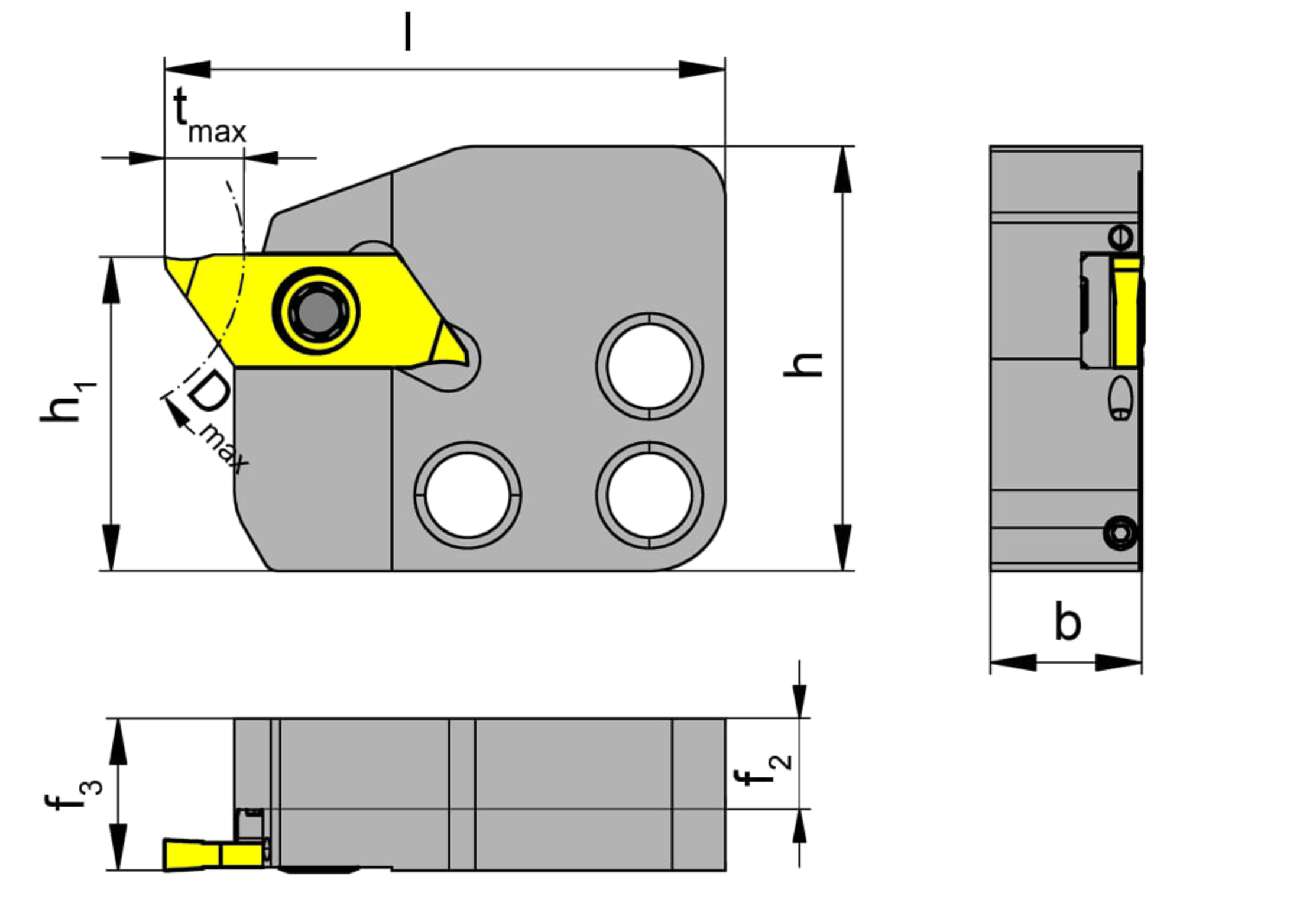

| f2+w |
| Cassette thickness (b) | 10 |
|---|
| Clamping range maximum (Spannbereich) | 4 |
|---|
| Clamping range minimum (Spannbereich) | 0.5 |
|---|
| Height (h) | 28 |
|---|
| Maximum workpiece diameter (Da min) | 25 |
|---|
| Maximum depth of groove (tmax) | 6 |
|---|
| Peak height (h1) | 20.7 |
|---|
| Plating seat size (Größe) | 4 |
|---|
| Total length (including cutting insert) (l) | 37 |
|---|
| adjustment-dimension-of-system-cassette-met | 10 |
|---|
