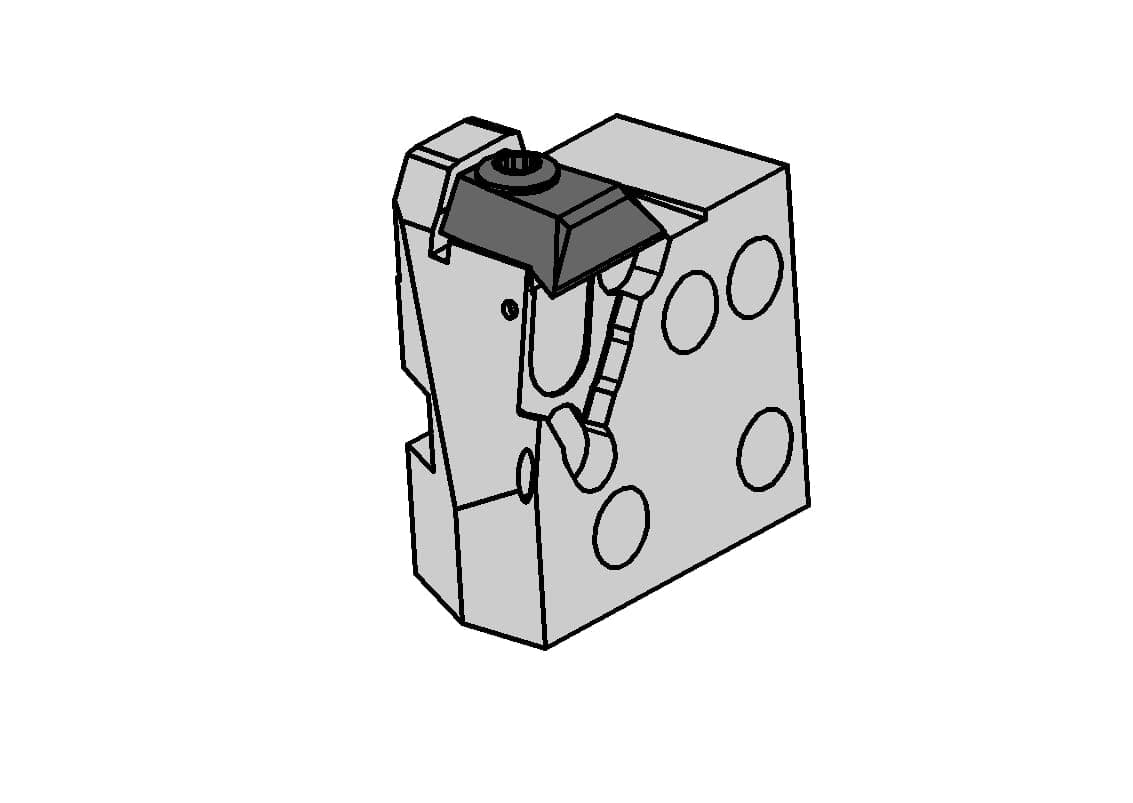

Cassettes NK360 pocket seat system 220 with IC
Parting-off
External grooving
Targeted coolant| Adjustment dimension of system cassette form(f3) | f2+w-a1 |
|---|---|
| Cassette thickness (b) |
Henter tekniske filer …
Kategorier:Cassettes NK360 pocket seat system 220 with IC
Henter matchende værktøj…
| 19.2 |
| Clamping range maximum (Spannbereich) | 1.9 |
|---|
| Clamping range minimum (Spannbereich) | 0.5 |
|---|
| Height (h) | 38.65 |
|---|
| Maximum workpiece diameter (Da min) | 40 |
|---|
| Maximum depth of groove (tmax) | 4 |
|---|
| Peak height (h1) | 31.65 |
|---|
| Plating seat size (Größe) | 1 |
|---|
| Total length (including cutting insert) (l1) | 38 |
|---|
| Total length (l) | 38 |
|---|
| cutting width max met | 1.9 |
|---|
| cutting width min met | 0.5 |
|---|
