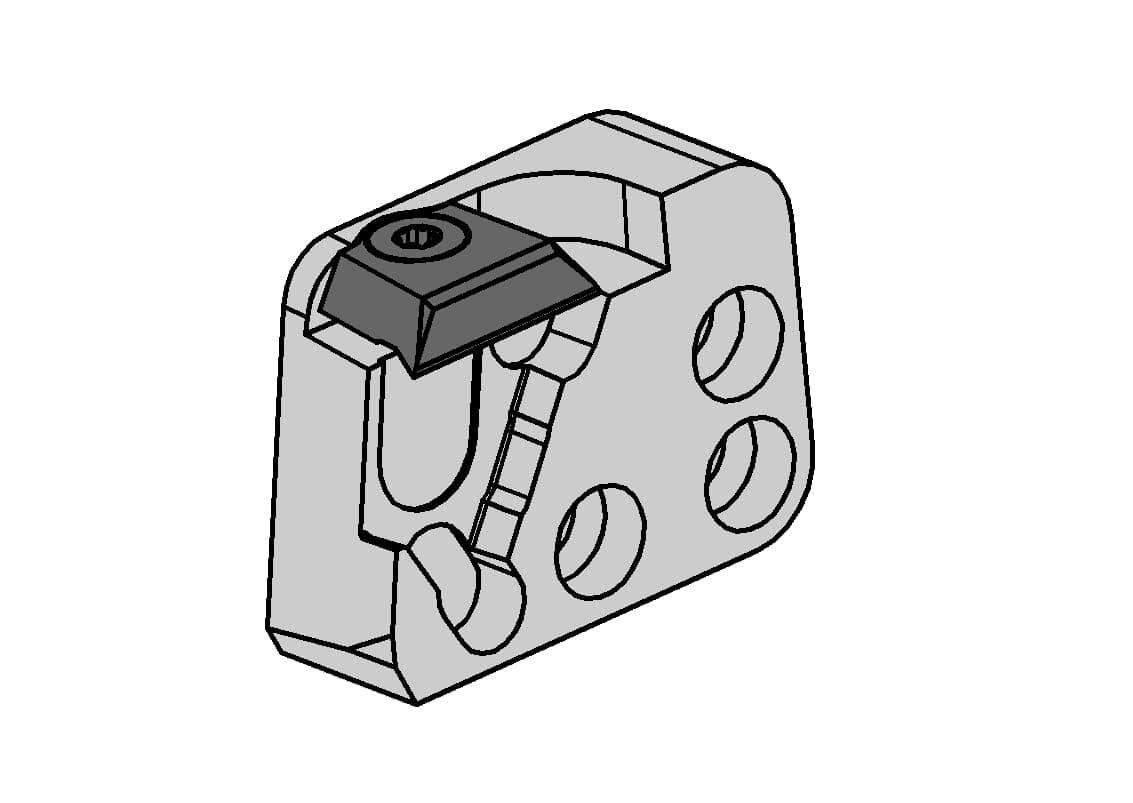

Cassette NK360 pocket seat system 840

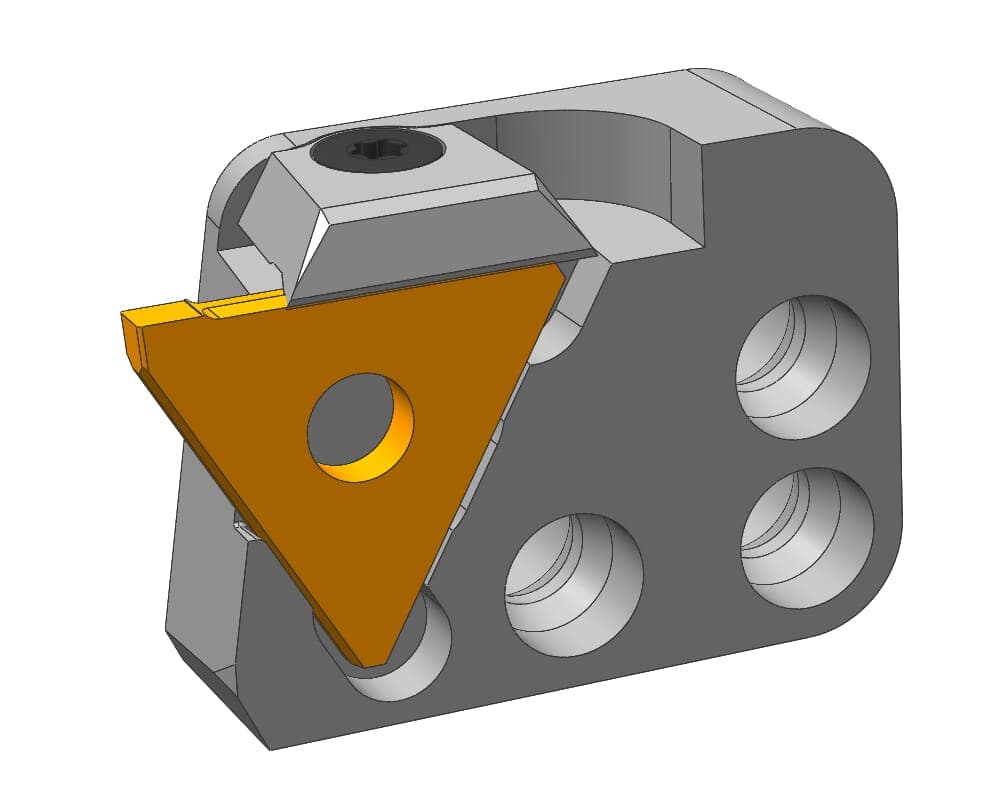

1 / 2: HORN RNK360.0840.1.01
Parting-off

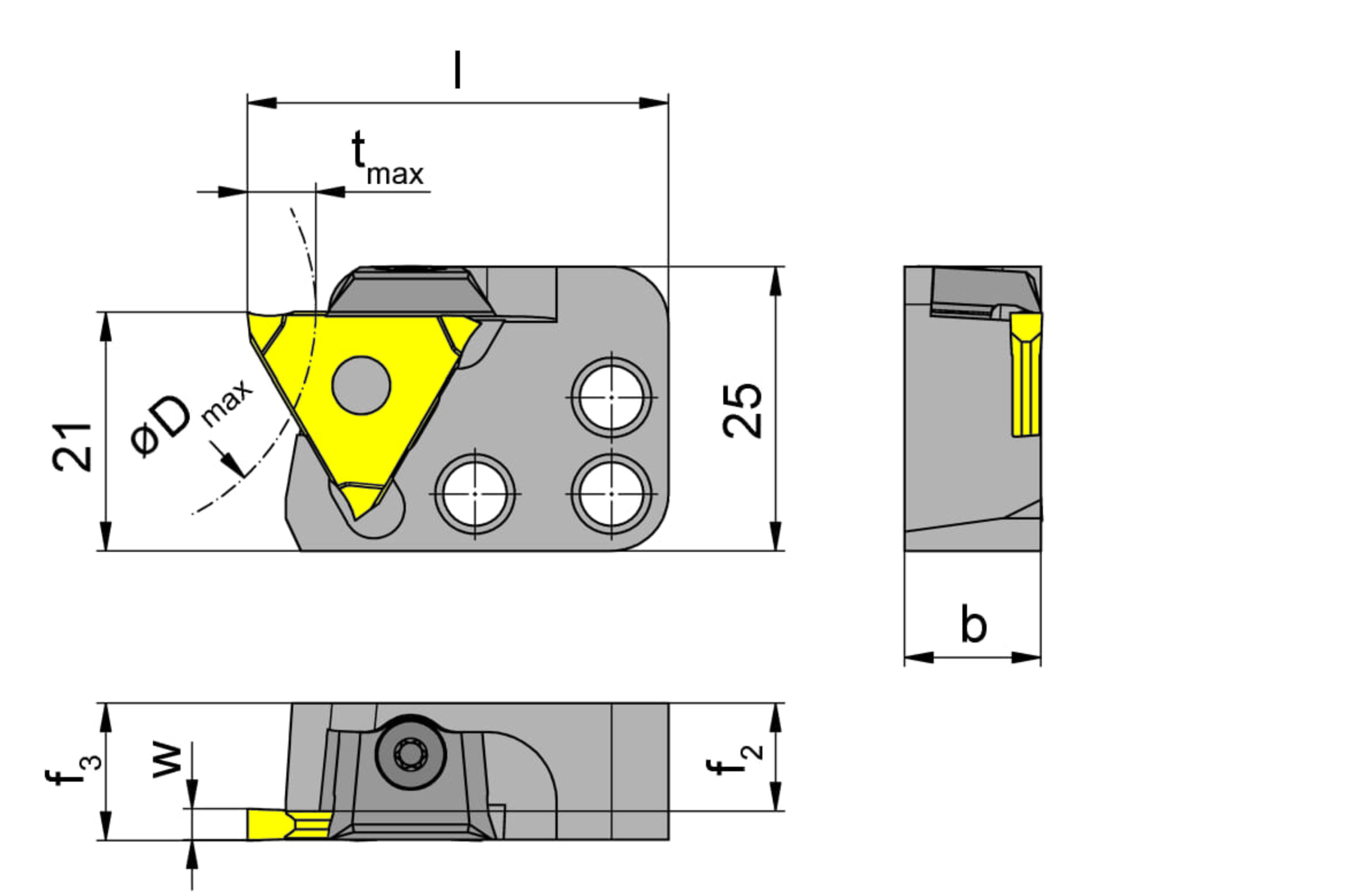

External grooving| Adjustment dimension locating face insert (f2) | 10.5 |
|---|---|
| Adjustment dimension of system cassette form(f3) | f2+w-a1 |
| Cassette thickness (b) | 12 |
| Clamping range maximum (Spannbereich) | 1.9 |
Henter tekniske filer …
Kategorier:Cassette NK360 pocket seat system 840
Henter matchende værktøj…
| Clamping range minimum (Spannbereich) |
|---|
| 0.5 |
| Maximum workpiece diameter (Da min) | 40 |
|---|
| Maximum depth of groove (tmax) | 4 |
|---|
| Total length (including cutting insert) (l) | 37 |
|---|
| cutting width max met | 1.9 |
|---|
| cutting width min met | 0.5 |
|---|
