60° thread
Internal thread
Partial profile thread
Geometry GMHenter tekniske filer …
Kategorier:S108.0205.GM1
Henter matchende værktøj…

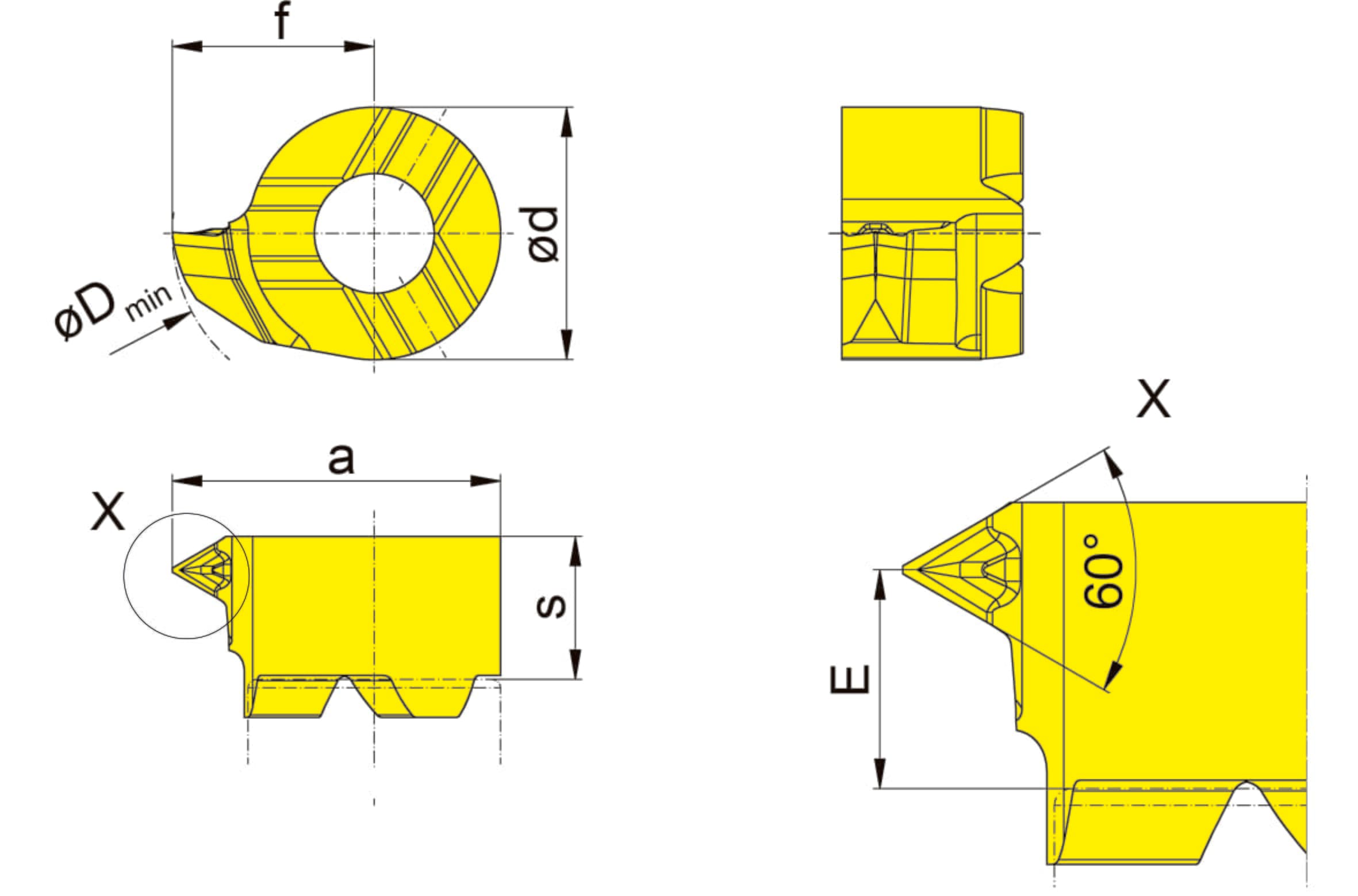

| Cutting insert width (a) | 7.8 |
|---|
| Cutting insert height, Cutting insert thickness (s) | 3.4 |
|---|
| Maximum pitch (Pmax) | 0.75 |
|---|
| Pitch (P) | 0.5 |
|---|
| Setting length (E) | 2.6 |
|---|
| Smallest bore diameter (Da min) | 8 |
|---|
| Tooth diameter, head diameter (d) | 6 |
|---|
