60° thread| Cutting insert width (a) | 10.7 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 4.1 |
| Maximum pitch (Pmax) | 0.75 |
| Number of teeth (Z) | 1 |
| Pitch (P) | 0.5 |
| Setting length (E) | 3.1 |
| Smallest bore diameter (Da min) | 11 |
| Tooth diameter, head diameter (d) |
Henter tekniske filer …

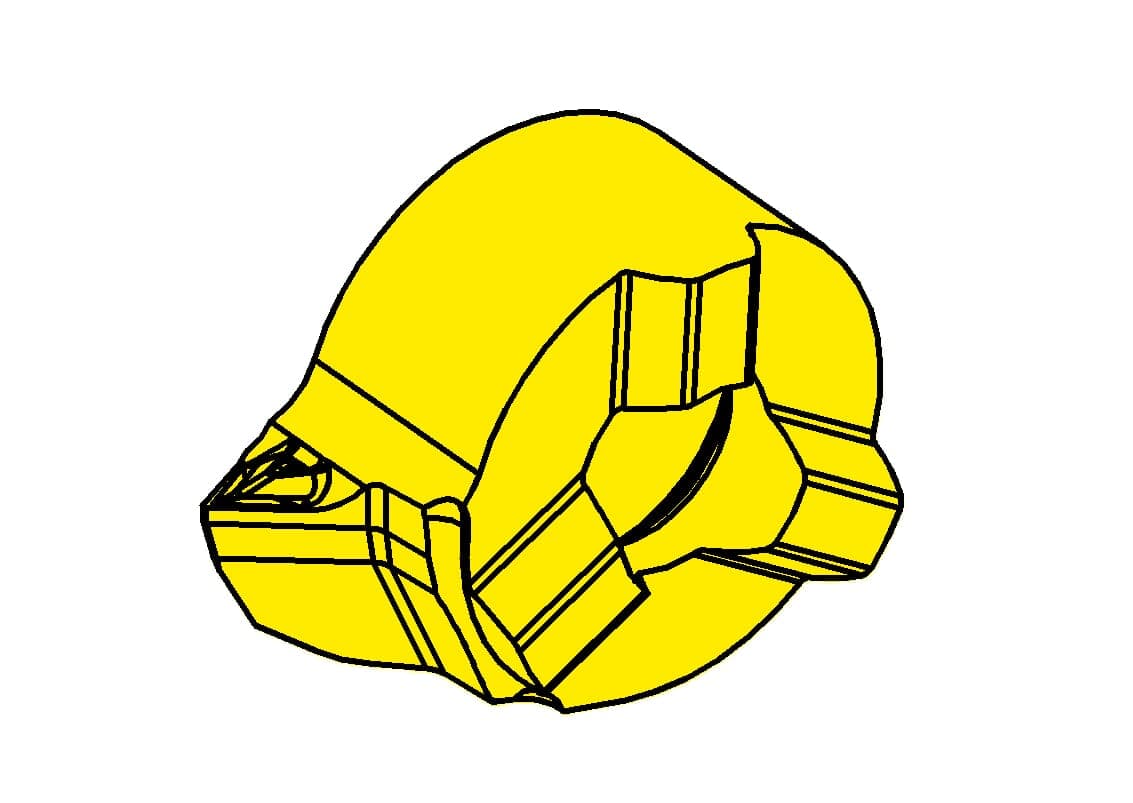

Kategorier:S111.0205.GM1
Henter matchende værktøj…
| 8 |
| number-of-teeth | 1 |
|---|
