| _application | /conversions/RS275016000_PICTO.JPG |
|---|---|
| _icon | innen_nut.jpg; seegerring.jpg |
| _download | /documents/RS275021500_20210629_032336399.DXF; /documents/RS275021500_20240116_174211734.STP |
| _drawing | /conversions/S275_00_20170622_162543038.JPG |

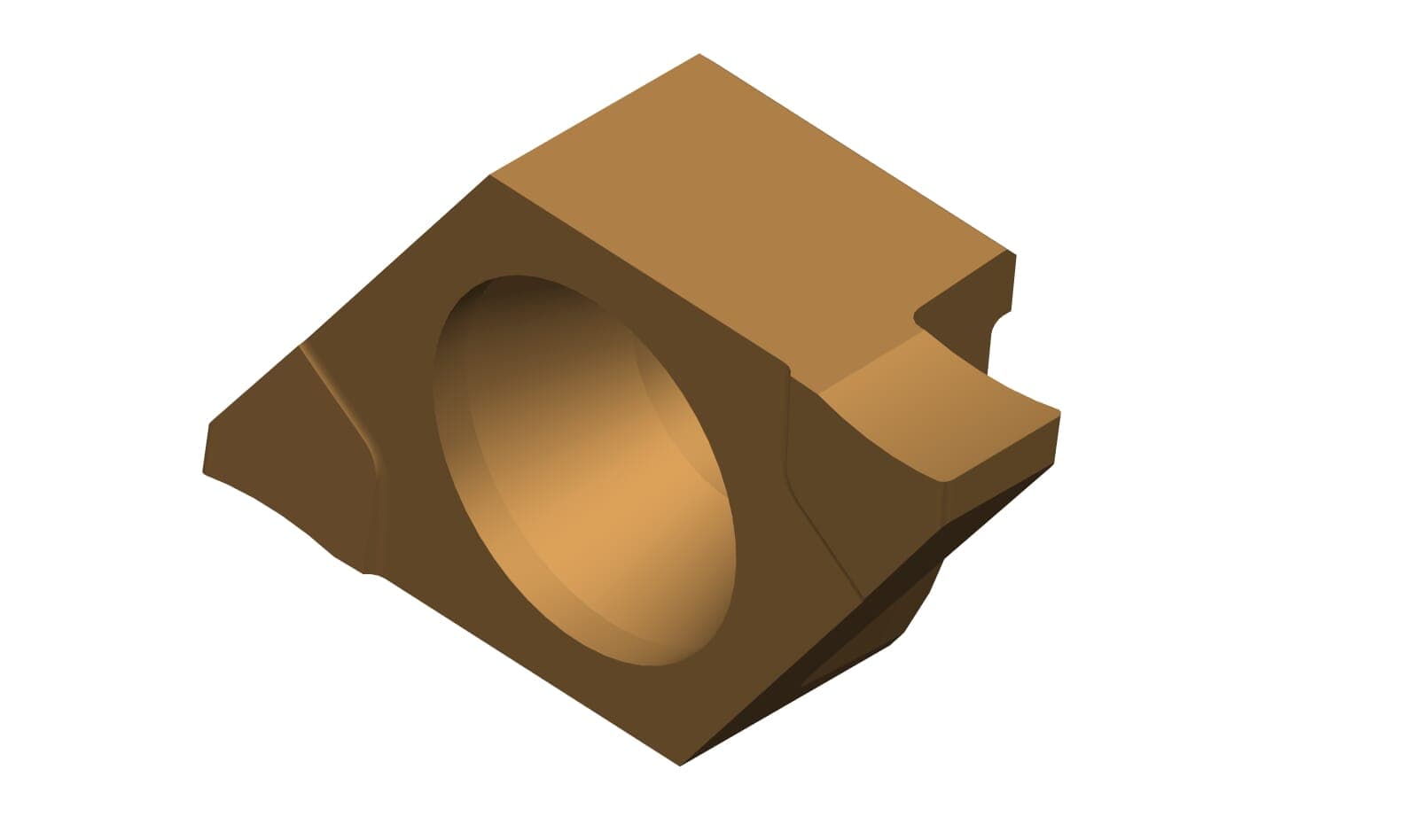

| _main_image | /conversions/RS275021500.JPG |
| Cutting insert thickness to cutting edge, setting | 4.3 |
| Corner radius (r) | 0.15 |
| eclass shortcut | 21-18-20-03 |
| eclass | 21-18-20-03:Wendeschneidplatte, rhombisch (ACD549007) |
| DIN_SSC | HORN-275043031R |
| ISO-SSC | HORN275043031R$$$$$ |
| Katalog-SSC | 275043R |
| Nominal range (Nw) | 2.15 |
| productnr-sap | RS275021500AS45 |
| Width of groove (w) | 2.25 |
| Maximum milling depth/ depth of groove (tmax) | 2.5 |
