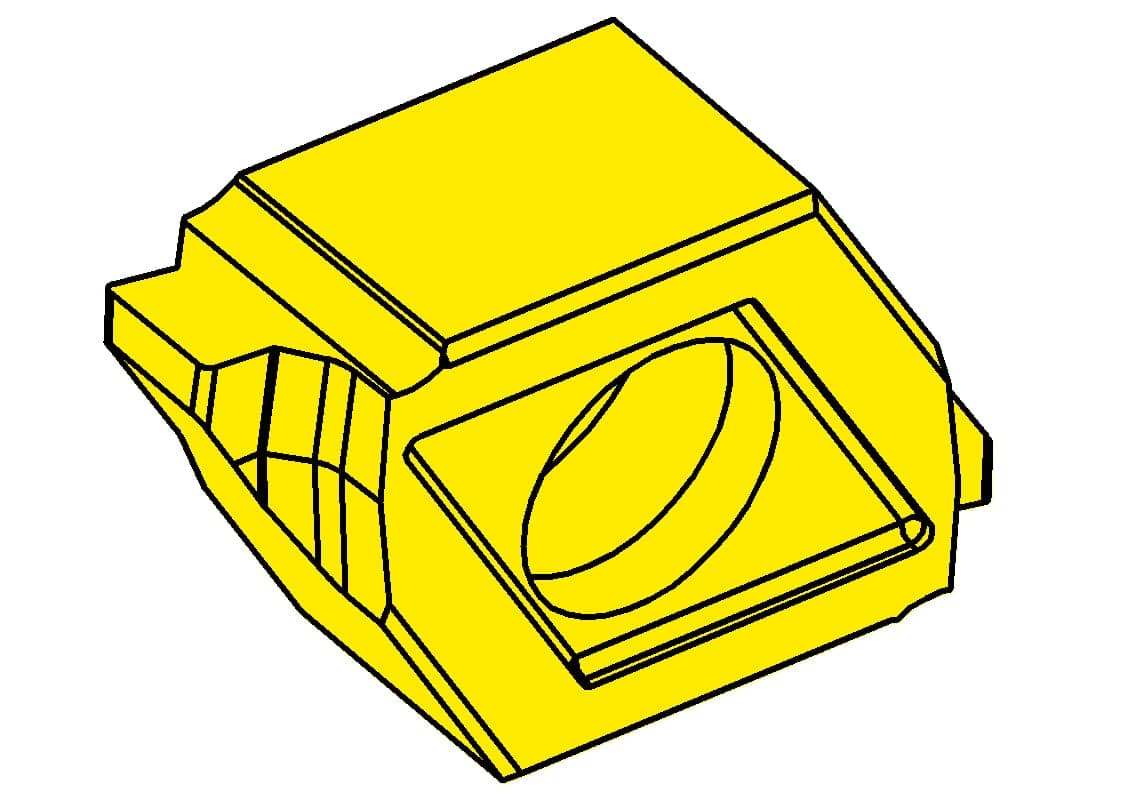

| _application | /conversions/RS275181241_PICTO.JPG |
|---|---|
| _icon | innen_nut.jpg; seegerring.jpg |
| _download | /documents/RS275181241_20210629_032637831.DXF; /documents/RS275181241_20240116_174356332.STP |
| _drawing | /conversions/S275_41_20170622_162533038.JPG |

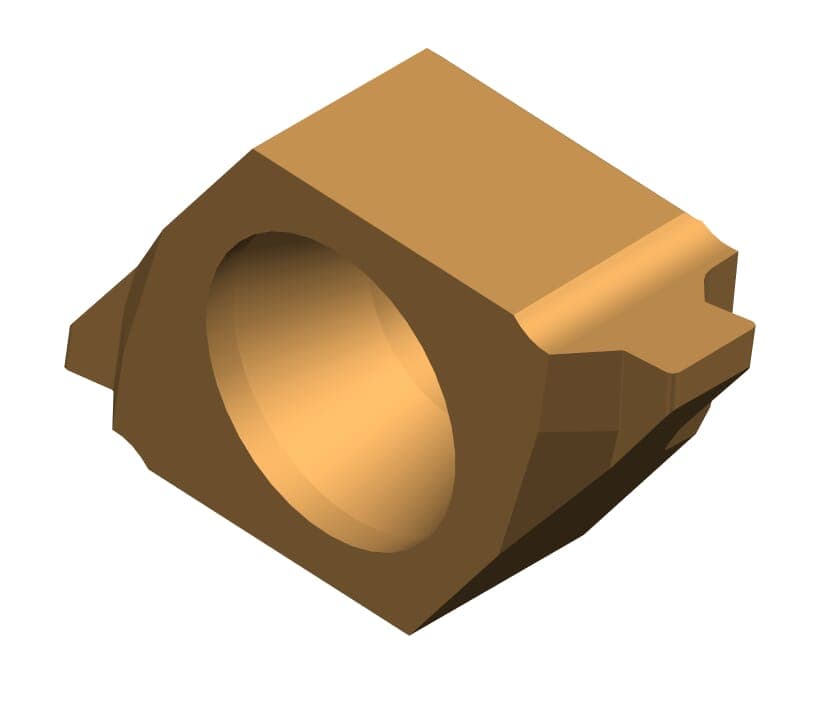

| _main_image | /conversions/RS275181241.JPG |
| Cutting insert thickness to cutting edge, setting | 4.1 |
| Corner radius (r) | 0.15 |
| eclass shortcut | 21-18-20-03 |
| eclass | 21-18-20-03:Wendeschneidplatte, rhombisch (ACD549007) |
| DIN_SSC | HORN-275041031R |
| ISO-SSC | HORN275041031R$$$$$ |
| Katalog-SSC | 275041R |
| Nominal range (Nw) | 1.85 |
| Milling depth without NAKF (t1) | 1.21 |
| productnr-sap | RS275181241AS45 |
| Width of groove (w) | 1.95 |
| Maximum milling depth/ depth of groove (tmax) | 1.25 |
