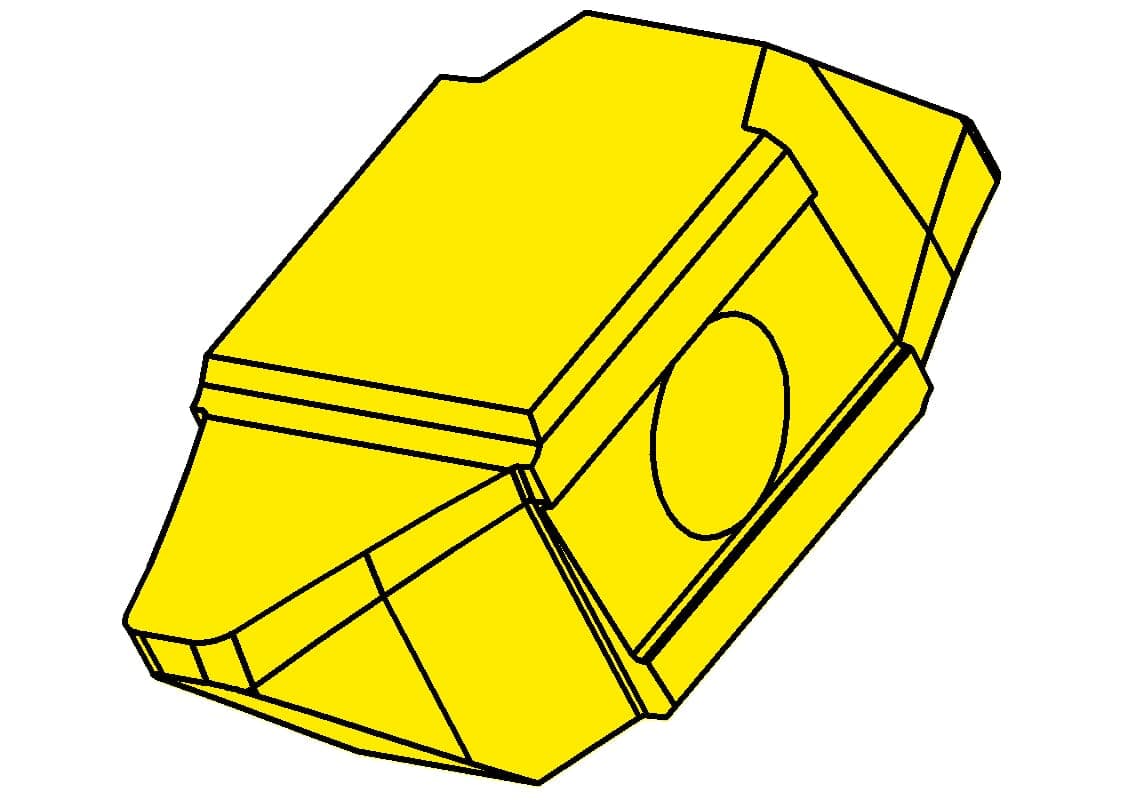

| _application | /conversions/RS27939723751_PICTO.JPG |
|---|---|
| _icon | verzahnung_fraesen.jpg |
| _download | /documents/RS27939724007.DXF; /documents/RS27939724007_20240116_175609660.STP |

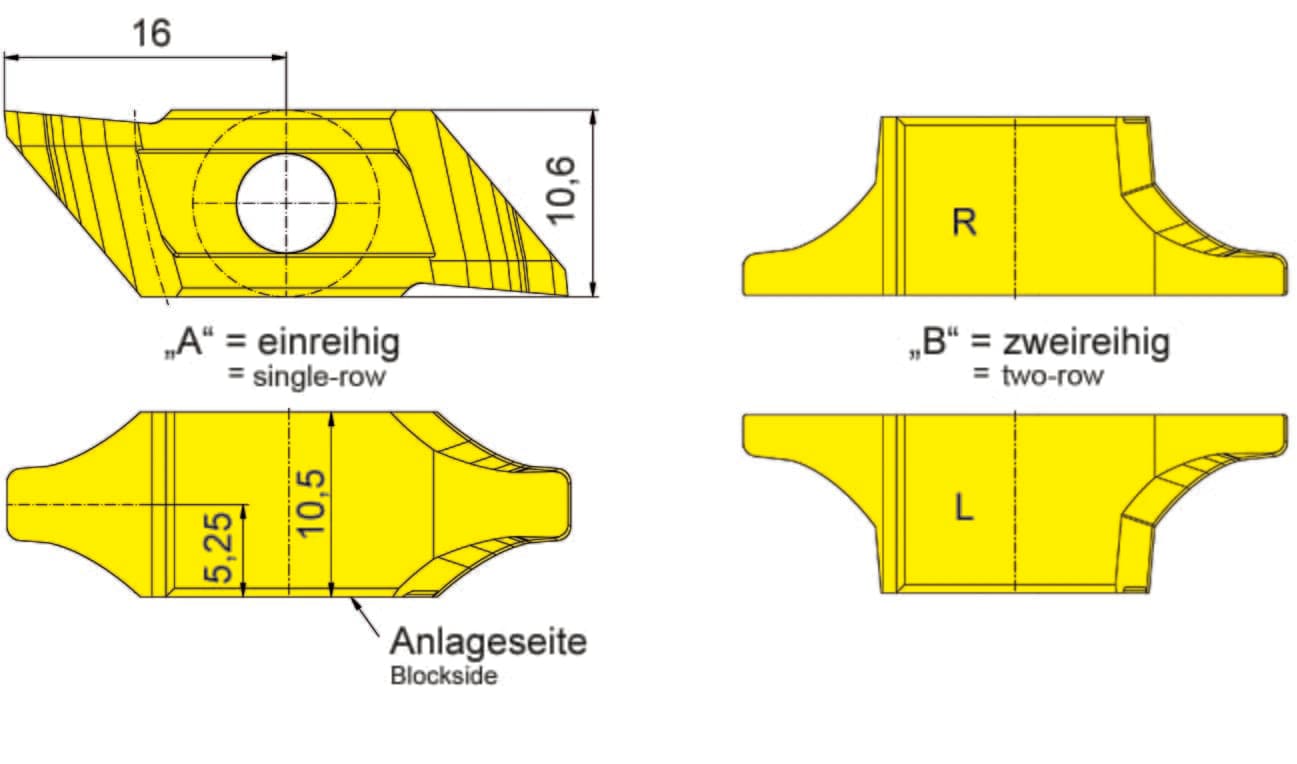

| _drawing | /conversions/279_VERZ_20170127_182404857.JPG |
| Cutting insert height, Cutting insert thickness (s) | 10.5 |
| eclass shortcut | 21-18-20-03 |
| eclass | 21-18-20-03:Wendeschneidplatte, rhombisch (ACD549007) |
| DIN_SSC | HORN-279105000R |
| ISO-SSC | HORN279105000R$$$$$ |
| Katalog-SSC | 279105R |
| Number of teeth (Z) | 2 |
| Maximum milling depth/ depth of groove (w) | 8.8 |
| Module (Modul) | 4 |
| Number of teeth gear wheel maximum (zmax) | 55 |
| productnr-sap | RS27939724007AS45 |
| Setting length (E1) | 5.25 |
| Form _Form_ | A |
