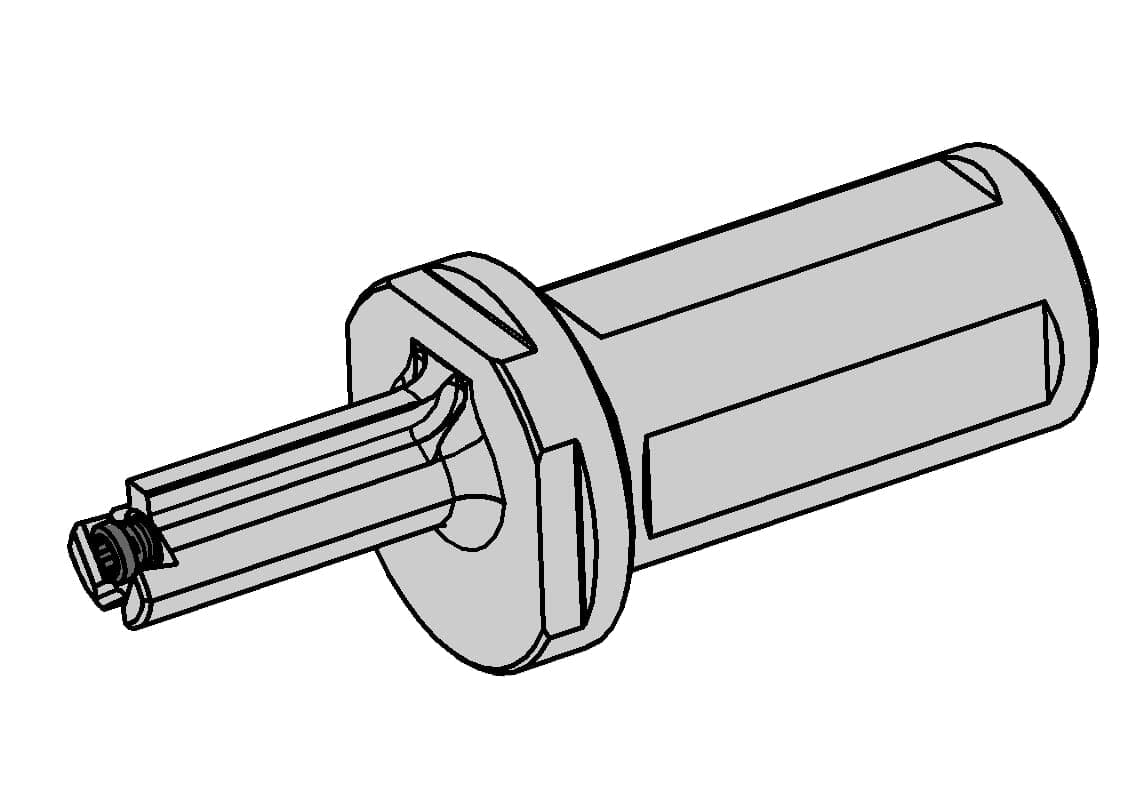

HORN SH117.0025.1.10.IK /Ø22 50mm use

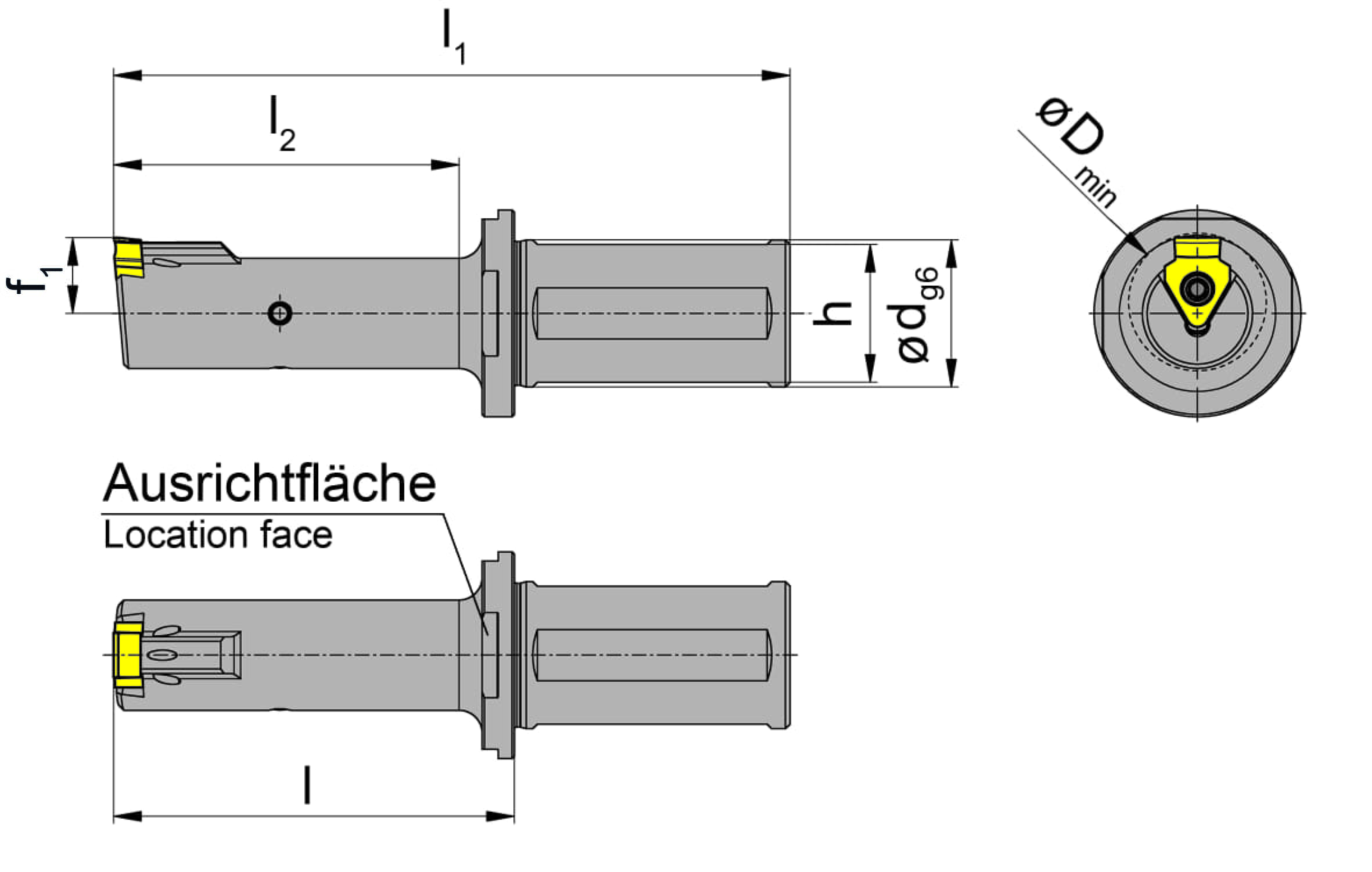

Tekniske billeder

Tekniske specifikationer
Clamping_ shank diameter (d)	25
Form _Form_	B
Height clamping surface(s) (h)	23
Length from bore (l)	63
Minimum drilling diameter (Dmin)	22
Outcropping, neck, working length (l2)	50
Total length (including cutting insert) (l1)	113
