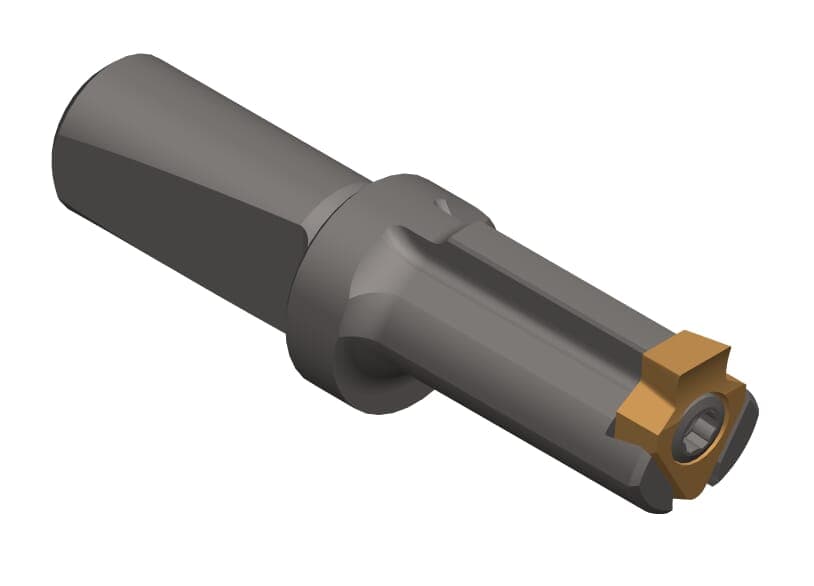

1 / 2: HORN SH117.1412.S1.08
Chamfer broaching
Internal Broaching
External broaching| Clamping_ shank diameter (d) | 12 |
|---|---|
| Form _Form_ |
Henter tekniske filer …
Kategorier:System H117
Henter matchende værktøj…
| F |
| Length from bore (l) | 33 |
|---|
| Minimum drilling diameter (Dmin) | 14 |
|---|
| Outcropping, neck, working length (l2) | 25 |
|---|
| Peak height (a) | 12.8 |
|---|
| Total length (including cutting insert) (l1) | 58 |
|---|
| Total length (l) | 58 |
|---|
| Working length (l2) | 25 |
|---|
