H_H-SH117....14.._12 (Klemmhalter)

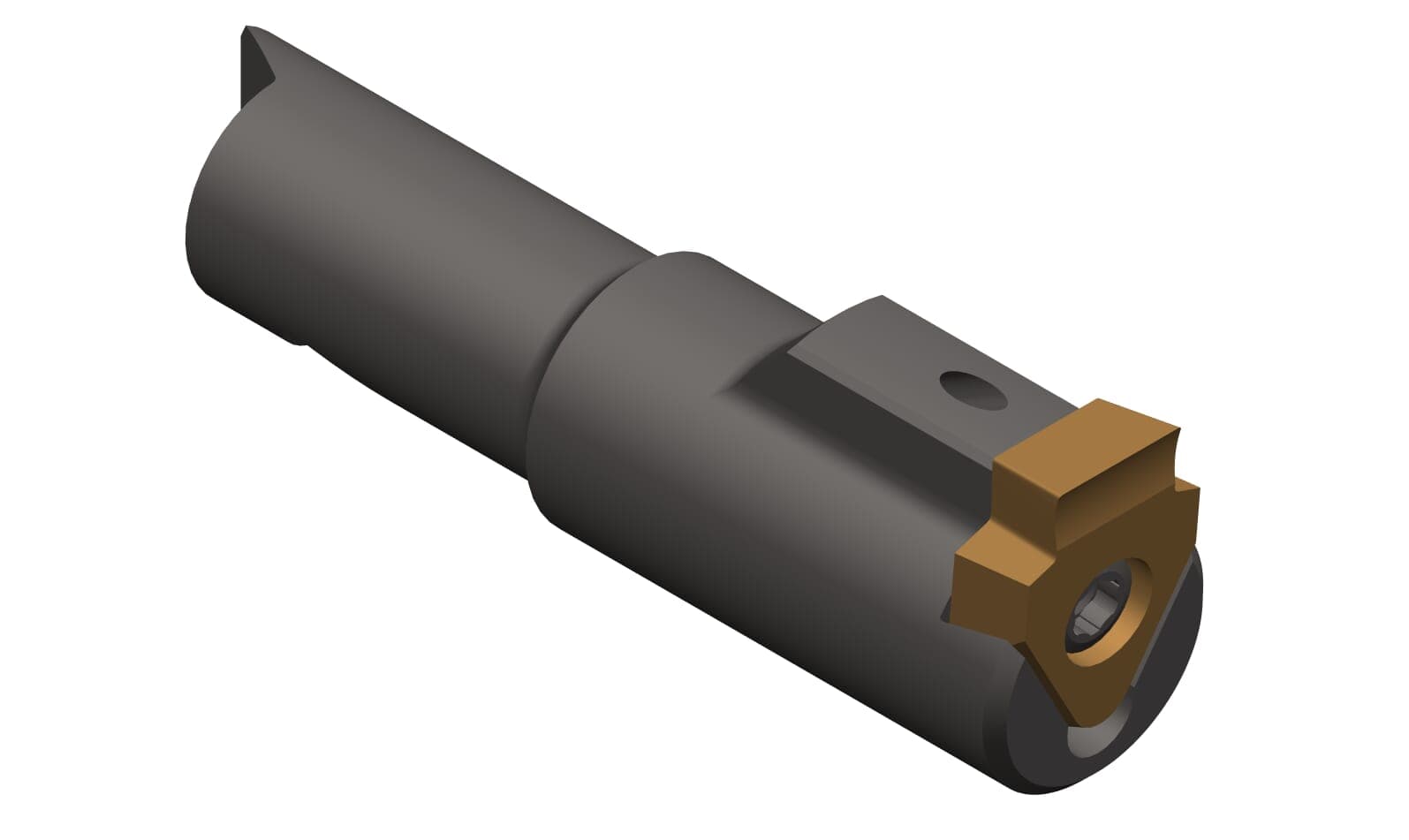

1 / 2: HORN SH117.1538.S.16
Chamfer broaching
Internal Broaching
External broaching
Internal coolingHenter tekniske filer …
Kategorier:H_H-SH117....14.._12 (Klemmhalter)
Henter matchende værktøj…
| Clamping_ shank diameter (d) | 15 |
|---|---|
| Form _Form_ | C |
| Length from bore (l) | 43 |
| Minimum drilling diameter (Dmin) | 30 |
| Outcropping, neck, working length (l2) | 38 |
| Peak height (a) | 24 |
| Total length (including cutting insert) (l1) | 76 |
| Total length (l) | 76 |
| Working length (l2) | 38 |
