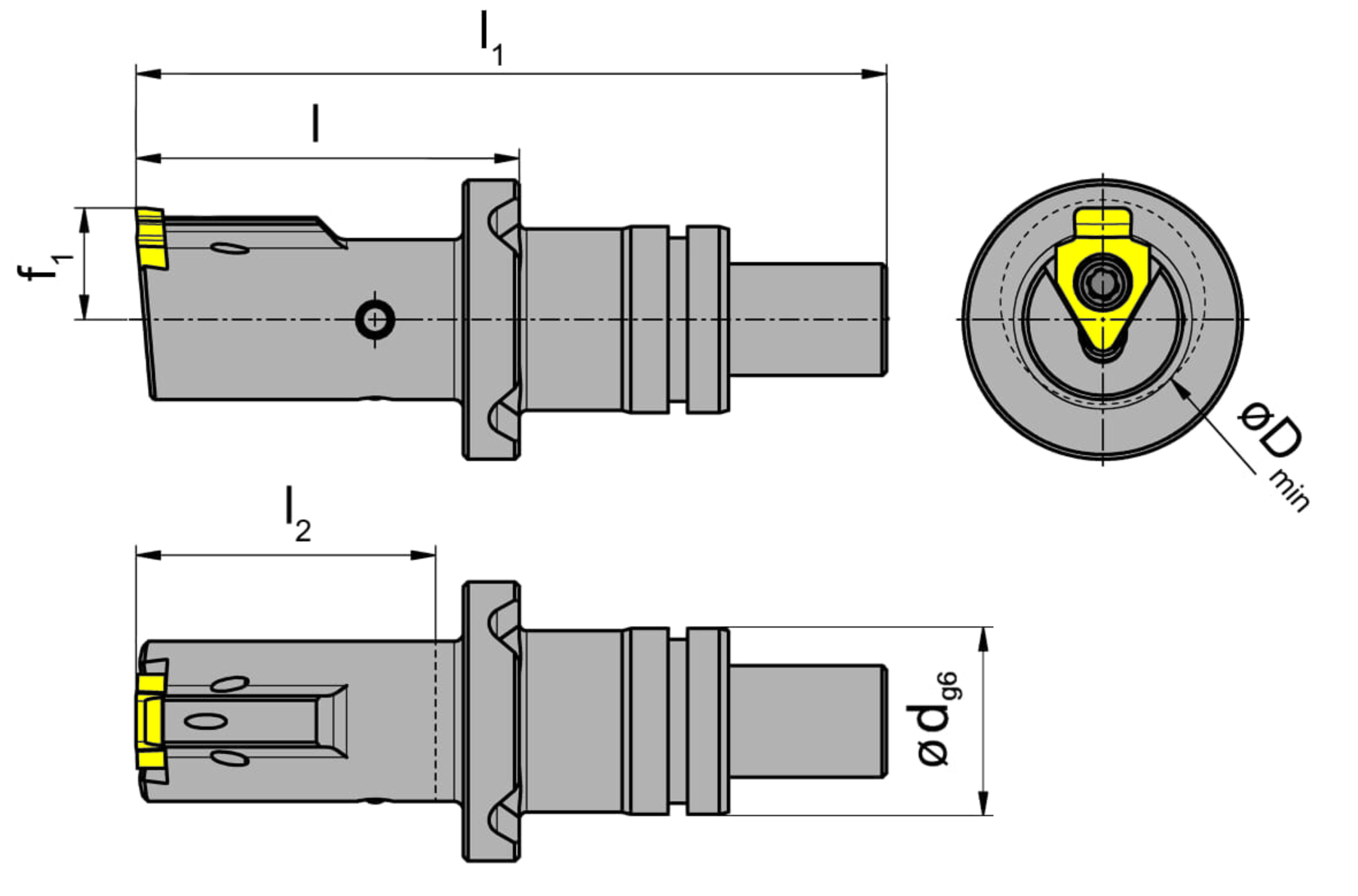

External broaching| Clamping_ shank diameter (d) | 20 |
|---|---|
| Form _Form_ | A |
| Length from bore (l) | 41 |
| Minimum drilling diameter (Dmin) | 17 |
| Outcropping, neck, working length (l2) | 32 |
| Total length (including cutting insert) (l1) | 80.5 |
| Total length (l) | 80.5 |
| Working length (l2) |
Henter tekniske filer …
Kategorier:System SH117...E..IK
Henter matchende værktøj…
| 32 |
