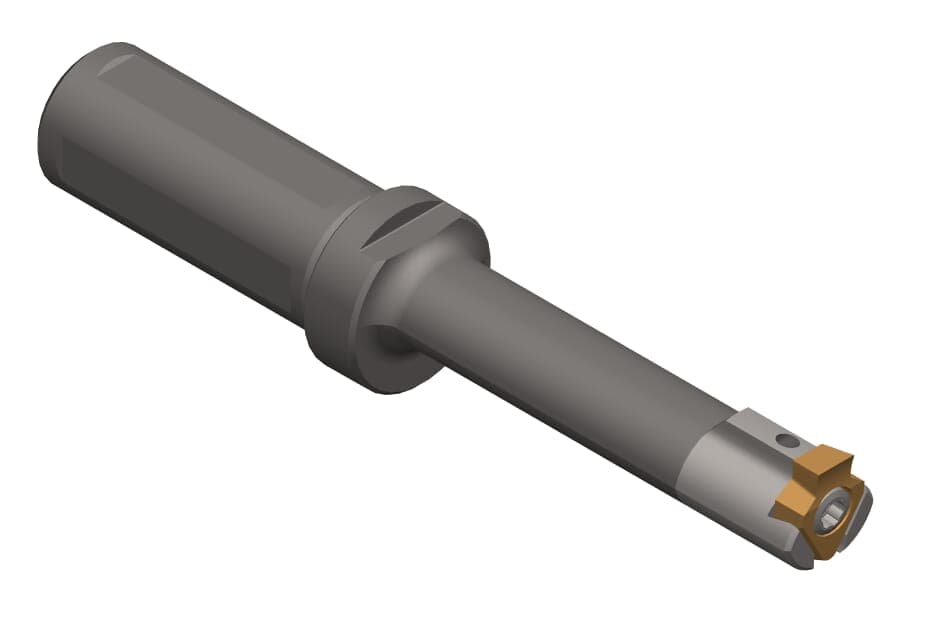

1 / 2: HORN SHM117.1416.3.08
Chamfer broaching
Internal Broaching
External broaching
Internal coolingHenter tekniske filer …
Kategorier:SHM117
Henter matchende værktøj…

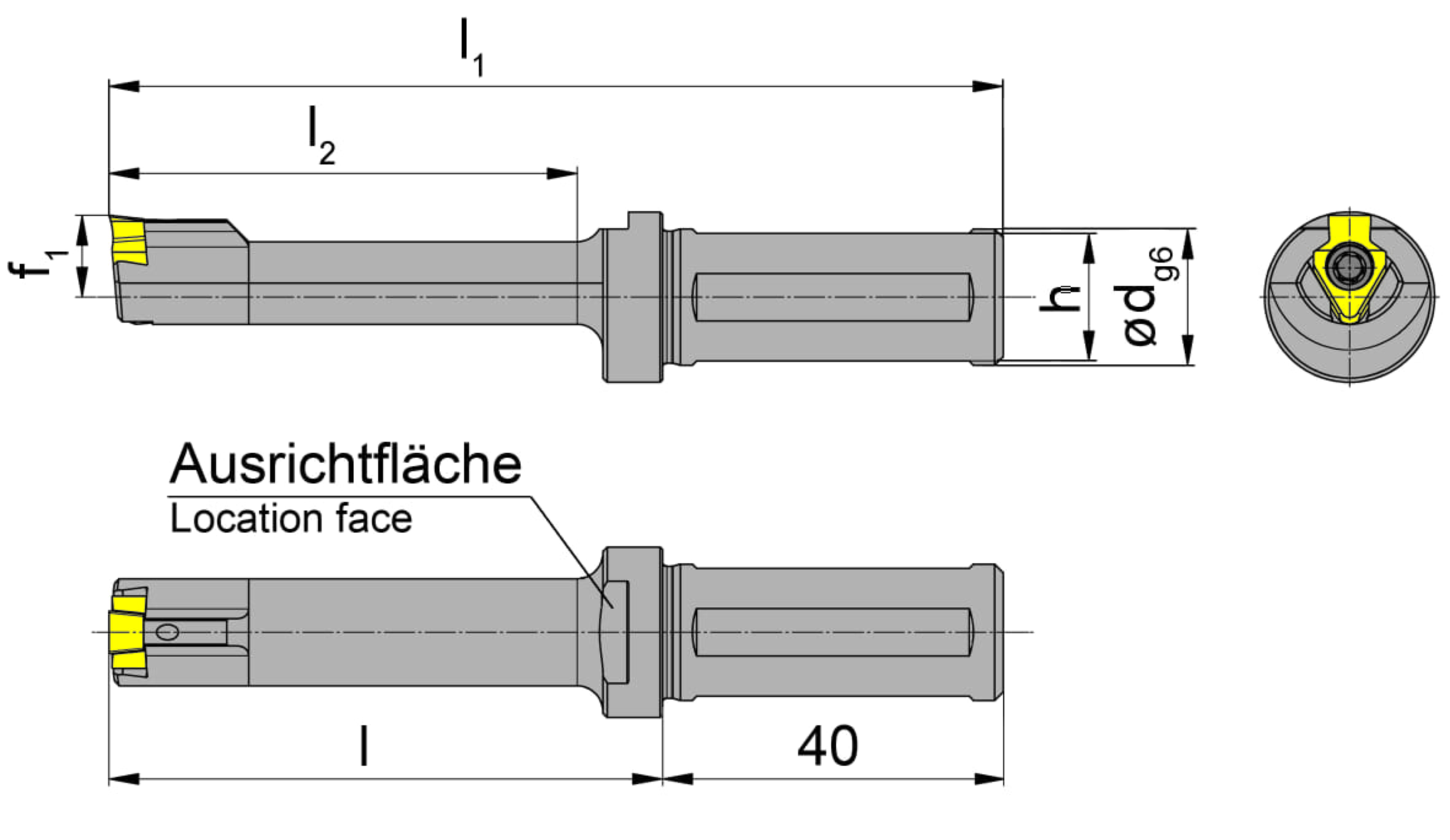

| Clamping_ shank diameter (d) | 16 |
|---|---|
| Form _Form_ | F |
| Height clamping surface(s) (h) | 15 |
| Length from bore (l) | 65 |
| Minimum drilling diameter (Dmin) | 14 |
| Outcropping, neck, working length (l2) | 55 |
| Total length (including cutting insert) (l1) | 105 |
| Total length (l) | 105 |
| Working length (l2) | 55 |
