Basic toolholder VDI...C with IC for square shank (star turrets)

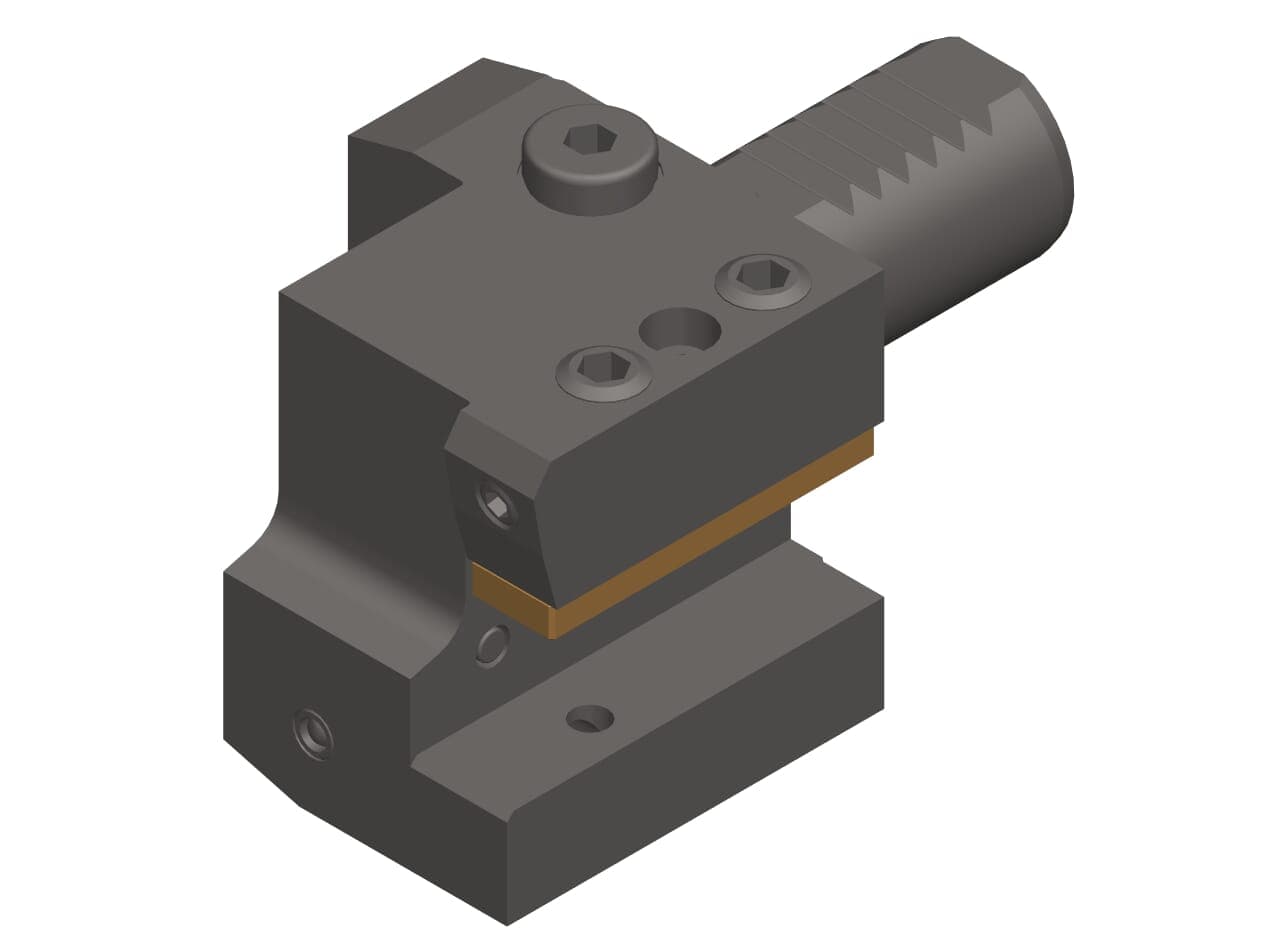

1 / 2: HORN VDI25.C1.16.IK
Face grooving
Parting-off
External grooving
External side turning
Henter tekniske filer …
Kategorier:Basic toolholder VDI...C with IC for square shank (star turrets)
Henter matchende værktøj…
| Clamping diameter (d) | 25 |
|---|---|
| Dimension center to lower side of holder (h6) | 30 |
| Dimension center to outer edge holder (b2) | 33 |
| Dimension center to upper side of holder (h5) | 25 |
| Flange thickness (l3) | 20 |
| Form (Ausführung) | C1 |
| Locating face tool (b6) | 19 |
| Shank height (h1) | 16 |
| Shank height without clamping element (h2) | 22 |
| System (System) | VDI25 |
| basic holder width met | 58 |
