Basic toolholder VDI...B with IC for square shank (turrets)

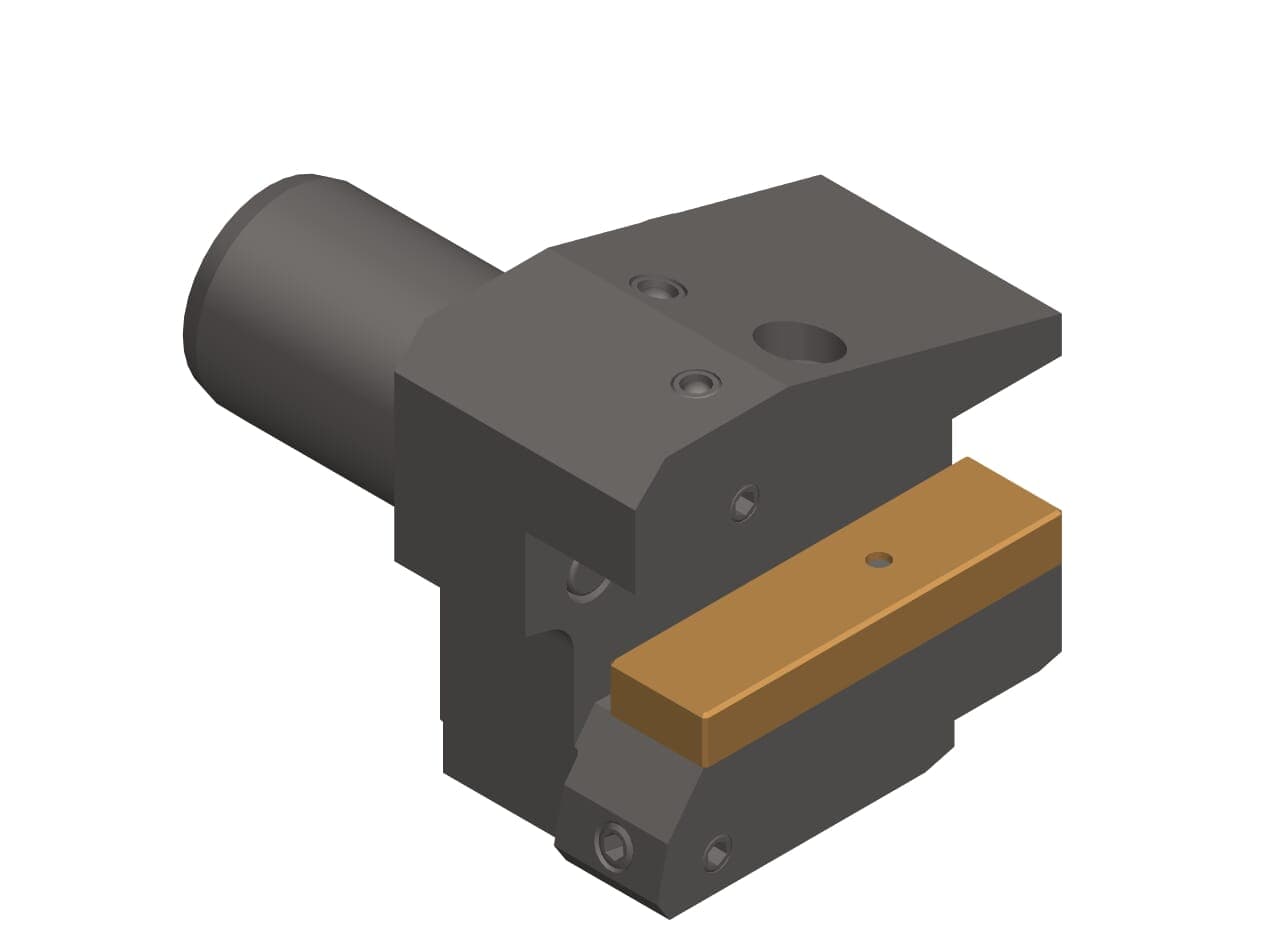

1 / 2: HORN VDI30.B1.20.40 IK
Face grooving
Parting-off
External grooving
External side turning
Henter tekniske filer …
Kategorier:Basic toolholder VDI...B with IC for square shank (turrets)
Henter matchende værktøj…
| Clamping diameter (d) | 30 |
|---|---|
| Cutting insert width (b2) | 35 |
| Dimension center to lower side of holder (h6) | 38 |
| Dimension center to upper side of holder (h5) | 28 |
| Form (Ausführung) | B1 |
| Length of base from bore (l1) | 40 |
| Shank height (h1) | 20 |
| Shank height without clamping element (h2) | 29 |
| System (System) | VDI30 |
| Total length (b1) | 70 |
