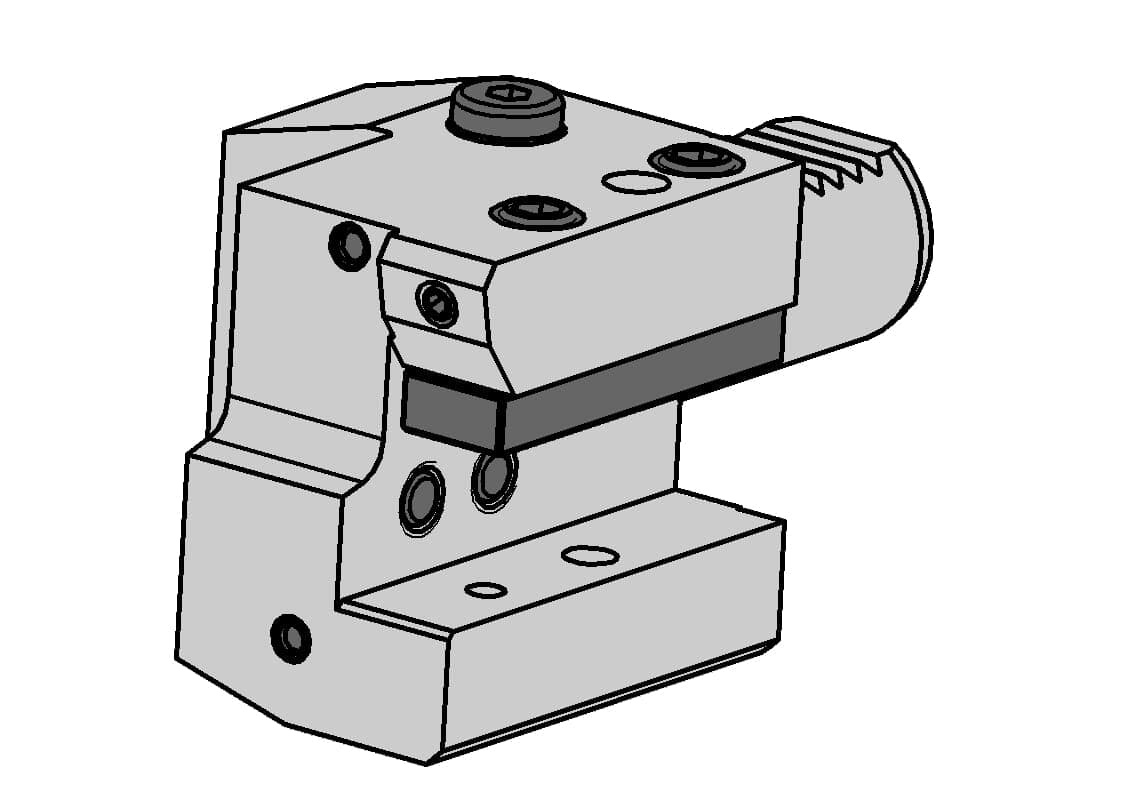

Basic toolholder VDI...C with IC for square shank (star turrets)

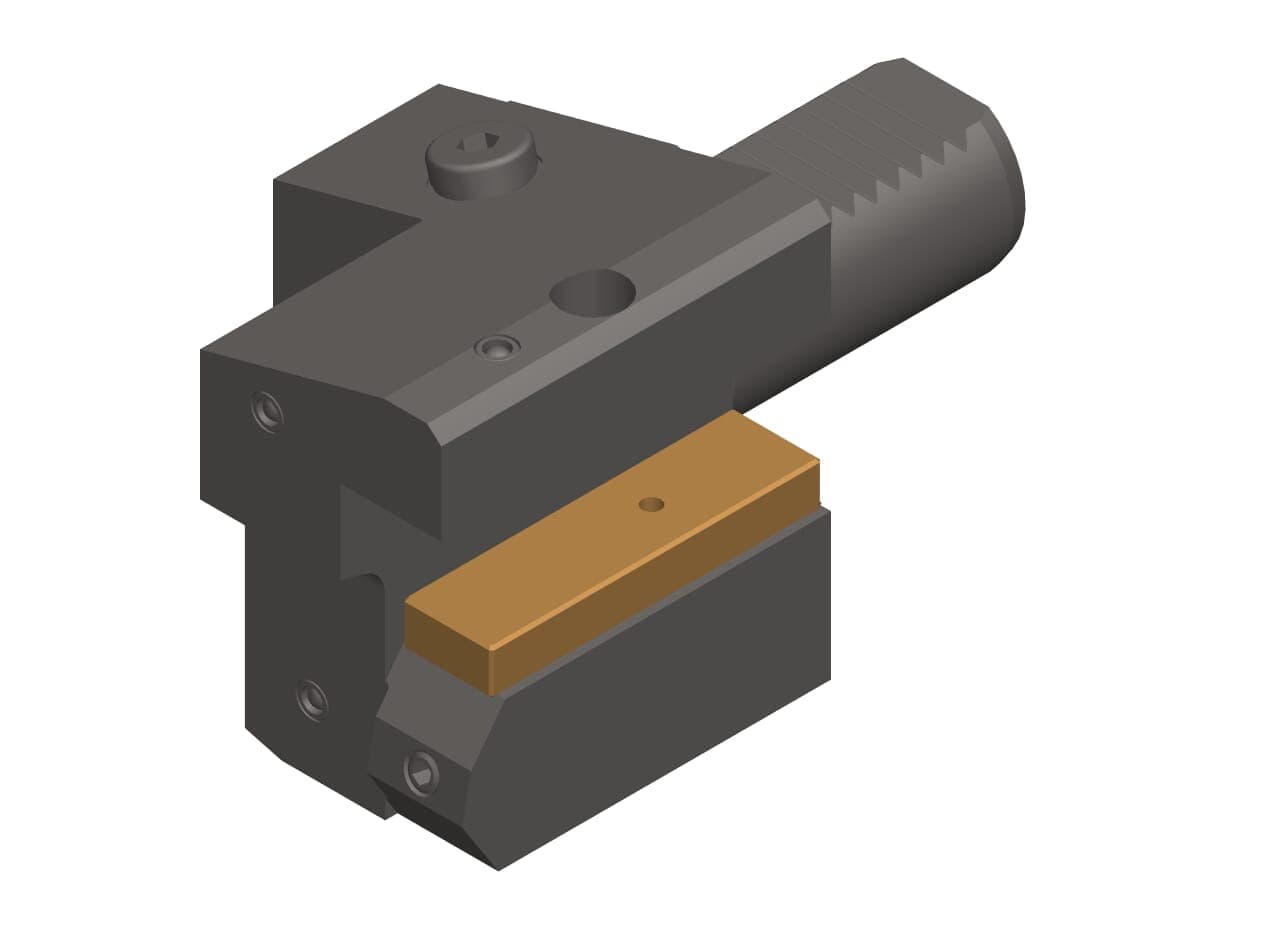

1 / 2: HORN VDI30.C3.20.IK
Face grooving
Parting-off
External grooving
External side turning
Henter tekniske filer …
Kategorier:Basic toolholder VDI...C with IC for square shank (star turrets)
Henter matchende værktøj…
| Clamping diameter (d) | 30 |
|---|---|
| Dimension center to lower side of holder (h6) | 38 |
| Dimension center to outer edge holder (b2) | 35 |
| Dimension center to upper side of holder (h5) | 35 |
| Flange thickness (l3) | 30 |
| Form (Ausführung) | C3 |
| Locating face tool (b6) | 17 |
| Shank height (h1) | 20 |
| Shank height without clamping element (h2) | 29 |
| System (System) | VDI30 |
| basic holder width met | 70 |
