Basic toolholder VDI...C with IC for square shank (star turrets)
1 / 2: HORN VDI40.C2.25.IK
Face grooving
Parting-off
External grooving
External side turning
Henter tekniske filer …
Kategorier:Basic toolholder VDI...C with IC for square shank (star turrets)
Henter matchende værktøj…

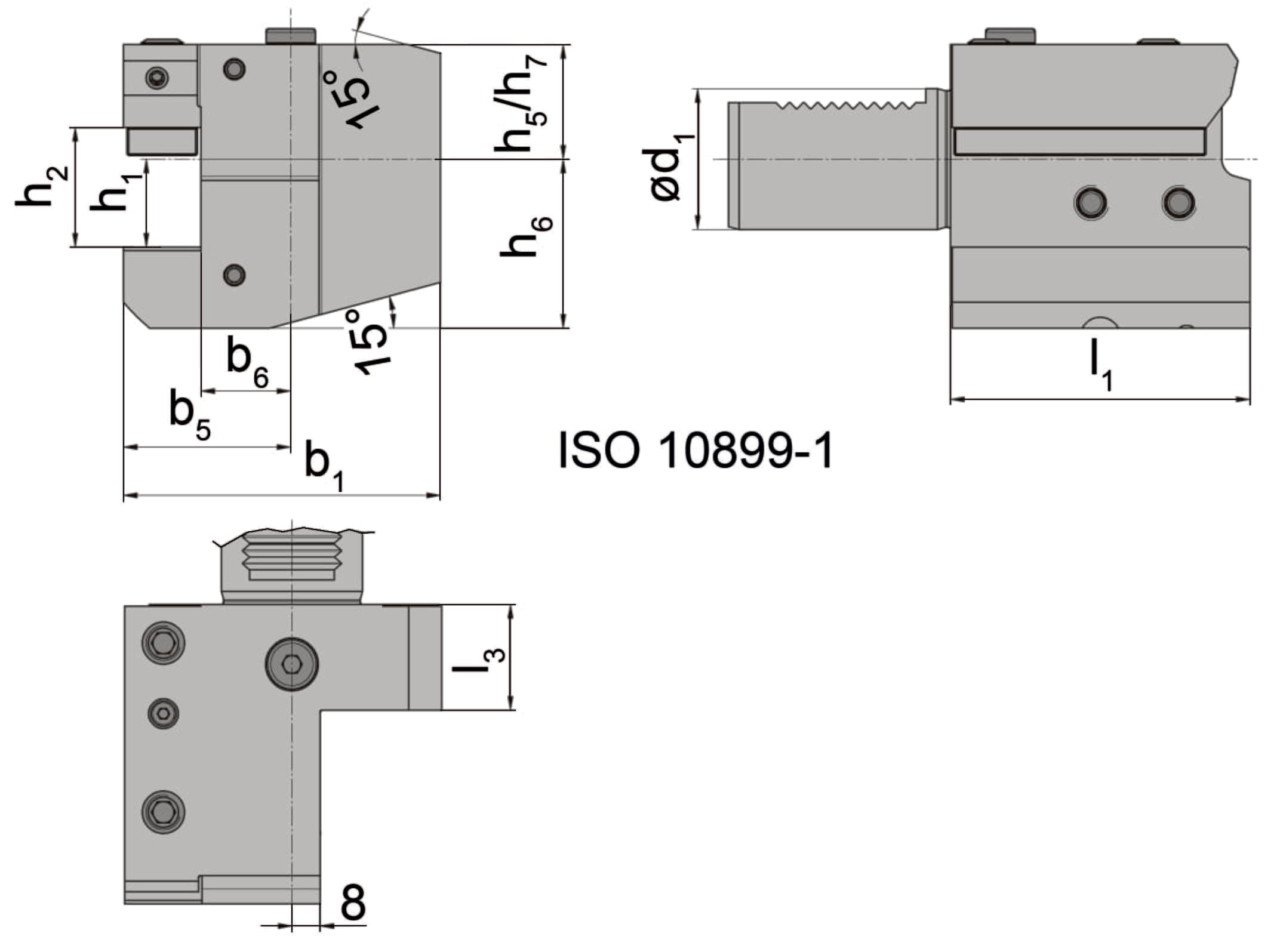

| Clamping diameter (d) | 40 |
|---|---|
| Dimension center to lower side of holder (h6) | 48 |
| Dimension center to upper side of holder (h5) | 32.5 |
| Flange thickness (l3) | 30 |
| Form (Ausführung) | C2 |
| Shank height (h1) | 25 |
| Shank height without clamping element (h2) | 34 |
| System (System) | VDI40 |
| Total length from bore (l1) | 85 |
| basic holder width met | 90 |
