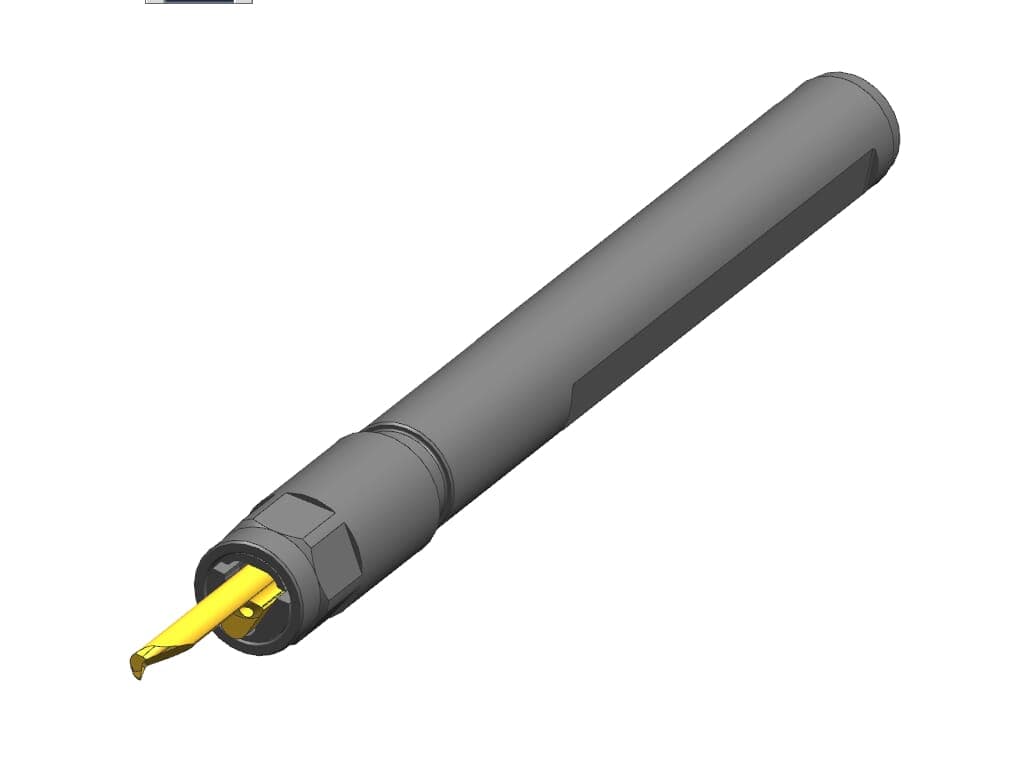

HORN B105.0010.9.01 MAX Ø3 105 · JR Tool

HORN B105.0010.9.01 MAX Ø3 105 · JR Tool

Clamping_ shank diameter (d)	10
Head diameter (d2)	11
Height clamping surface(s) (h)	9
Key range (SW)	10
Length of clamping surface(s) (l3)	50
Shank, clamping diameter (d)	10
Total length (without cutting insert) (l1)	100
Width of blank (b)	5.9
