Toolholder round shank System B114
1 / 2: HORN B114.0012.2.00
Face grooving
Internal boring
Internal grooving
Internal coolingHenter tekniske filer …
Kategorier:Toolholder round shank System B114
Henter matchende værktøj…

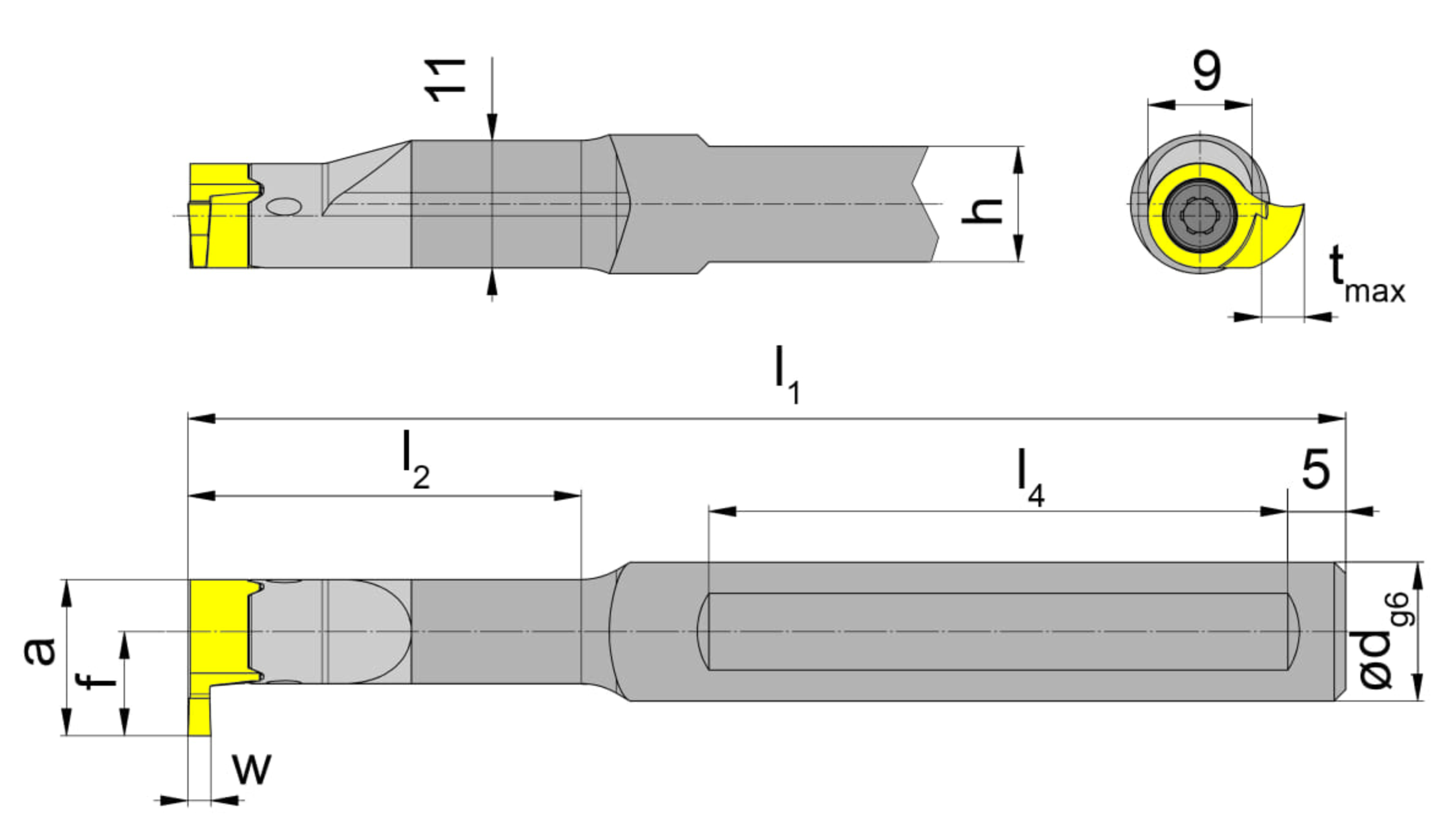

| Clamping_ shank diameter (d) | 12 |
|---|---|
| Height clamping surface(s) (h) | 11 |
| Length of clamping surface(s) (l3) | 40 |
| Outcropping, neck, working length (l2) | 19.5 |
| Shank, clamping diameter (d) | 12 |
| Total length (including cutting insert) (l1) | 75 |
| Total length (l) | 75 |
| Working length (l2) | 19.5 |
