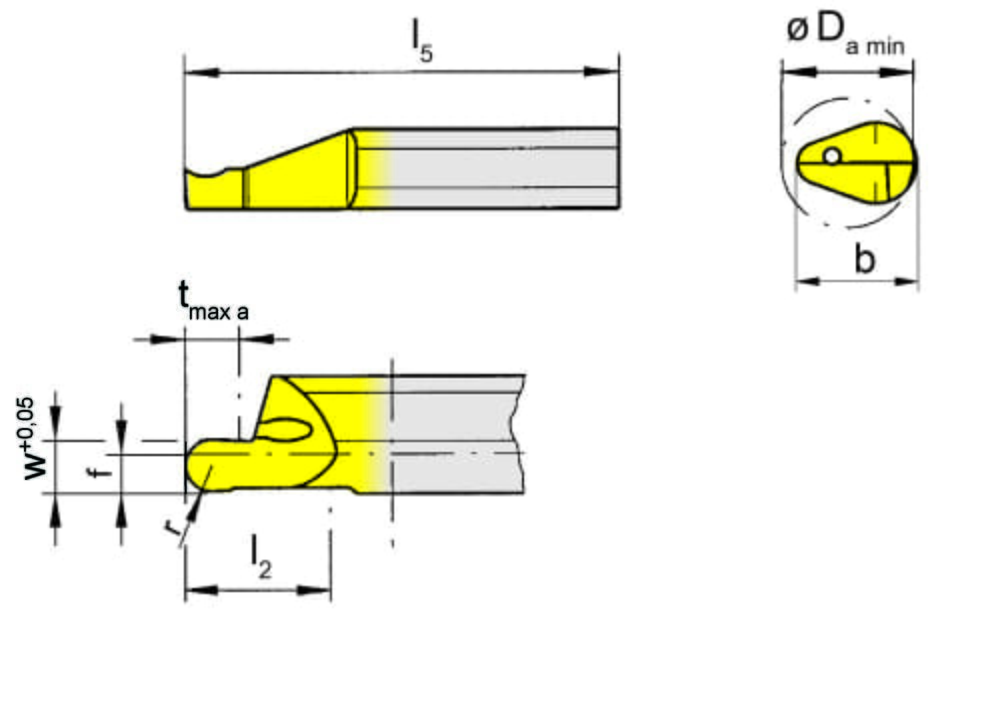

Inserts type 105 for face grooving groove outside diameter from 8 mm full radius

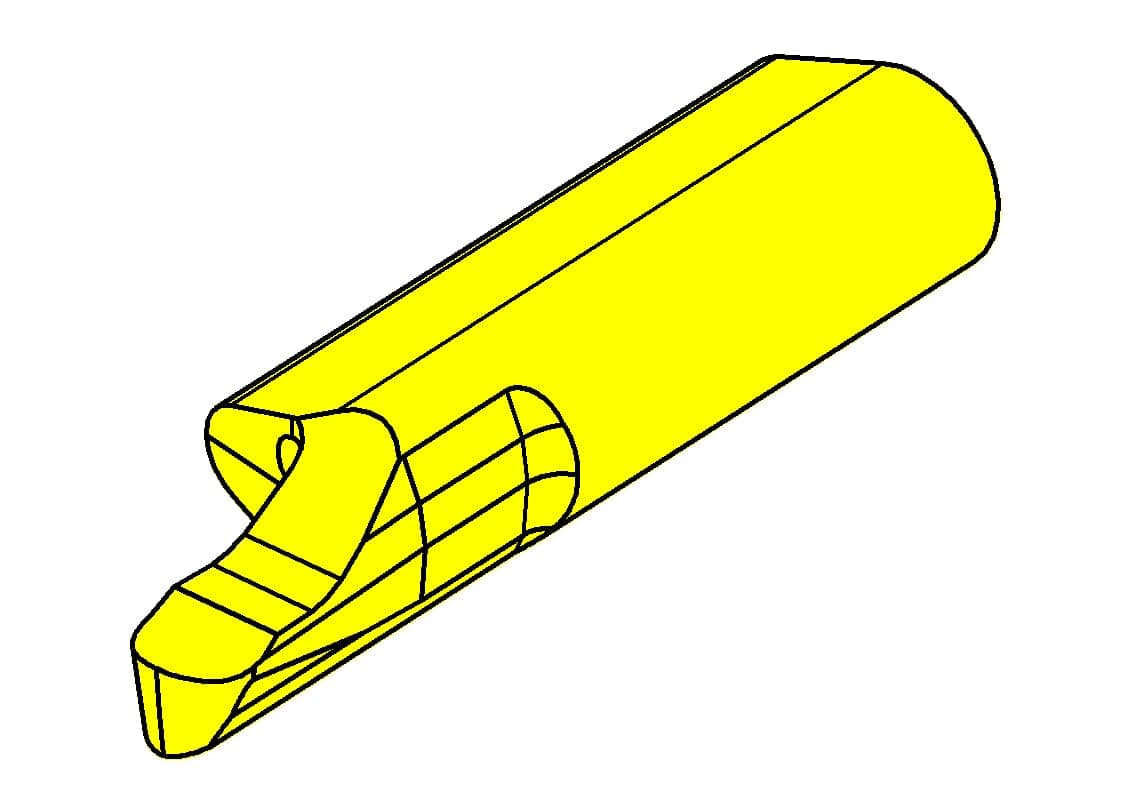

1 / 2: HORN L105.8V20.2.8 TI25
Face grooving
Internal face grooving in front of center
Internal cooling| Full radius (r) | 1 |
|---|---|
| Maximum depth of groove (tmax a) |
Henter tekniske filer …
Kategorier:Inserts type 105 for face grooving groove outside diameter from 8 mm full radius
Henter matchende værktøj…
| 4 |
| Neck length (l2) | 15 |
|---|
| Smallest axial bore diameter (Dmin) | 8 |
|---|
| Total length (l) | 35 |
|---|
| Total length (l5) | 35 |
|---|
| Width of blank (b) | 7 |
|---|
| Width of groove (w) | 2 |
|---|
