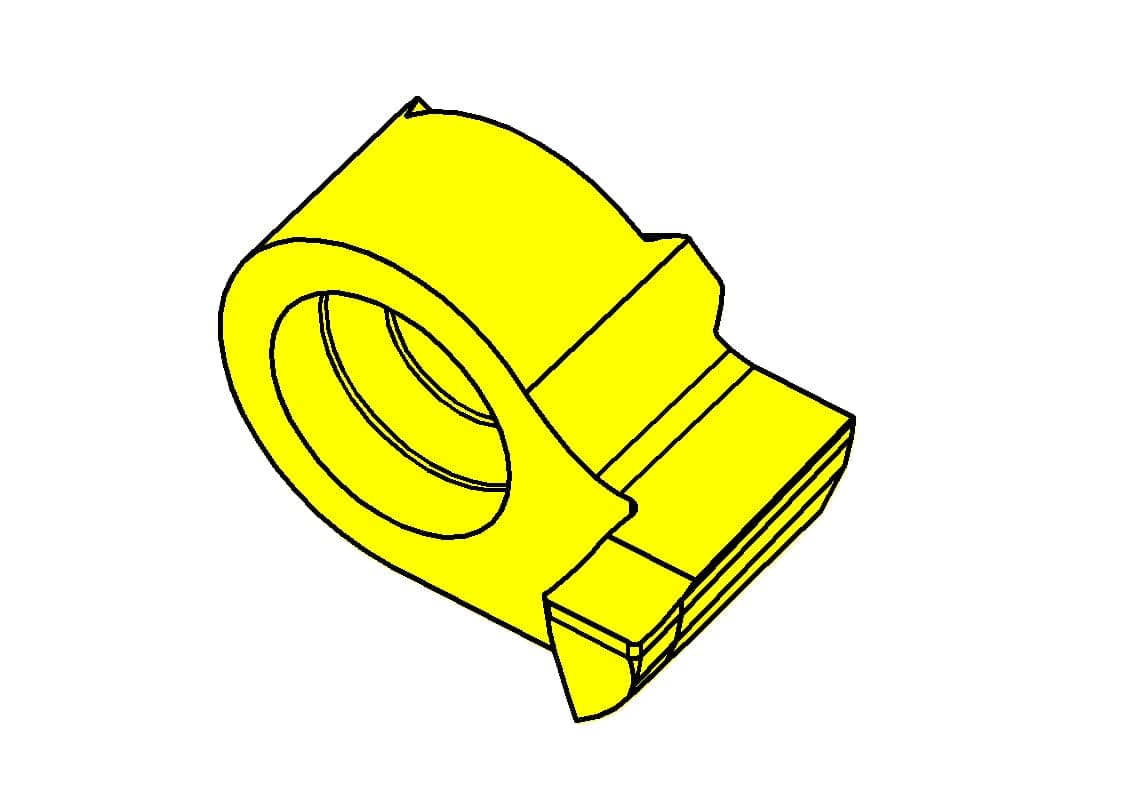

Inserts type 114 for face grooving groove outside diameter from 14 mm
1 / 2: HORN L114.1415.00 TN35
Face grooving| Corner radius (r) | 0.2 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 8.3 |
| Head size (a) | 13.5 |
| Maximum depth of groove (tmax a) | 2.5 |
| Smallest axial bore diameter (Dmin) | 14 |
| Width of groove (w) | 1.5 |
Lagerstatus og købsmuligheder kontrolleres …
Henter tekniske filer …
Kategorier:Inserts type 114 for face grooving groove outside diameter from 14 mm
