Inserts type 114 for face grooving groove outside diameter from 14 mm
1 / 2: HORN L114.1420.5.00 TN35

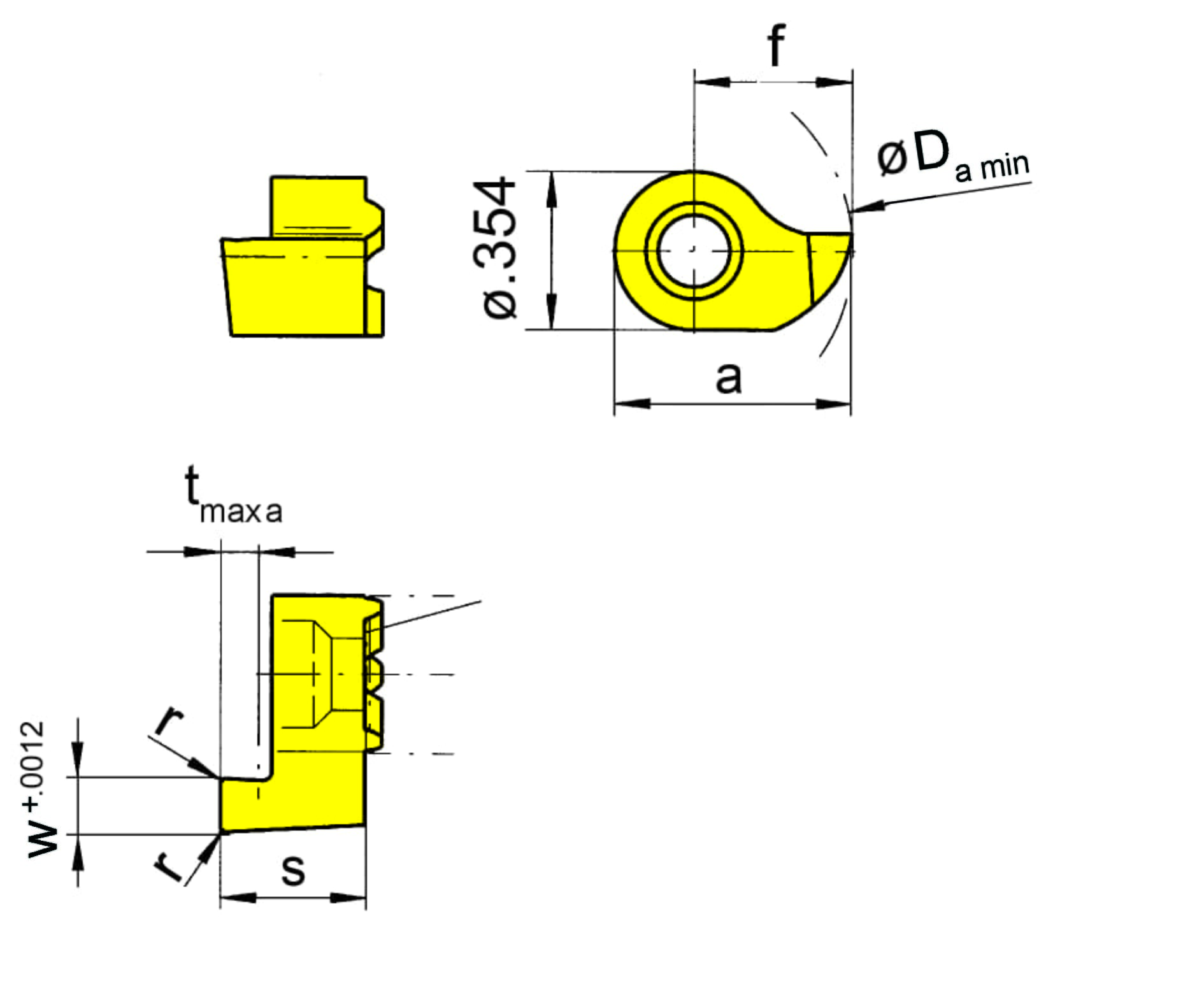

Face grooving| Corner radius (r) | 0.2 |
|---|---|
| Cutting insert height, Cutting insert thickness (s) | 10.8 |
| Head size (a) | 13.5 |
| Maximum depth of groove (tmax a) | 5 |
| Smallest axial bore diameter (Dmin) | 14 |
| Width of groove (w) | 2 |
