1 / 2: HORN L368.1212.11

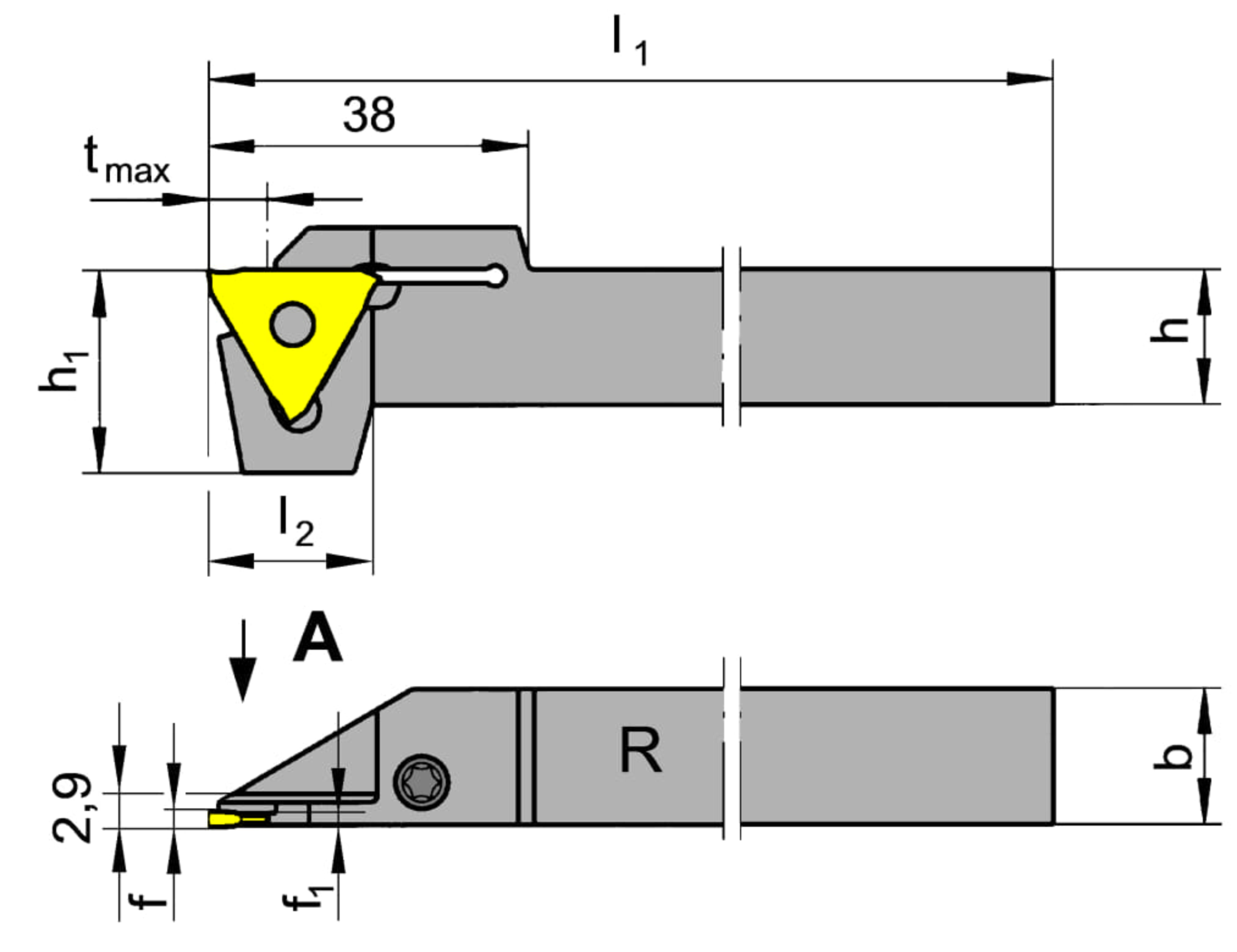

Parting-off| Adjustment dimension locating face insert (f1) | 1.3 |
|---|---|
| Head length (including cutting edge) (l2) | 19.5 |
| Maximum depth of groove (tmax) | 8 |
| Peak height (h1) | 24 |
| Shank height (h) | 12 |
| Shank width (b) | 12 |
| Total length (including cutting insert) (l1) | 95 |
Henter tekniske filer …
Kategorier:System 368
Henter matchende værktøj…
| Total length (l) |
|---|
| 95 |
