Inserts type A105 for face grooving groove outside diameter from 10 mm

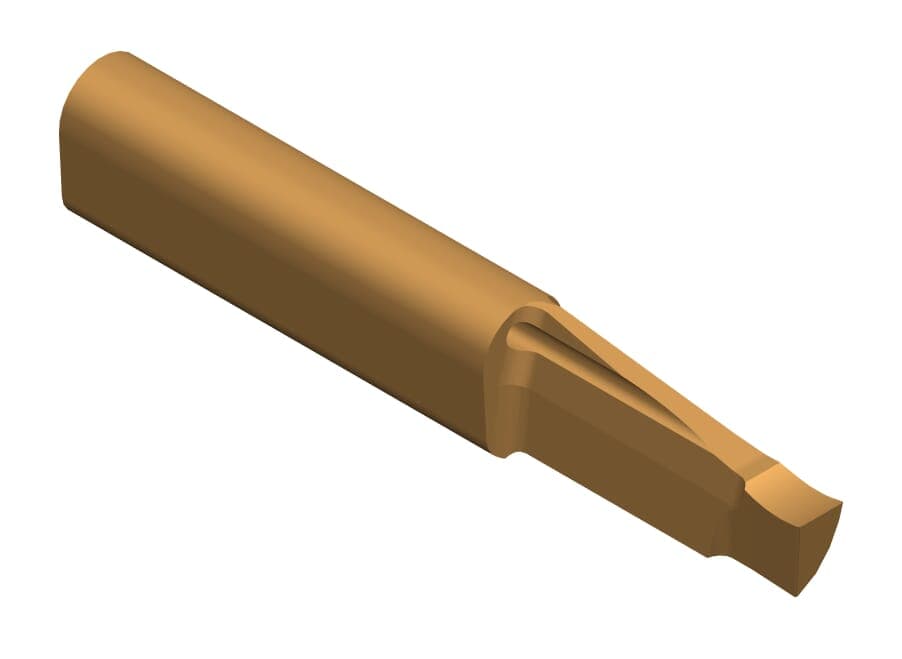

1 / 2: HORN LA105.1025.2.2 EG35

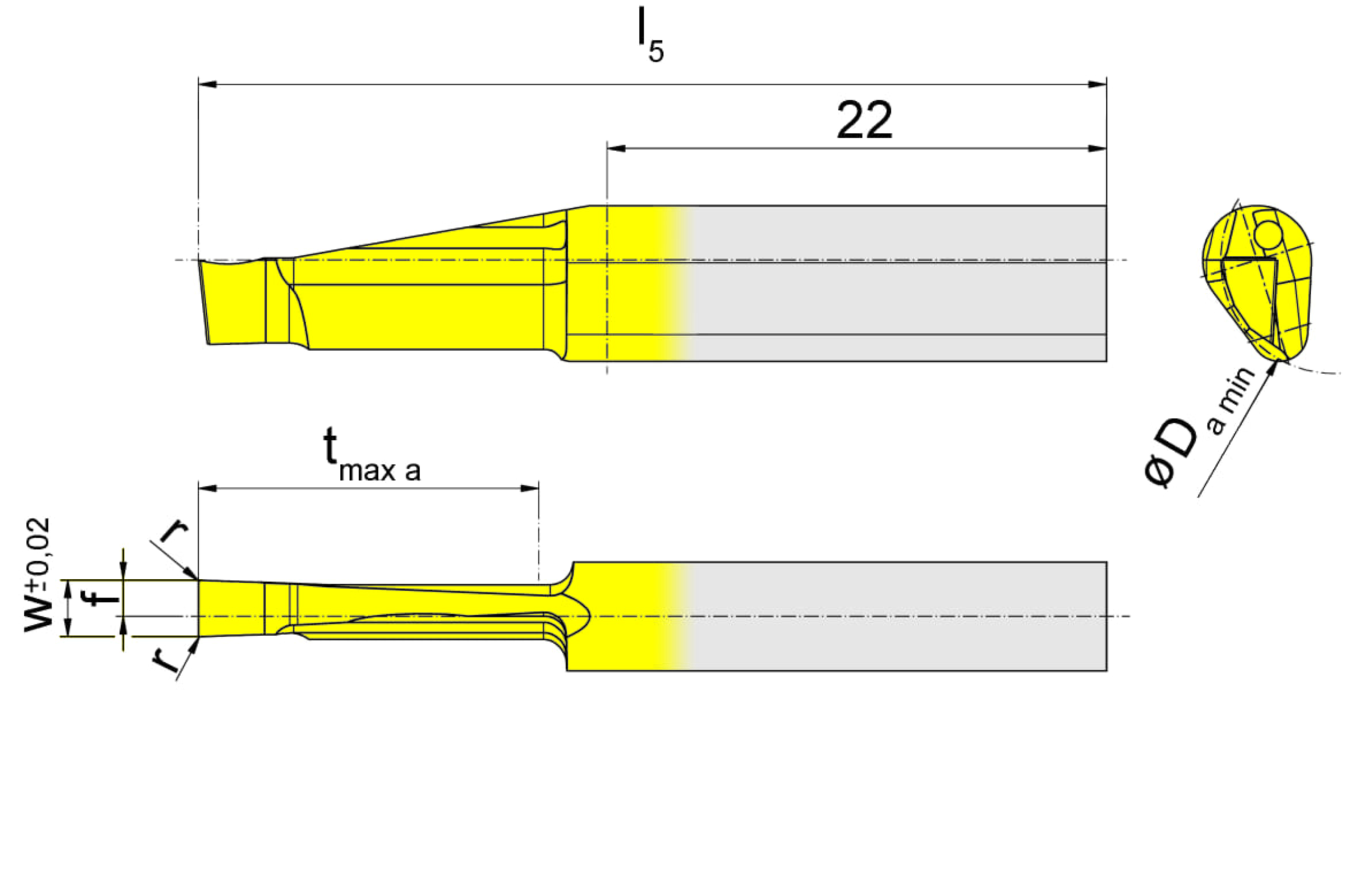

Face grooving| Corner radius (r) | 0.1 |
|---|---|
| Maximum depth of groove (tmax a) | 15 |
| Maximum starting outside diameter (Dmax) | 45 |
| Smallest axial bore diameter (Dmin) | 10 |
| Total length (l) | 40 |
| Total length (l5) | 40 |
| Width of groove (w) | 2.5 |
Lagerstatus og købsmuligheder kontrolleres …
Henter tekniske filer …
Kategorier:Inserts type A105 for face grooving groove outside diameter from 10 mm
