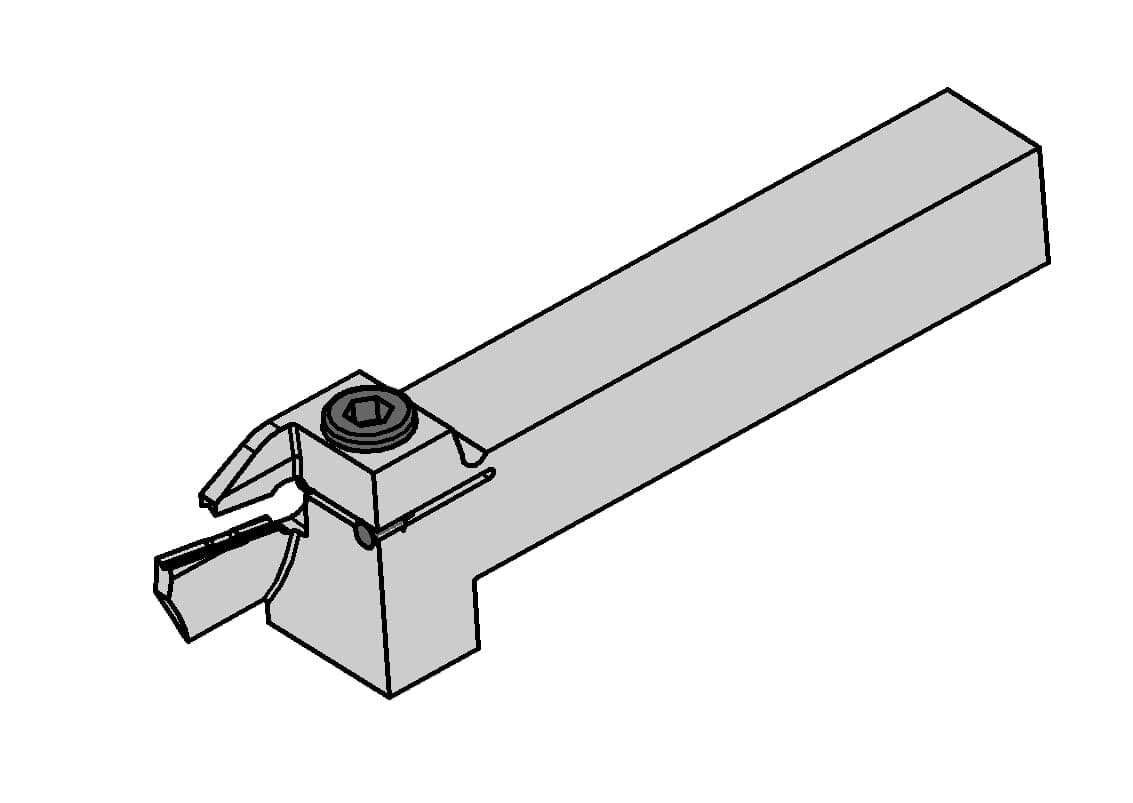

Toolholder LA/RA 226 for face grooving
1 / 2: HORN LA226.25.9513.05
Face grooving

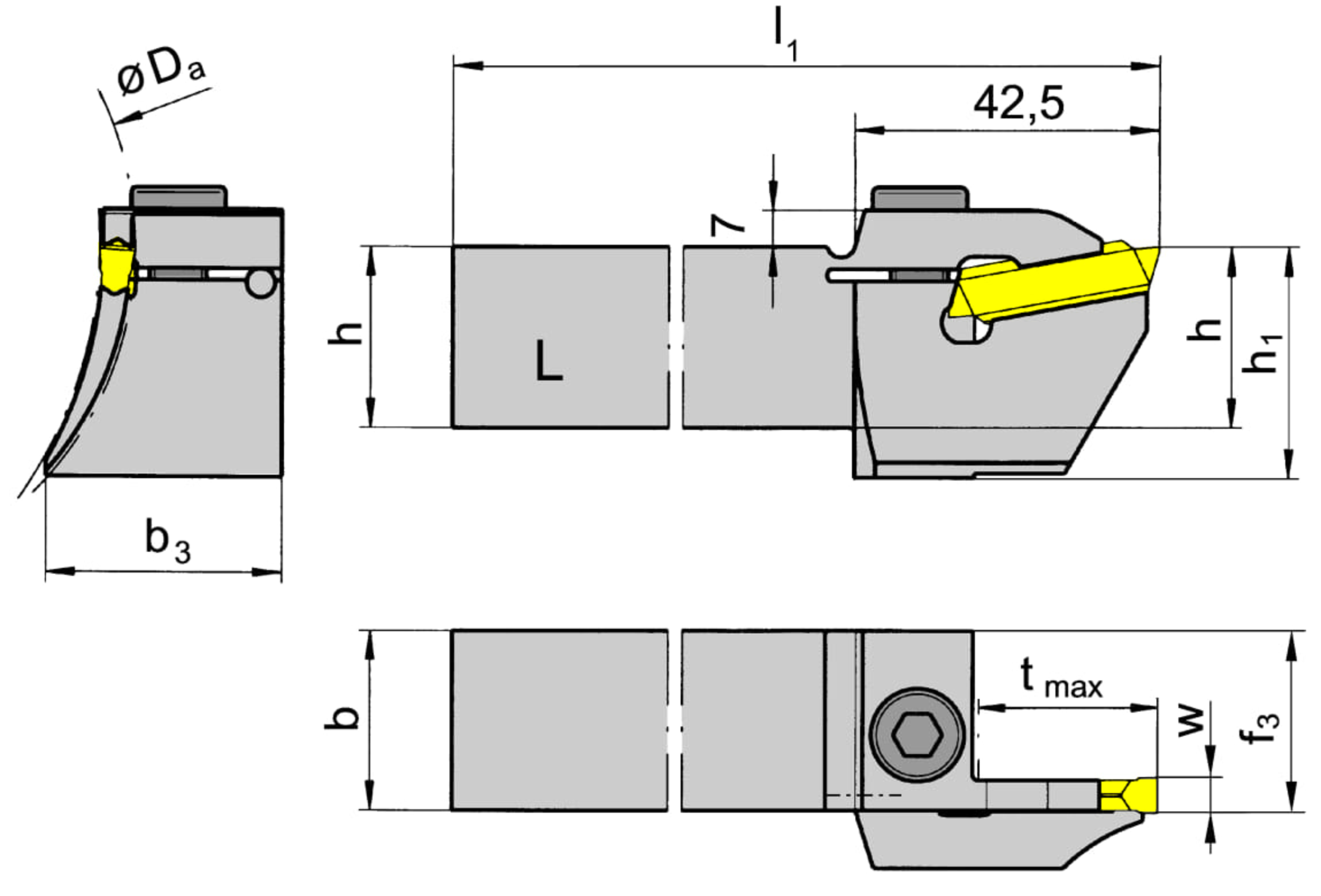

Face grooving with collar| Head width bottom (b3) | 33 |
|---|---|
| Maximum insertion depth (tmax a) | 25 |
| Maximum starting outside diameter (Da min2) | 130 |
| Minimum starting outside diameter (Da min) | 95 |
| Peak height (h1) |
Henter tekniske filer …
Kategorier:Toolholder LA/RA 226 for face grooving
Henter matchende værktøj…
| 32 |
| Shank height (h) | 25 |
|---|
| Shank width (b) | 25 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
| Width of groove (w) | 5 |
|---|
