HORN LAK224.6075.03.IK · JR Tool

Cassette 224 LAK/RAK with IC for face grooving

HORN LAK224.6075.03.IK

Varenr.: HLAK224607503IK

HORN LAK224.6075.03.IK

Tekniske billeder


Face grooving
Face grooving and side turning
Face grooving with collar

Targeted coolant

Tekniske filer

Henter tekniske filer …

Kategorier:Cassette 224 LAK/RAK with IC for face grooving

Matchende værktøj

Henter matchende værktøj…

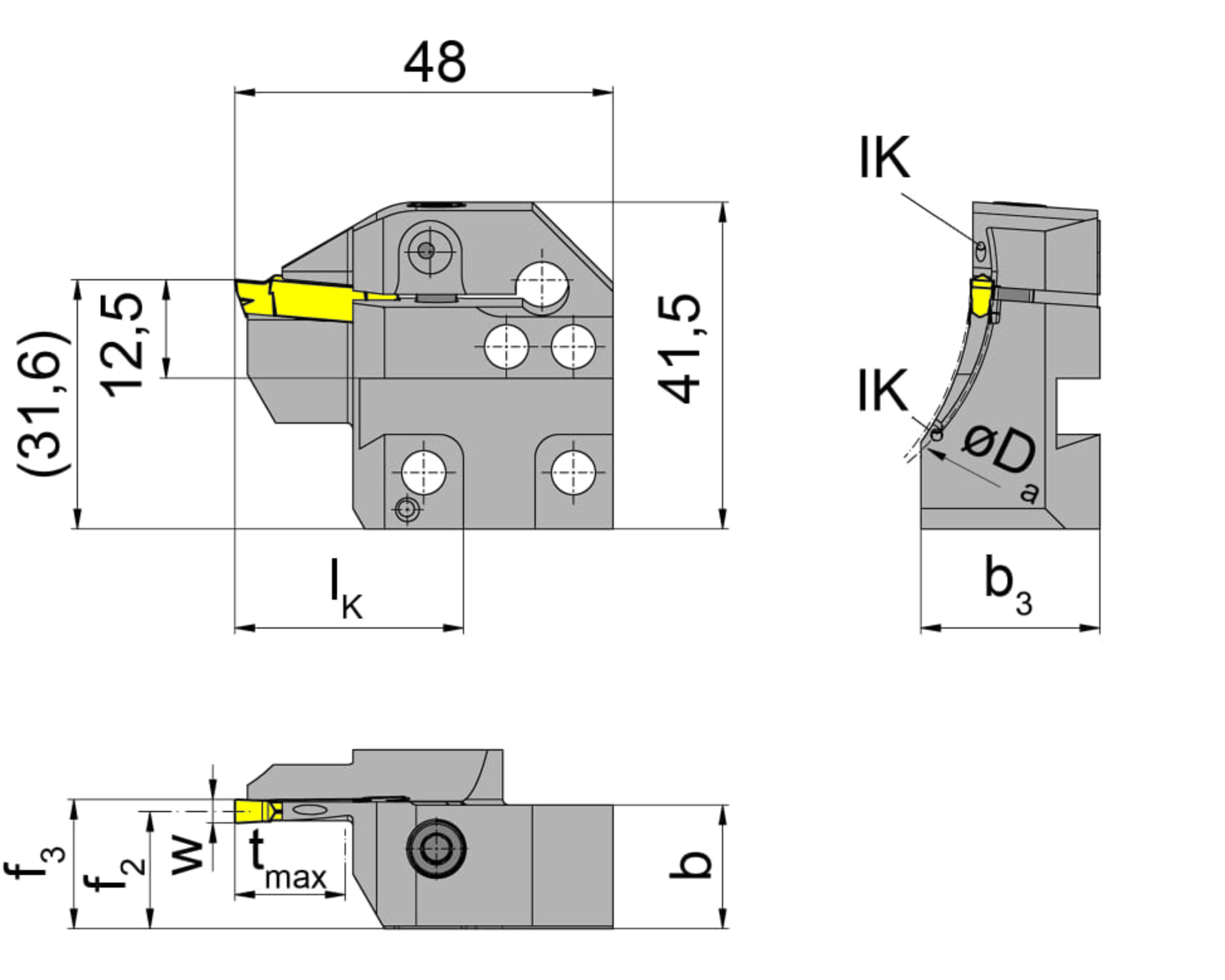

Adjustment dimension of system cassette form(f3)	f2+w/2
Maximum starting outside diameter (Dmax)	75
Maximum depth of groove (tmax)	14
Minimum starting outside diameter (Da min)	60
Width (b)	15.7
Width of groove (w)	3
