1 / 2: HORN LB224.4520.0.02

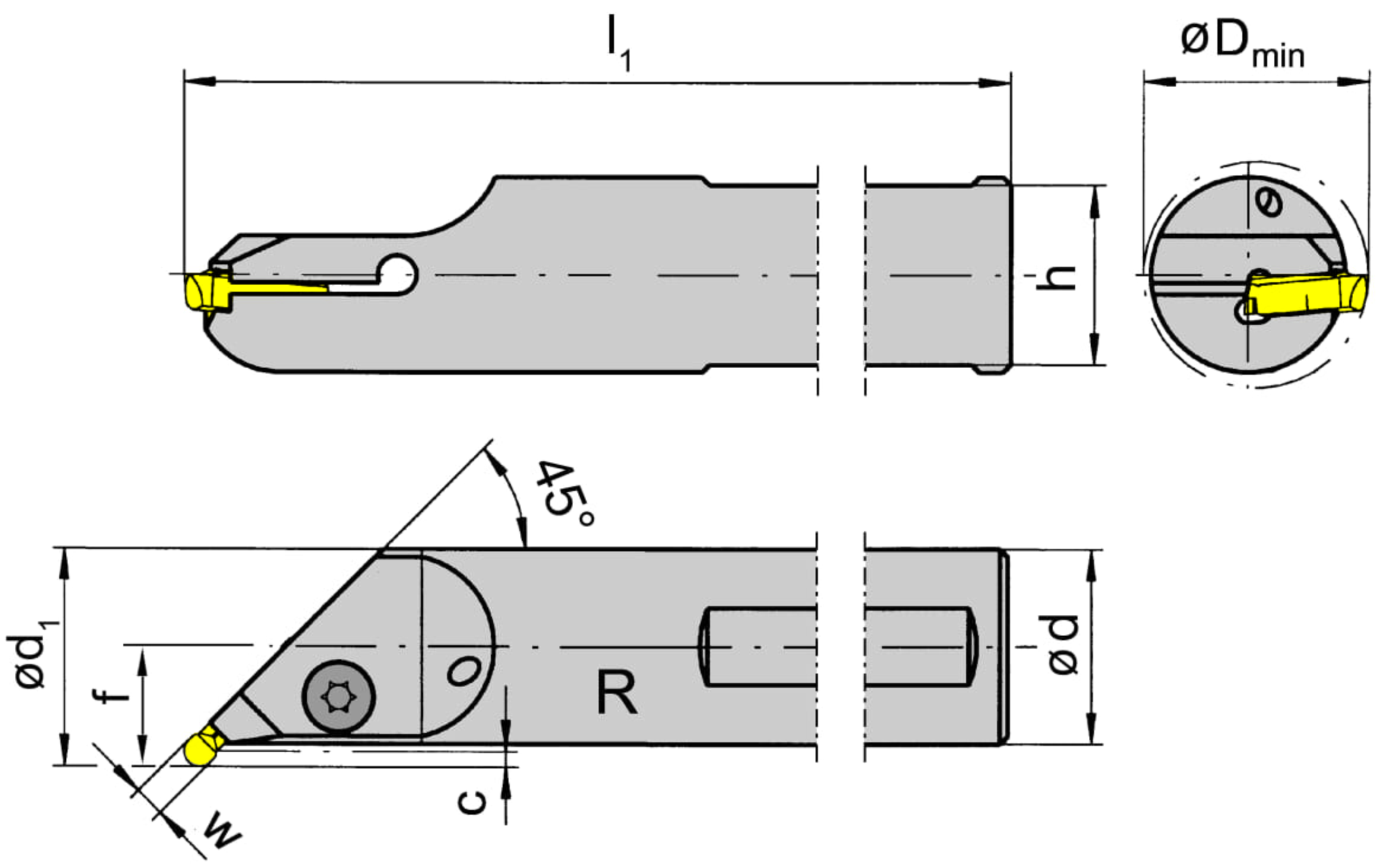

Internal corner grooving
Internal cooling| Clamping diameter (d) | 20 |
|---|---|
| Cutting width maximum (Schneidbreite) | 2.8 |
| Cutting width minimum (b1) | 2 |
| Diameter (d1) | 23 |
| Distance of clamping surface (s) (h) |
Henter tekniske filer …
Kategorier:Toolholder System B224
Henter matchende værktøj…
| 18 |
| Head diameter (d1) | 23 |
|---|
| Minimum drilling diameter (Dmin) | 25 |
|---|
| Total length (including cutting insert) (l1) | 130 |
|---|
| Total length (l) | 130 |
|---|
| cutting width min met | 2 |
|---|
