HORN LH224.1212.20.61 IK · JR Tool

HORN LH224.1212.20.61 IK · JR Tool

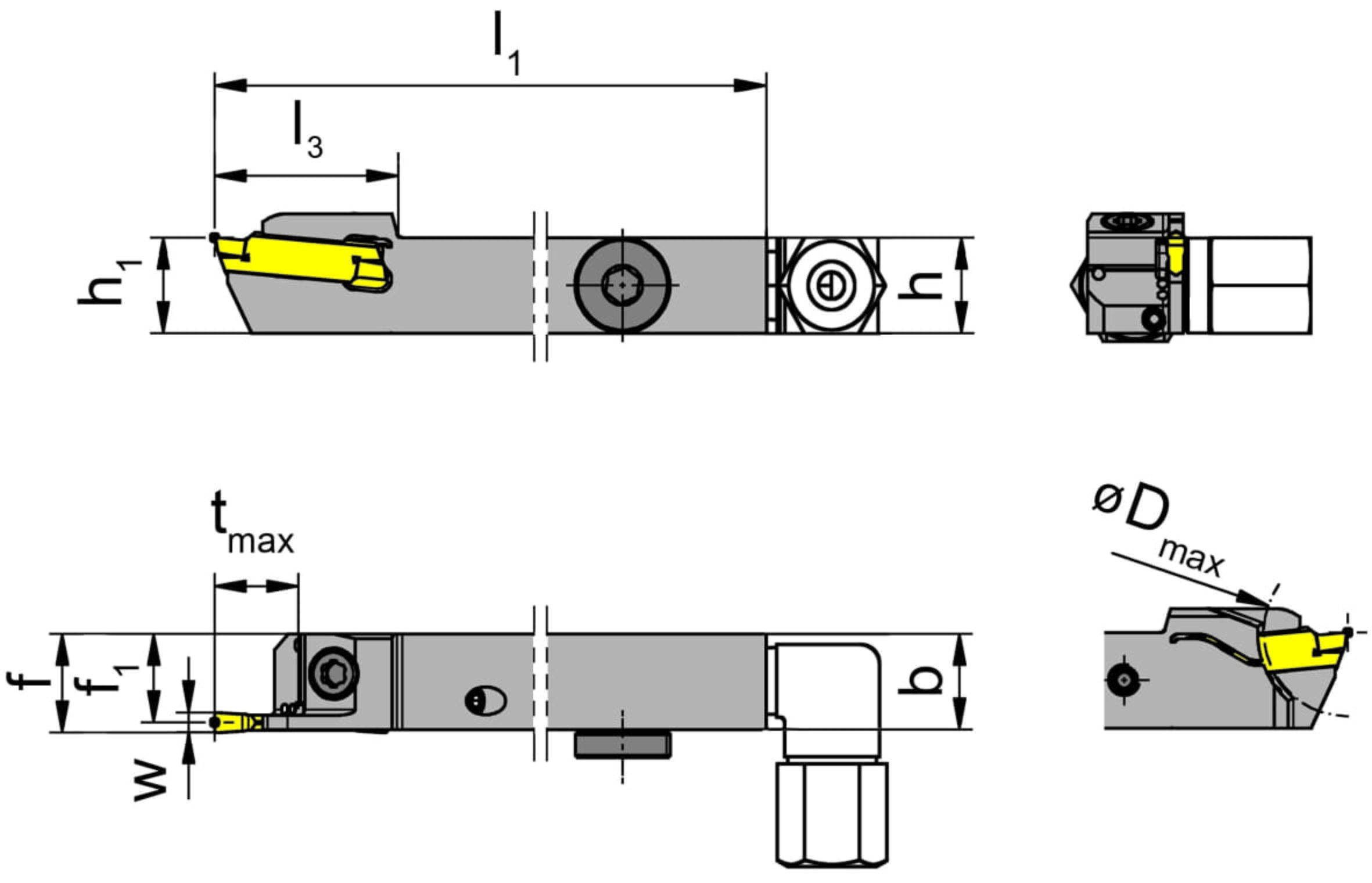

Clamping range maximum (Spannbereich)	2.4
Clamping range minimum (Spannbereich)	2
Head length top _including cutting edge_ (l2)	23
Maximum insertion depth (tmax a)	10.5
Maximum workpiece diameter (Da min)	21
Peak height (h1)	12
Plating seat size (Größe)	1
Shank height (h)	12
Shank width (b)	12
Total length (including cutting insert) (l1)	100
Total length (l)	100
