System H224 with IC variant "spray"

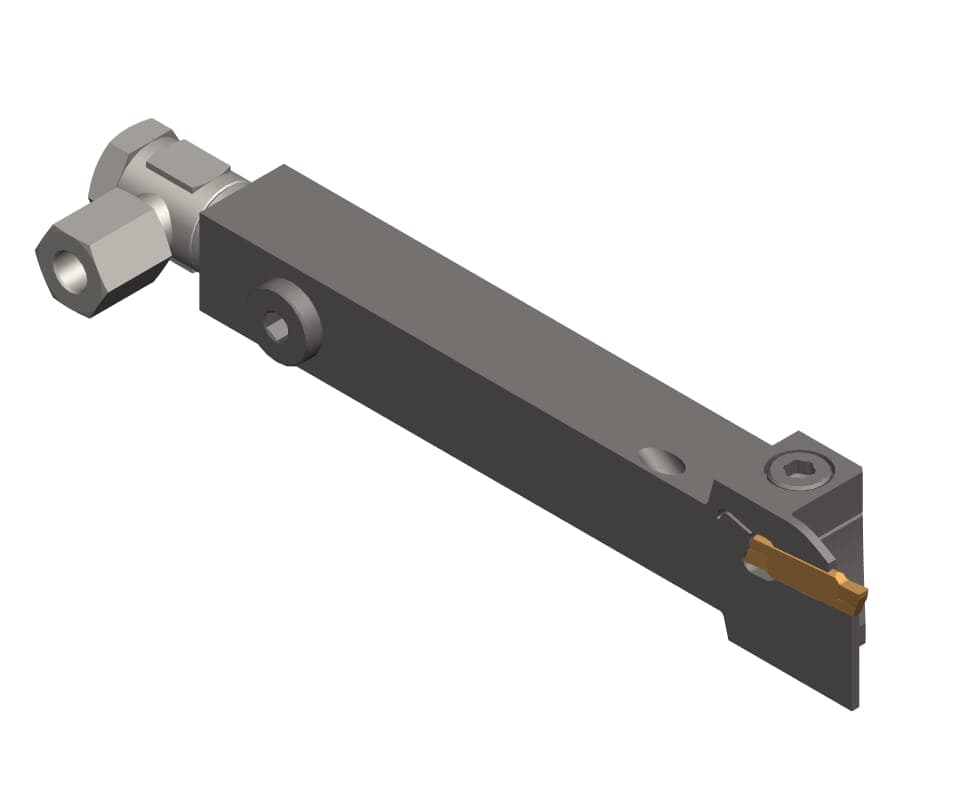

1 / 2: HORN LH224.1616.01.IK
Grooving and side turning
Parting-off
External grooving
Internal coolingHenter tekniske filer …
Kategorier:System H224 with IC variant "spray"
Henter matchende værktøj…
| Clamping range maximum (Spannbereich) | 2.4 |
|---|---|
| Clamping range minimum (Spannbereich) | 2 |
| Head length (including cutting edge) (l2) | 25 |
| Maximum insertion depth (tmax a) | 14 |
| Maximum workpiece diameter (Da min) | 80 |
| Peak height (h1) | 20 |
| Plating seat size (Größe) | 1 |
| Shank height (h) | 16 |
| Shank width (b) | 16 |
| Total length (including cutting insert) (l1) | 125 |
| Total length (l) | 125 |
