System H224 with IC variant "spray"
Grooving and side turning
Parting-off
External grooving
Internal coolingHenter tekniske filer …
Kategorier:System H224 with IC variant "spray"
Henter matchende værktøj…

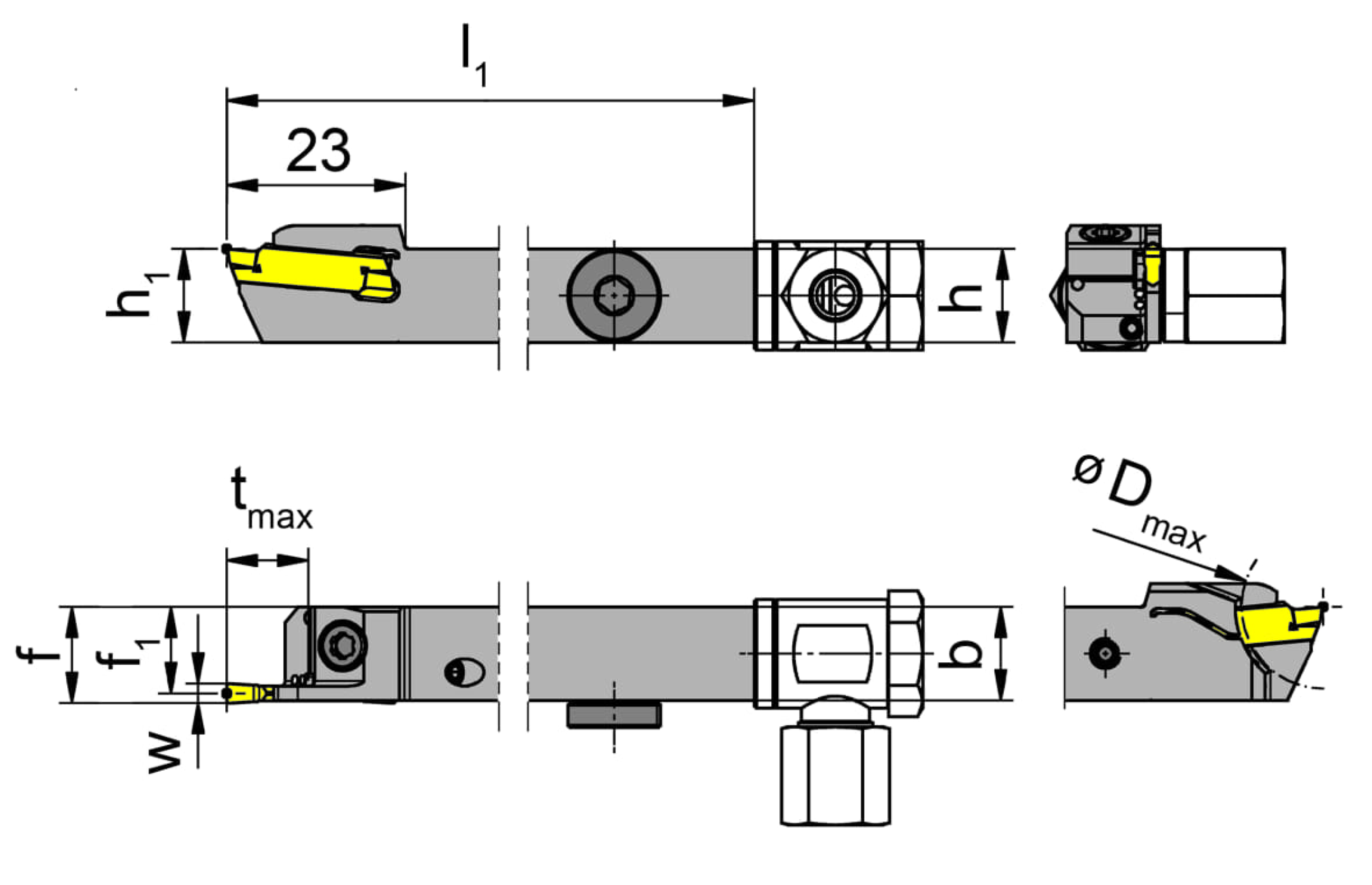

| Clamping range maximum (Spannbereich) | 3.7 |
|---|---|
| Clamping range minimum (Spannbereich) | 2.8 |
| Maximum insertion depth (tmax a) | 7 |
| Maximum workpiece diameter (Da min) | 100 |
| Peak height (h1) | 16 |
| Plating seat size (Größe) | 3 |
| Shank height (h) | 16 |
| Shank width (b) | 16 |
| Total length (including cutting insert) (l1) | 100 |
| Total length (l) | 100 |
