Toolholder H264 for grooving and boring

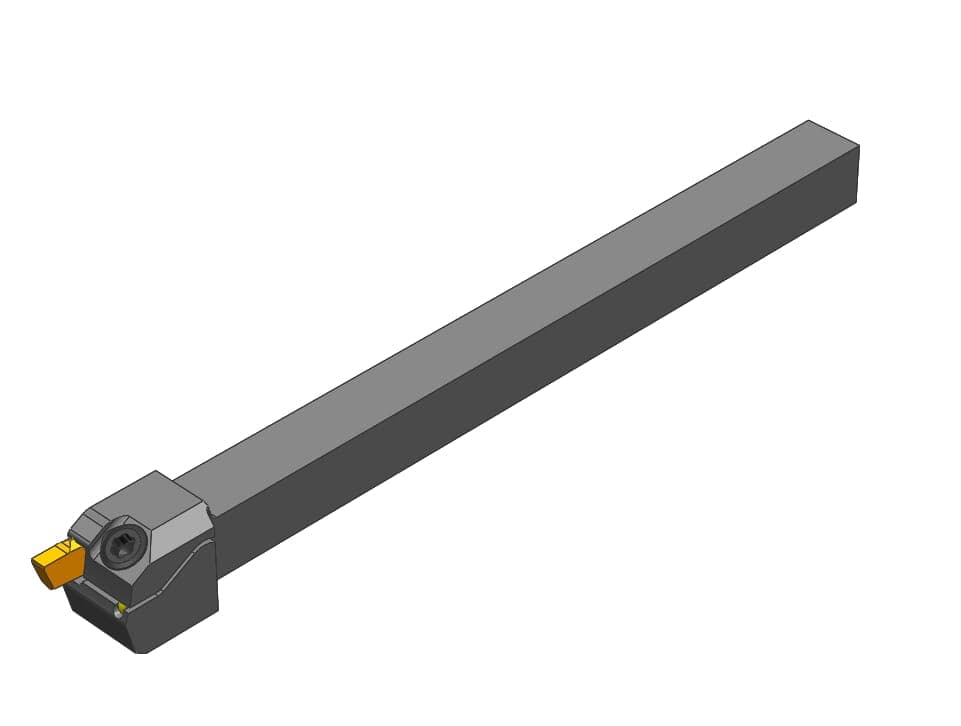

1 / 2: HORN LH264.0808.01
Grooving and side turning
Parting-off
External grooving| Head height (HK) | 12.5 |
|---|---|
| Head length (including cutting edge) (l2) | 17.5 |
Henter tekniske filer …
Kategorier:Toolholder H264 for grooving and boring
Henter matchende værktøj…
| Head length top _including cutting edge_ (l2) | 17.5 |
|---|
| Head width (b1) | 10 |
|---|
| Maximum insertion depth (tmax a) | 4 |
|---|
| Maximum workpiece diameter (Da min) | 22 |
|---|
| Peak height (h1) | 8 |
|---|
| Plating seat size (Größe) | 1 |
|---|
| Shank height (h) | 8 |
|---|
| Shank width (b) | 10 |
|---|
| Total length (including cutting insert) (l1) | 120 |
|---|
| Total length (l) | 120 |
|---|
