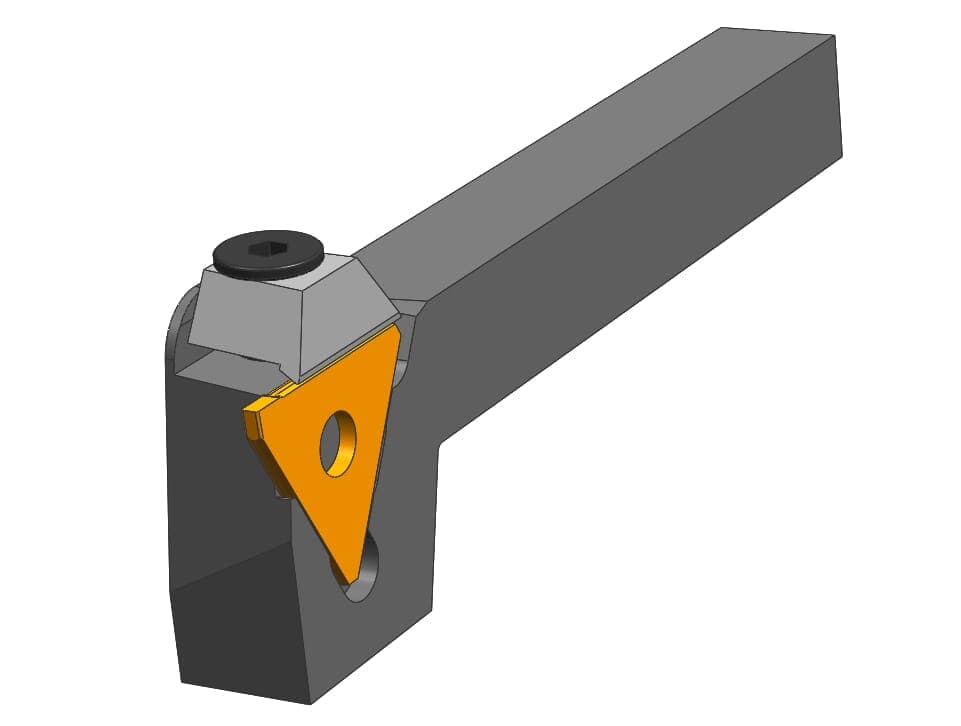

1 / 2: HORN R360.1212.01
Face grooving
Grooving and side turning
Parting-off
External groovingHenter tekniske filer …
Kategorier:System 360
Henter matchende værktøj…
| Adjustment dimension locating face insert (f1) | 10.5 |
|---|---|
| Clamping range maximum (Spannbereich) | 1.9 |
| Clamping range minimum (Spannbereich) | 0.5 |
| Head length (including cutting edge) (l2) | 24 |
| Maximum depth of groove (tmax) | 4 |
| Peak height (h1) | 25 |
| Plating seat size (Größe) | 1 |
| Shank height (h) | 12 |
| Shank width (b) | 12 |
| Total length (including cutting insert) (l1) | 100 |
| Total length (l) | 100 |
