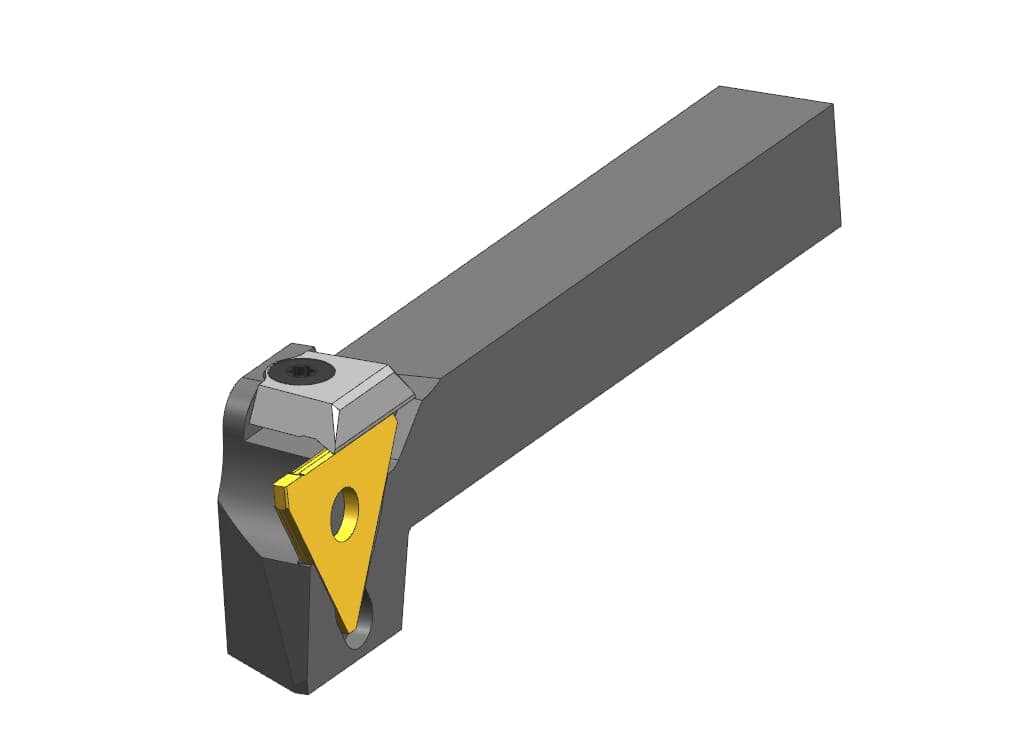

1 / 2: HORN R391.2020.01
Parting-off| Adjustment dimension locating face insert (f1) | 18.5 |
|---|---|
| Clamping range maximum (Spannbereich) | 1.9 |
| Clamping range minimum (Spannbereich) | 0.5 |
| Head length (including cutting edge) (l2) | 21 |
| Maximum depth of groove (tmax) | 8 |
| Peak height (h1) | 21 |
| Plating seat size (Größe) | 1 |
Henter tekniske filer …
Kategorier:Toolholder System 391
Henter matchende værktøj…
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
