Inserts type A105 for face grooving groove outside diameter from 10 mm

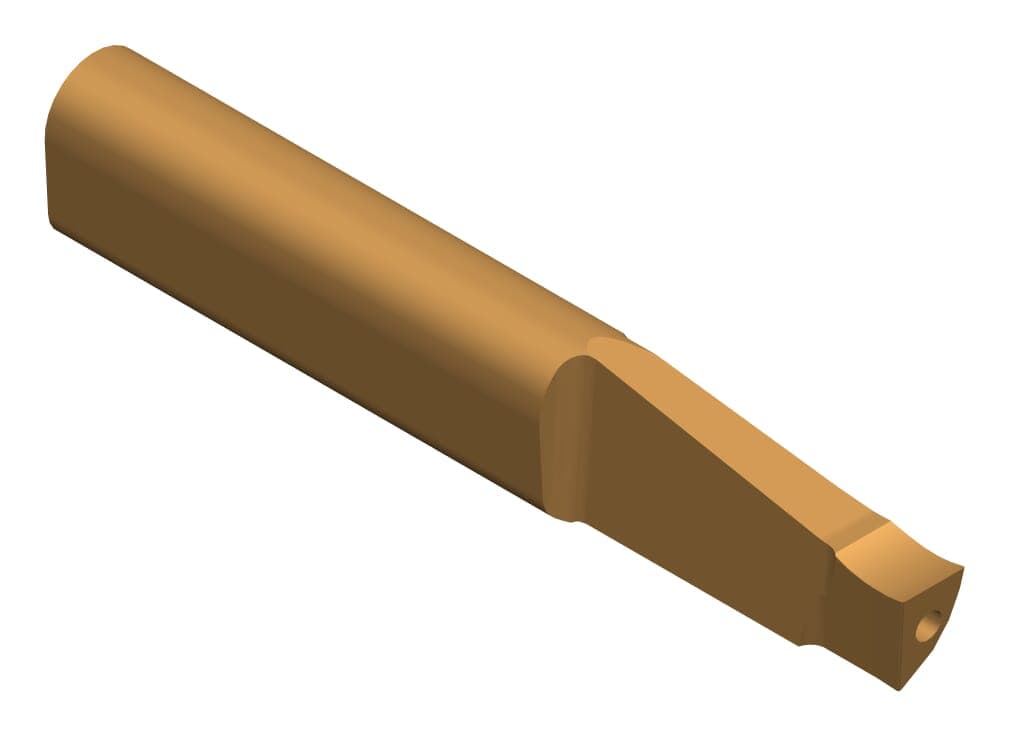

1 / 2: HORN RA105.1030.2.2 EG35
Face grooving
Internal cooling| Corner radius (r) | 0.1 |
|---|---|
| Maximum depth of groove (tmax a) | 15 |
| Maximum starting outside diameter (Dmax) | 46 |
| Smallest axial bore diameter (Dmin) | 10 |
| Total length (l) |
Henter tekniske filer …
Kategorier:Inserts type A105 for face grooving groove outside diameter from 10 mm
Henter matchende værktøj…
| 40 |
| Total length (l5) | 40 |
|---|
| Width of groove (w) | 3 |
|---|
