Toolholder System H25 face grooving

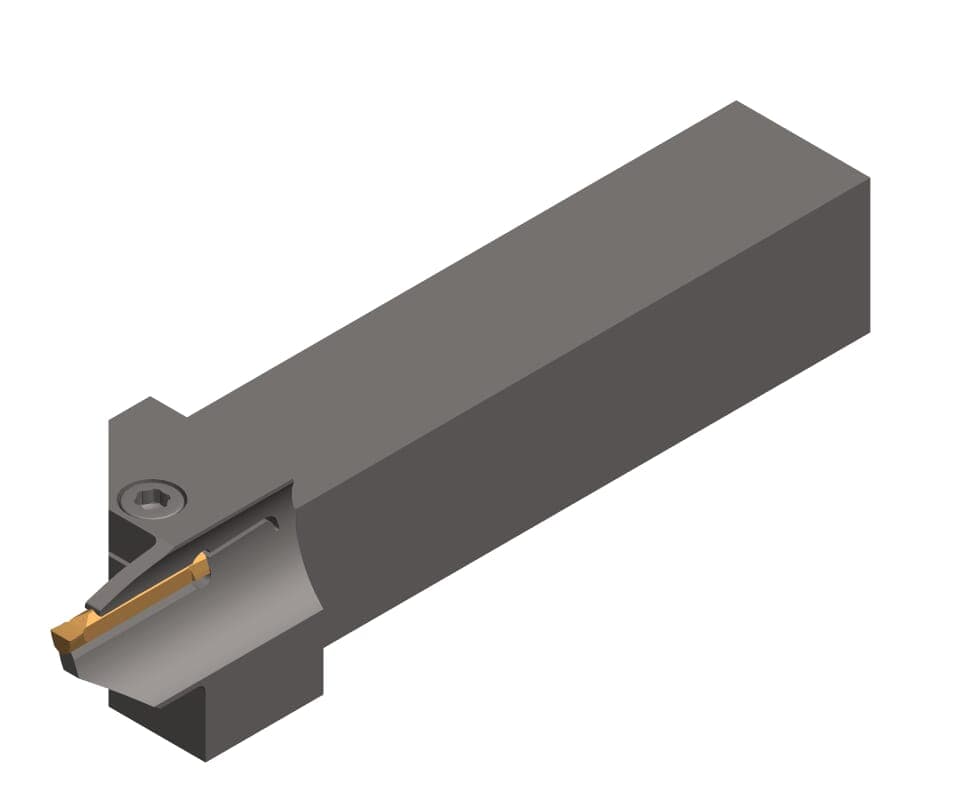

1 / 2: HORN RAH25A.20.2025.03
Face grooving
Face grooving and side turning
Face grooving with collar| Head height (h3) | 5.5 |
|---|---|
| Head width (b3) | 26.5 |
| Maximum insertion depth (tmax a) |
Henter tekniske filer …
Kategorier:Toolholder System H25 face grooving
Henter matchende værktøj…
| 14 |
| Maximum starting outside diameter (Dmax) | 25 |
|---|
| Minimum starting outside diameter (Da min) | 20 |
|---|
| Peak height (h1) | 20.3 |
|---|
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 120 |
|---|
| Total length (l) | 120 |
|---|
