Cassette 224 LAK/RAK with IC for face grooving

HORN RAK224.9013.04.IK

Varenr.: HRAK224901304IK

HORN RAK224.9013.04.IK

Tekniske billeder


Face grooving
Face grooving and side turning
Face grooving with collar

Targeted coolant

Tekniske filer

Henter tekniske filer …

Kategorier:Cassette 224 LAK/RAK with IC for face grooving

Matchende værktøj

Henter matchende værktøj…

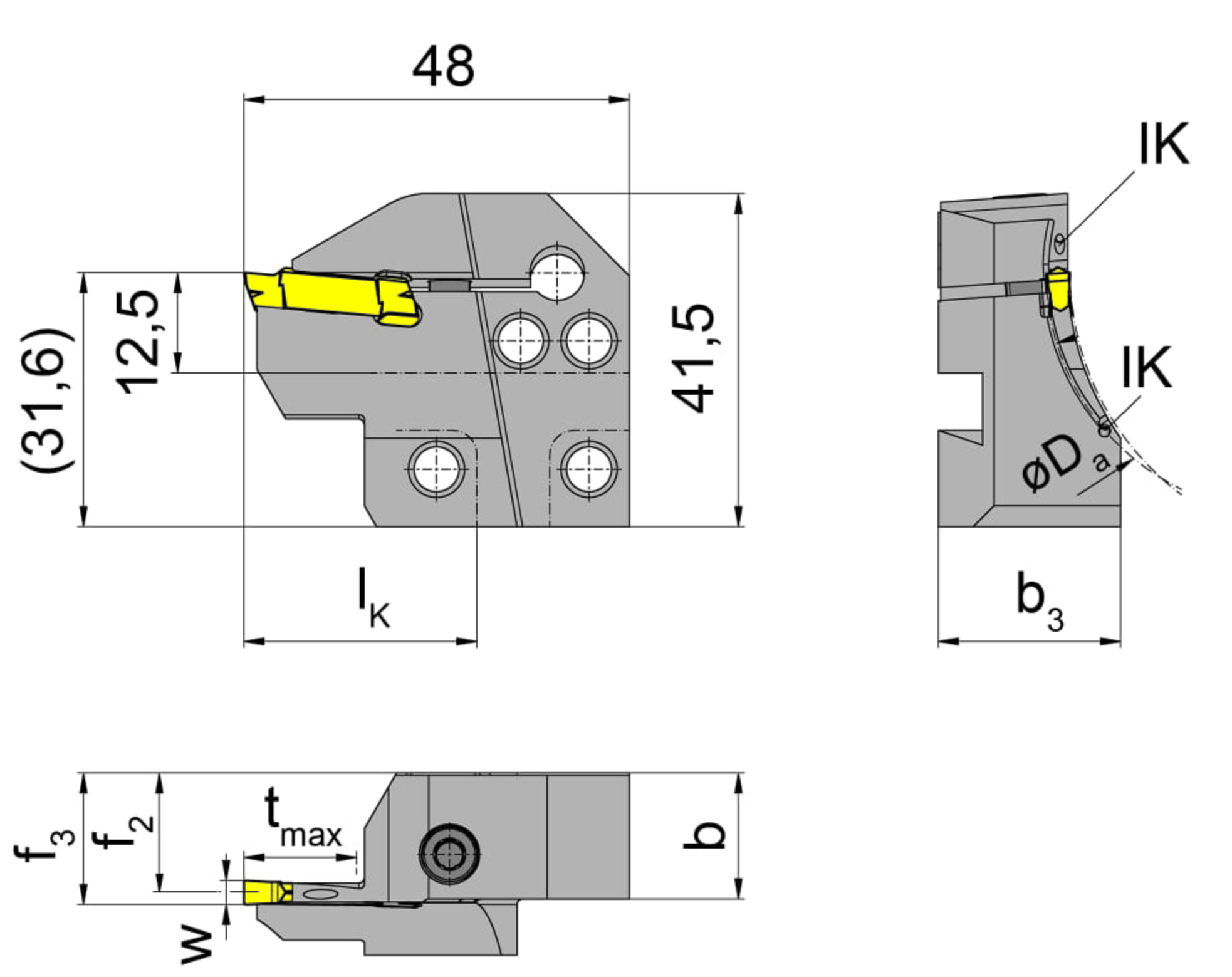

Adjustment dimension of system cassette form(f3)	f2+w/2
Maximum starting outside diameter (Dmax)	130
Maximum depth of groove (tmax)	14
Minimum starting outside diameter (Da min)	90
Width (b)	15.7
Width of groove (w)	4
