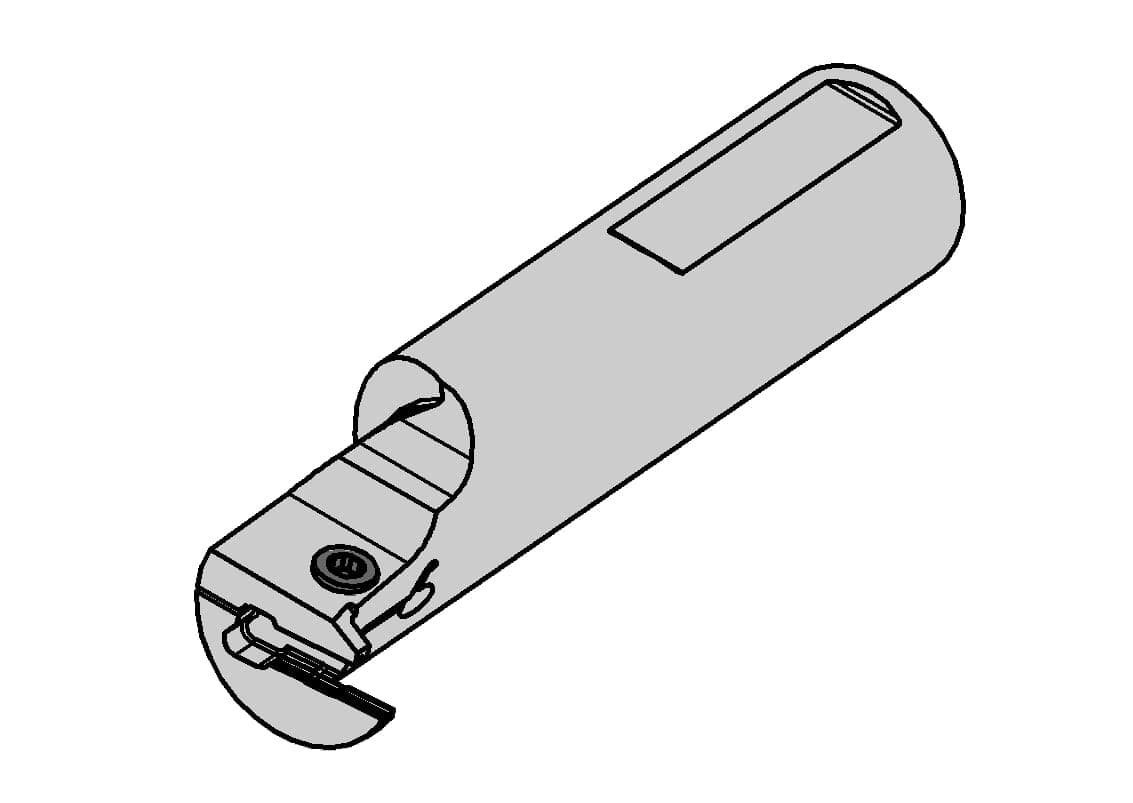

1 / 2: HORN RB224.0025.1.02
Internal bore contouring
Internal grooving
Internal cooling| Clamping range maximum (Spannbereich) | 2.8 |
|---|---|
| Clamping range minimum (Spannbereich) | 2.4 |
Henter tekniske filer …
Kategorier:Toolholder System B224
Henter matchende værktøj…

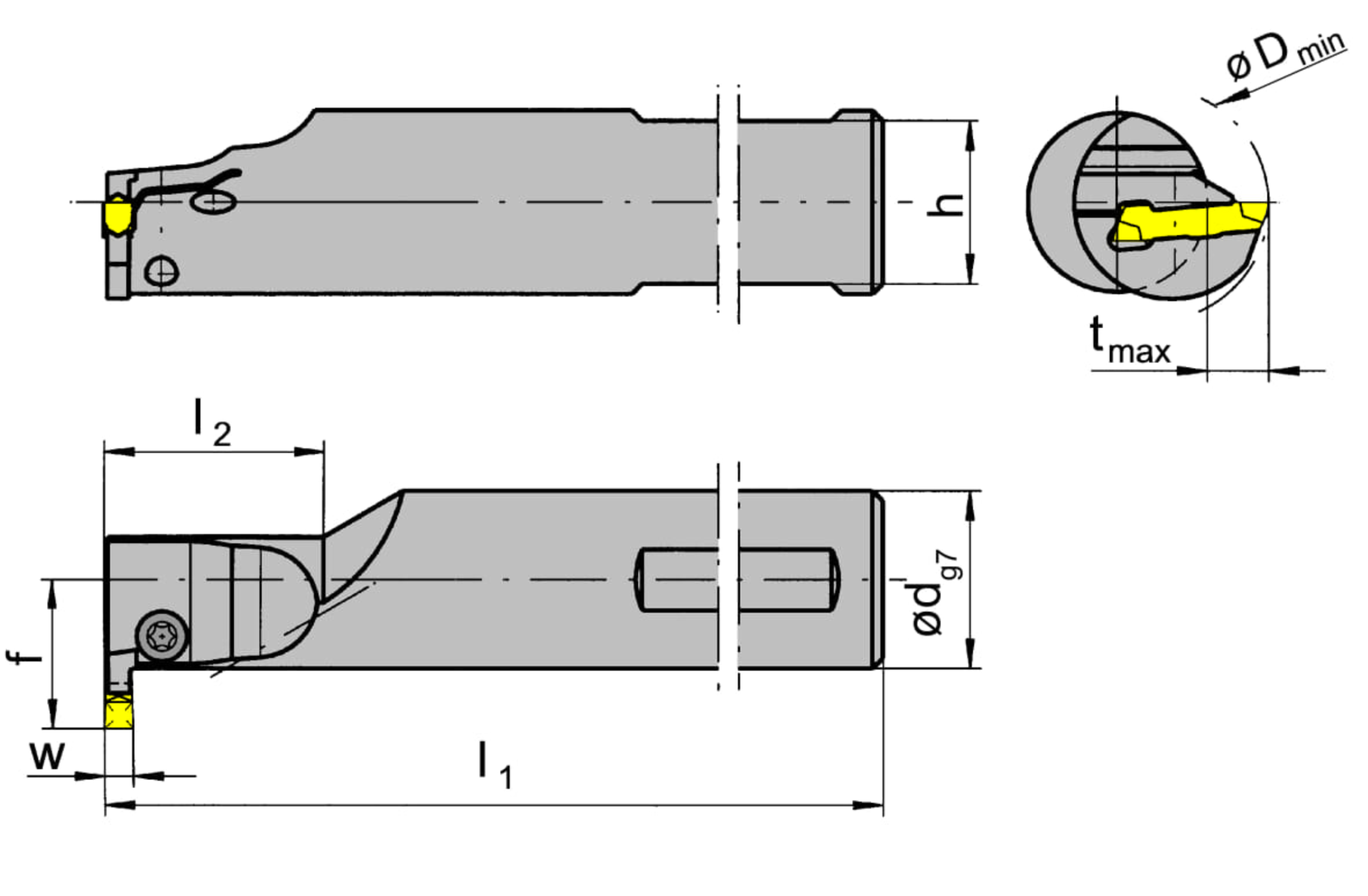

| Clamping_ shank diameter (d) | 25 |
|---|
| Distance of clamping surface (s) (h) | 23 |
|---|
| Maximum depth of groove (tmax) | 8 |
|---|
| Minimum drilling diameter (Dmin) | 28 |
|---|
| Plating seat size (Größe) | 2 |
|---|
| Shank, clamping diameter (d) | 25 |
|---|
| Total length (including cutting insert) (l1) | 130 |
|---|
| Total length (l) | 130 |
|---|
| Working length (l2) | 30 |
|---|
