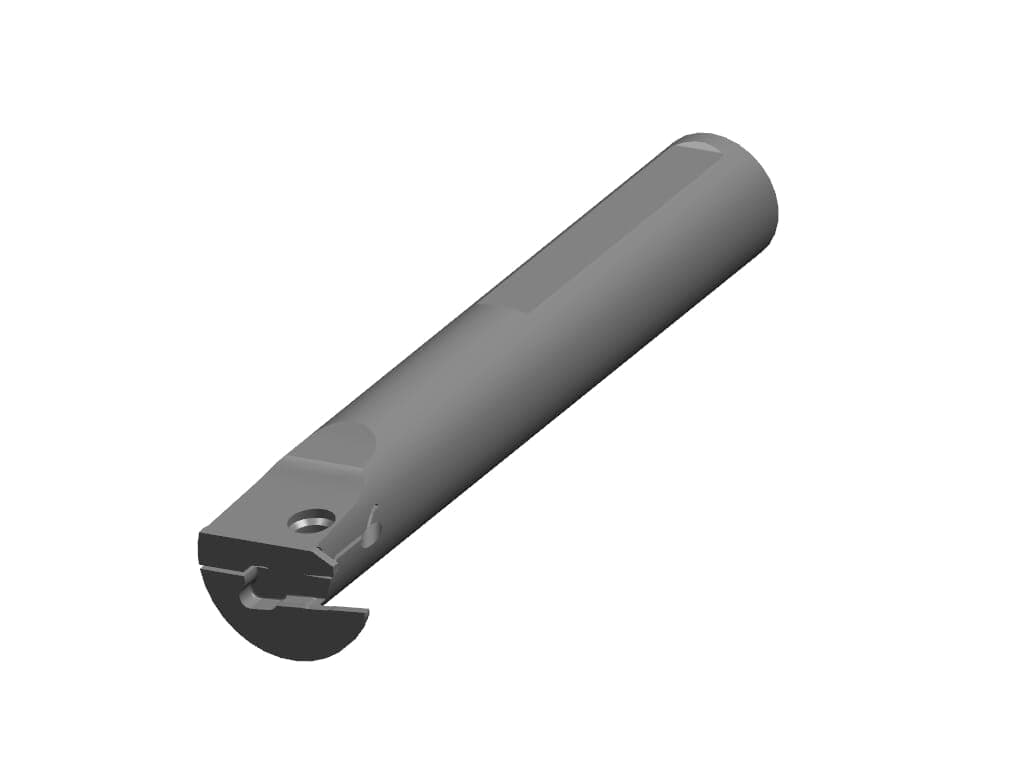

1 / 2: HORN RB224.0032.0.06
Internal bore contouring
Internal grooving
Internal cooling| Clamping range maximum (Spannbereich) | 6.1 |
|---|---|
| Clamping range minimum (Spannbereich) | 5.1 |
Henter tekniske filer …
Kategorier:Toolholder System B224
Henter matchende værktøj…
| Clamping_ shank diameter (d) | 32 |
|---|
| Distance of clamping surface (s) (h) | 30 |
|---|
| Maximum depth of groove (tmax) | 8 |
|---|
| Minimum drilling diameter (Dmin) | 42 |
|---|
| Plating seat size (Größe) | 6 |
|---|
| Shank, clamping diameter (d) | 32 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
