Toolholder H100 for grooving and parting off

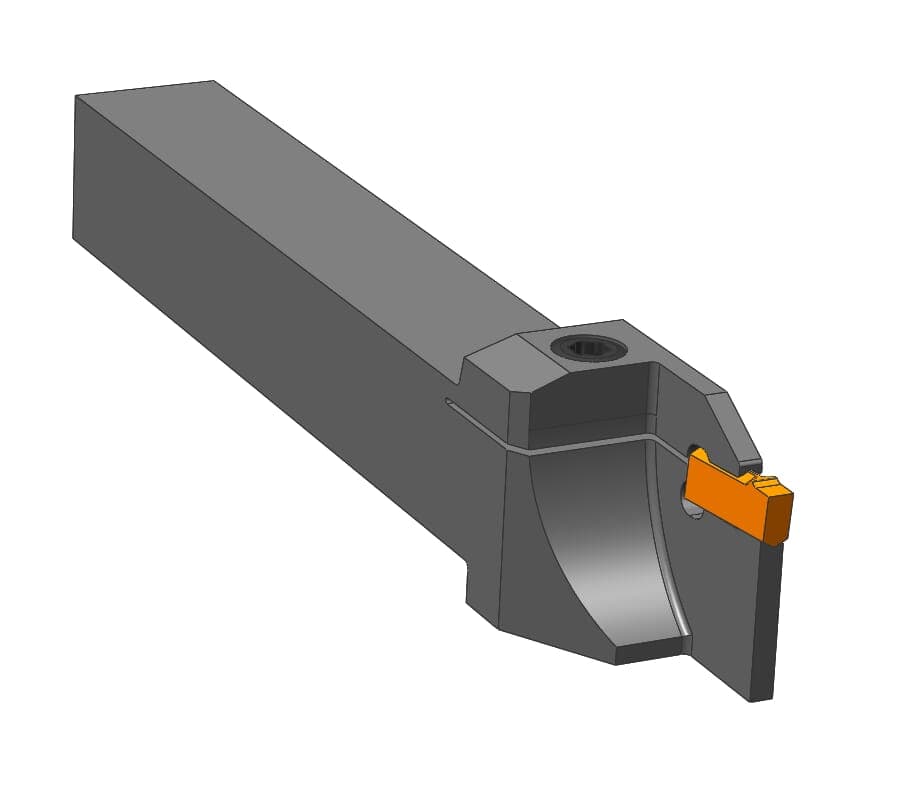

1 / 2: HORN RH100.1616.23
Parting-off
External grooving| Form _Form_ | A |
|---|---|
| Head height (HK) | 25 |
| Head length bottom without insert (l2) | 30 |
| Head length top _including cutting edge_ (l2) | 33.5 |
| Maximum insertion depth (tmax a) |
Henter tekniske filer …
Kategorier:Toolholder H100 for grooving and parting off
Henter matchende værktøj…
| 21 |
| Maximum workpiece diameter (Da min) | 42 |
|---|
| Peak height (h1) | 20 |
|---|
| Shank height (h) | 16 |
|---|
| Shank width (b) | 16 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
