Toolholder H100 for grooving and parting off

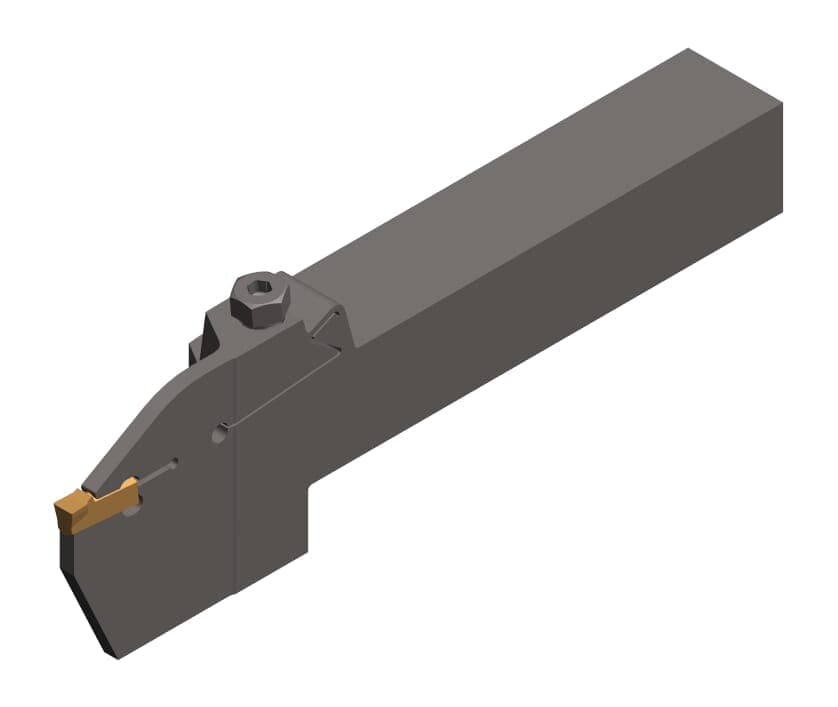

1 / 2: HORN RH100.2020.3.04
Parting-off
External grooving| Head length (including cutting edge) (l2) | 50 |
|---|---|
| Head length top _including cutting edge_ (l2) | 60 |
| Maximum insertion depth (tmax a) | 33 |
| Peak height (h1) | 32 |
| Shank height (h) |
Henter tekniske filer …
Kategorier:Toolholder H100 for grooving and parting off
Henter matchende værktøj…
| 20 |
| Shank width (b) | 20 |
|---|
| Size (Größe) | 4 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
