Toolholder H100 for grooving and parting off

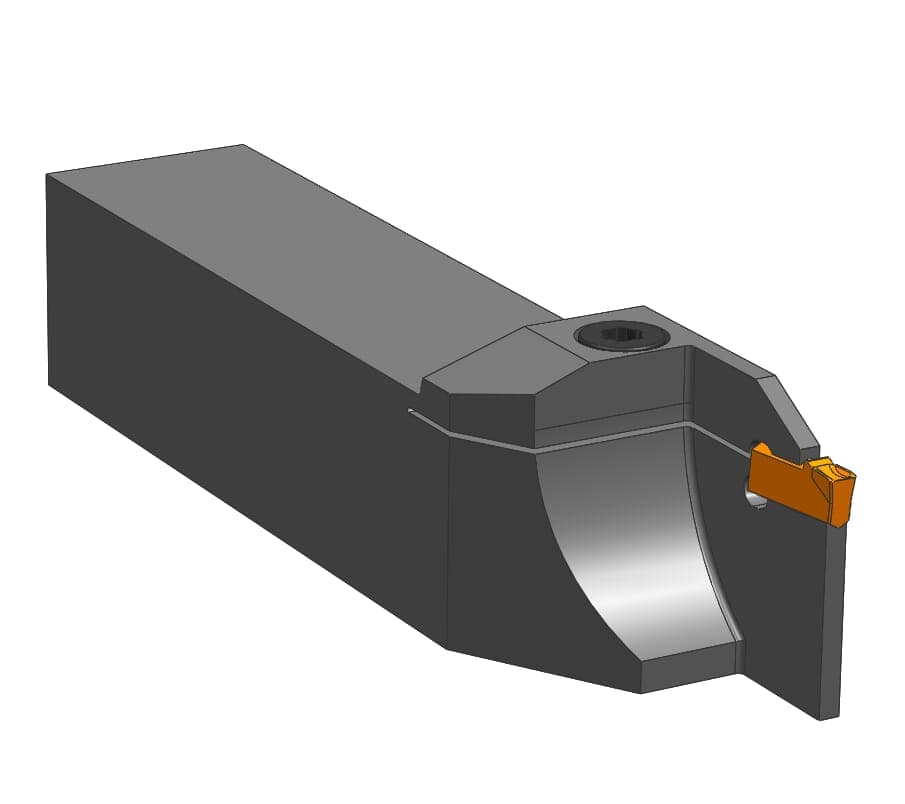

1 / 2: HORN RH100.2525.73 T MAX 25MM
Parting-off

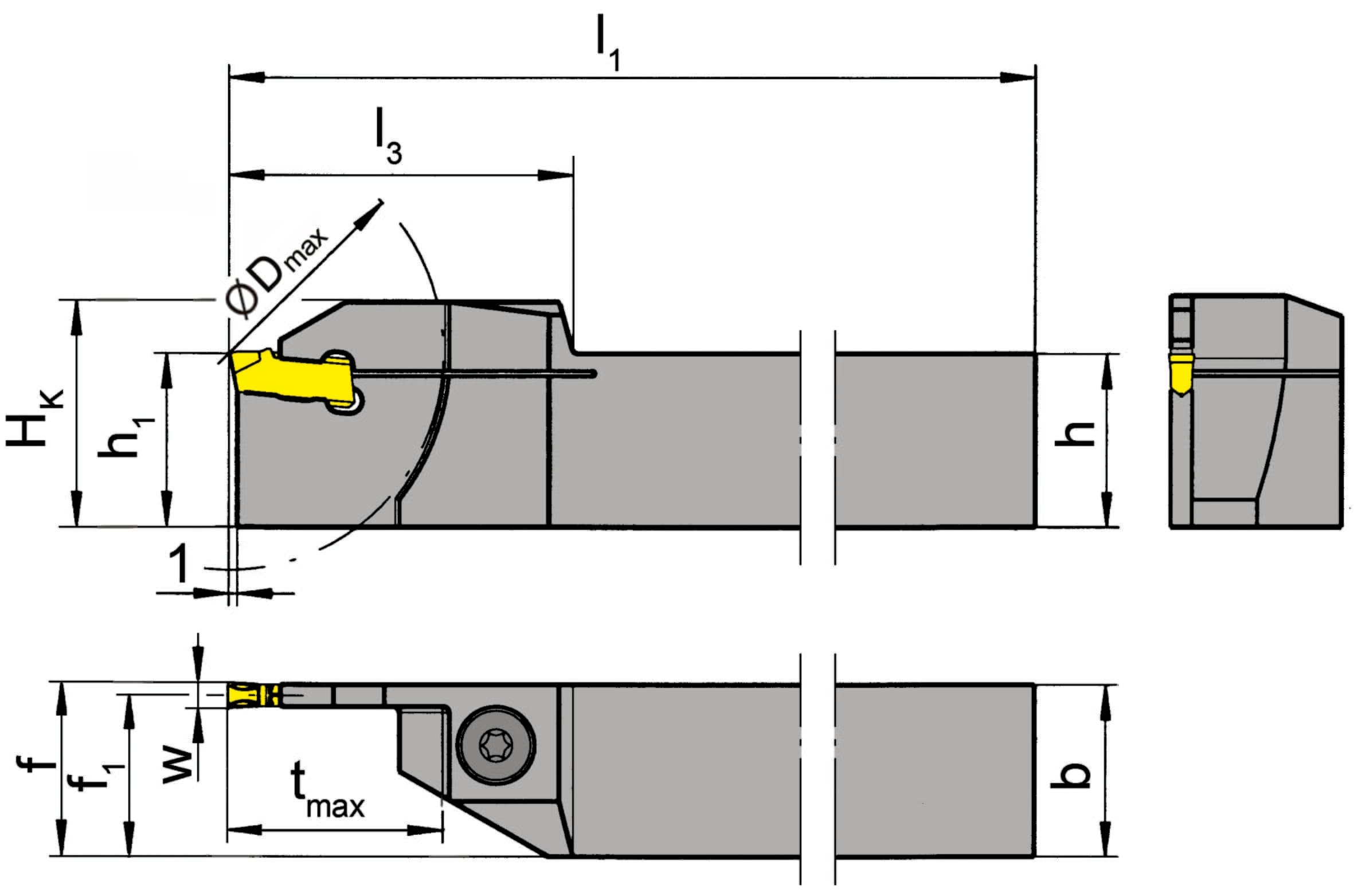

External grooving| Head height (HK) | 31 |
|---|---|
| Head length top _including cutting edge_ (l2) | 40 |
| Maximum insertion depth (tmax a) | 25 |
| Maximum workpiece diameter (Da min) | 50 |
| Peak height (h1) |
Henter tekniske filer …
Kategorier:Toolholder H100 for grooving and parting off
Henter matchende værktøj…
| 25 |
| Shank height (h) | 25 |
|---|
| Shank width (b) | 25 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
