Toolholder H100 for grooving and parting off

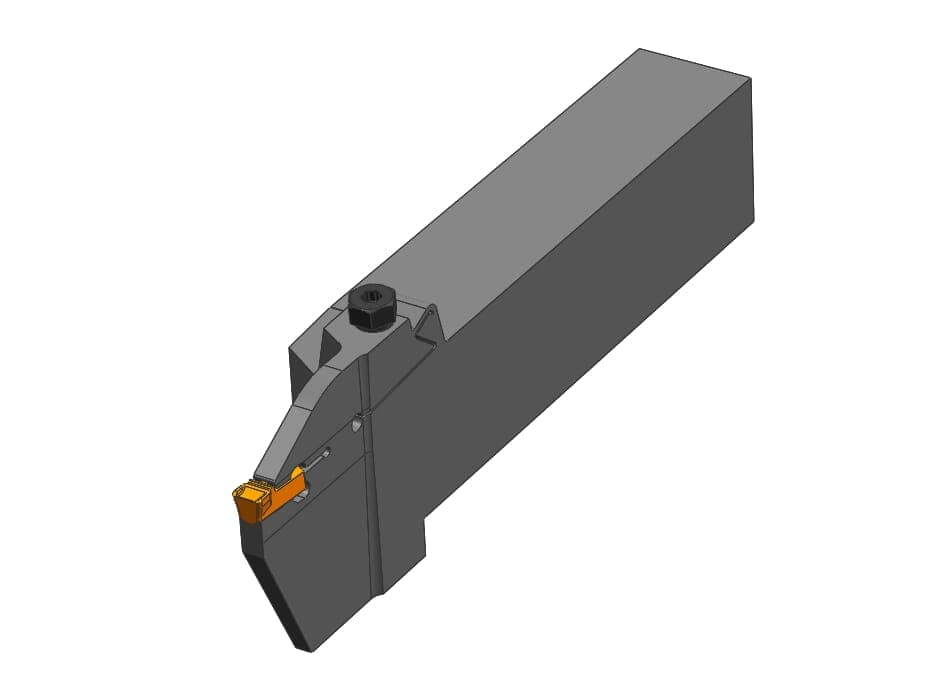

1 / 2: HORN RH100.3225.3.06
Parting-off
External grooving| Head length (including cutting edge) (l2) | 50 |
|---|---|
| Head length top _including cutting edge_ (l2) | 60 |
| Maximum insertion depth (tmax a) | 33 |
| Peak height (h1) | 40 |
| Shank height (h) |
Henter tekniske filer …
Kategorier:Toolholder H100 for grooving and parting off
Henter matchende værktøj…
| 32 |
| Shank width (b) | 25 |
|---|
| Size (Größe) | 6 |
|---|
| Total length (including cutting insert) (l1) | 170 |
|---|
| Total length (l) | 170 |
|---|
