Toolholder H224 for grooving and side turning

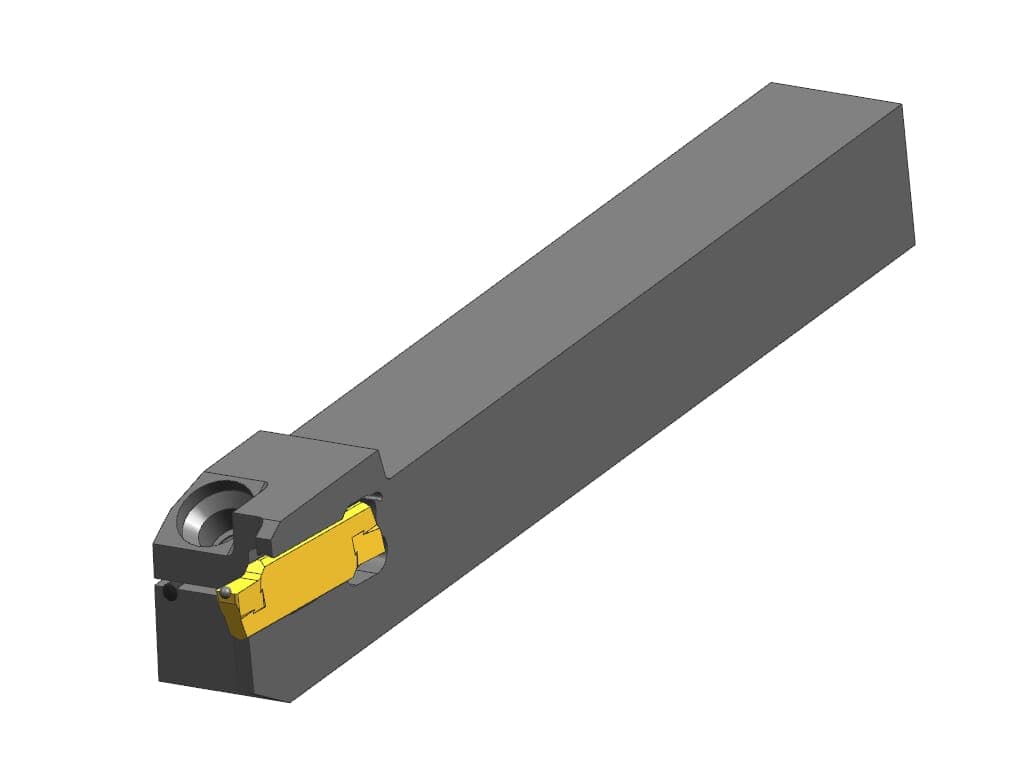

1 / 2: HORN RH224.1212.61
Grooving and side turning
Parting-off
External grooving| Clamping range maximum (Spannbereich) | 2.4 |
|---|---|
| Clamping range minimum (Spannbereich) | 2 |
Henter tekniske filer …
Kategorier:Toolholder H224 for grooving and side turning
Henter matchende værktøj…
| Maximum insertion depth (tmax a) | 7 |
|---|
| Maximum workpiece diameter (Da min) | 100 |
|---|
| Peak height (h1) | 12 |
|---|
| Plating seat size (Größe) | 1 |
|---|
| Shank height (h) | 12 |
|---|
| Shank width (b) | 12 |
|---|
| Total length (including cutting insert) (l1) | 100 |
|---|
| Total length (l) | 100 |
|---|
