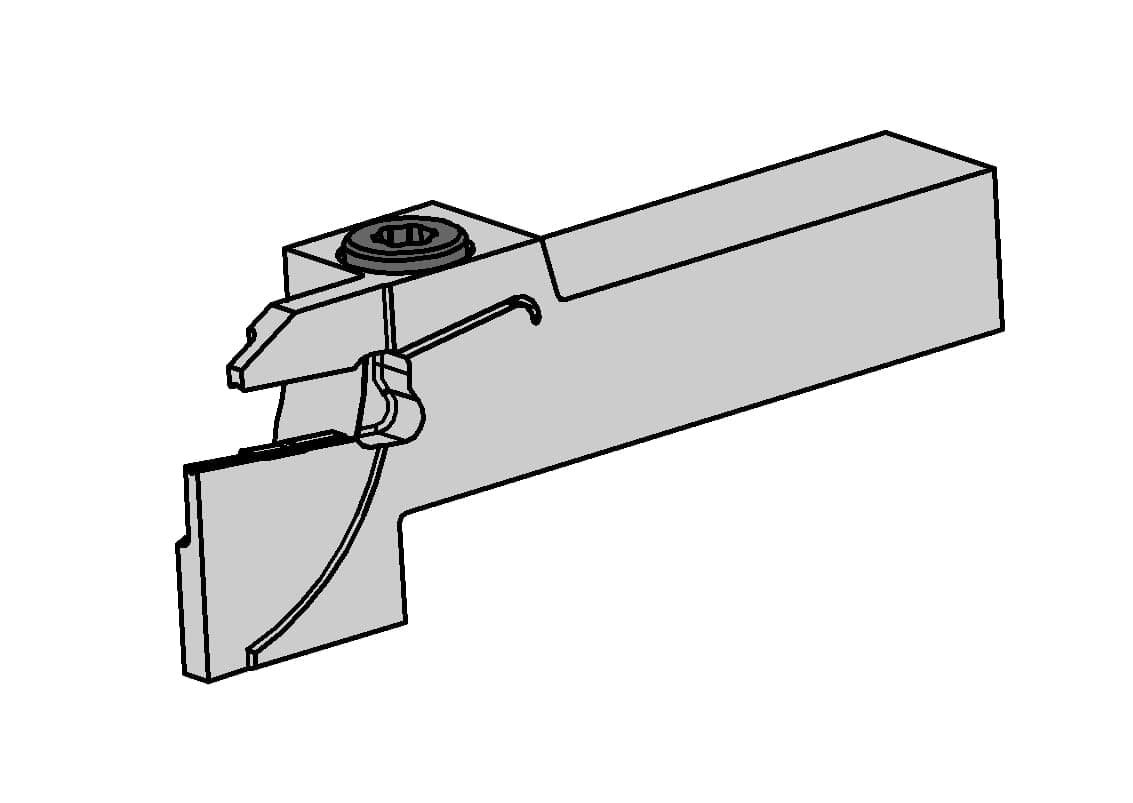

Toolholder H224 for grooving and side turning
1 / 2: HORN RH224.1212.81 ( TRAUB TNL 12)
Grooving and side turning
Parting-off
External grooving| Clamping range maximum (Spannbereich) | 2.4 |
|---|---|
| Clamping range minimum (Spannbereich) | 2 |
Henter tekniske filer …
Kategorier:Toolholder H224 for grooving and side turning
Henter matchende værktøj…
| Head length (including cutting edge) (l2) | 19.5 |
|---|
| Maximum insertion depth (tmax a) | 8.2 |
|---|
| Peak height (h1) | 20 |
|---|
| Plating seat size (Größe) | 1 |
|---|
| Shank height (h) | 12 |
|---|
| Shank width (b) | 12 |
|---|
| Total length (including cutting insert) (l1) | 95 |
|---|
| Total length (l) | 95 |
|---|
