System H224 with IC variant "0A"

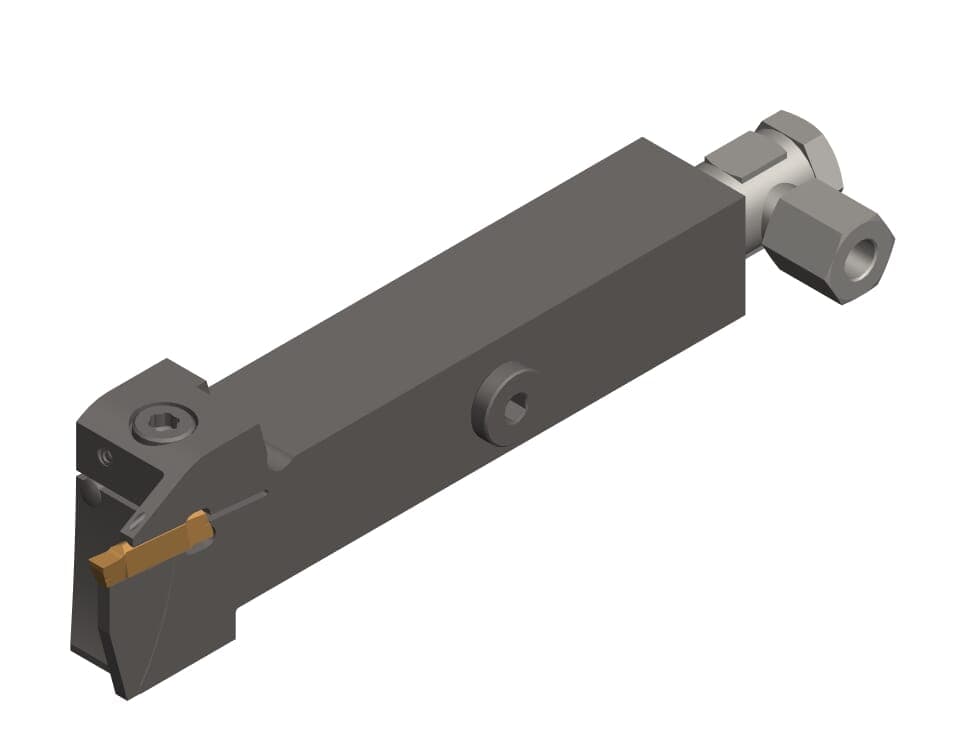

1 / 2: HORN RH224.2020.0.03IK
Grooving and side turning
Parting-off
External grooving
Targeted coolantHenter tekniske filer …
Kategorier:System H224 with IC variant "0A"
Henter matchende værktøj…
| Head length (including cutting edge) (l2) | 26 |
|---|---|
| Head length top _including cutting edge_ (l2) | 35 |
| Maximum insertion depth (tmax a) | 14 |
| Peak height (h1) | 25 |
| Plating seat size (Größe) | 3 |
| Shank height (h) | 20 |
| Shank width (b) | 20 |
| Total length (including cutting insert) (l1) | 125 |
| Total length (l) | 125 |
