System H224 with IC variant "0A"

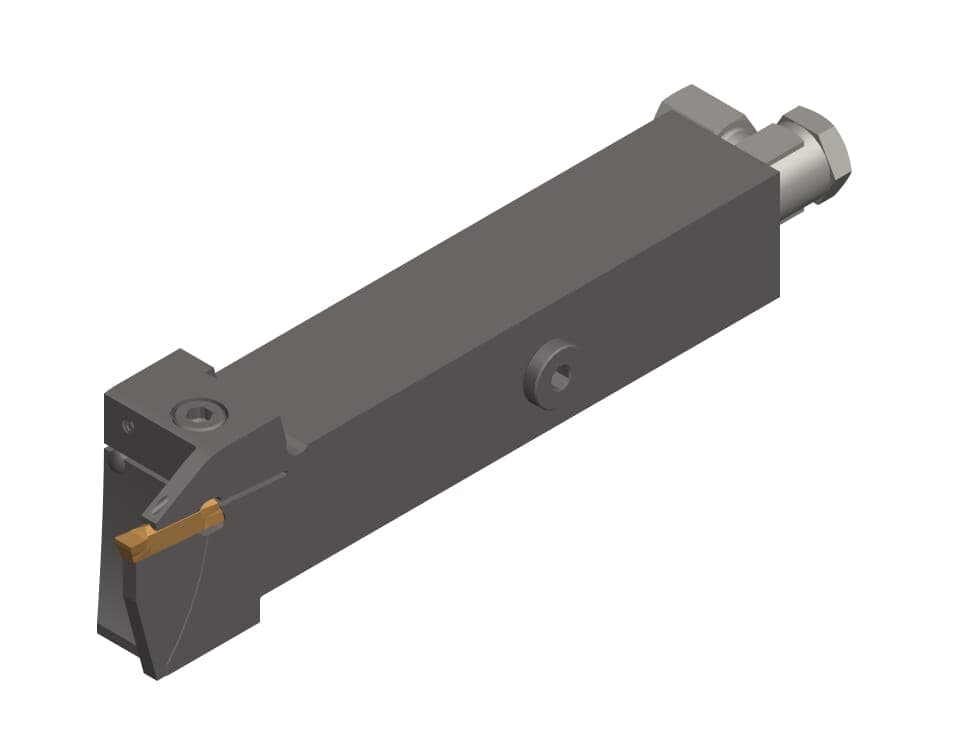

1 / 2: HORN RH224.2525.0.24.IK
Grooving and side turning
Parting-off
External grooving
Targeted coolantHenter tekniske filer …
Kategorier:System H224 with IC variant "0A"
Henter matchende værktøj…

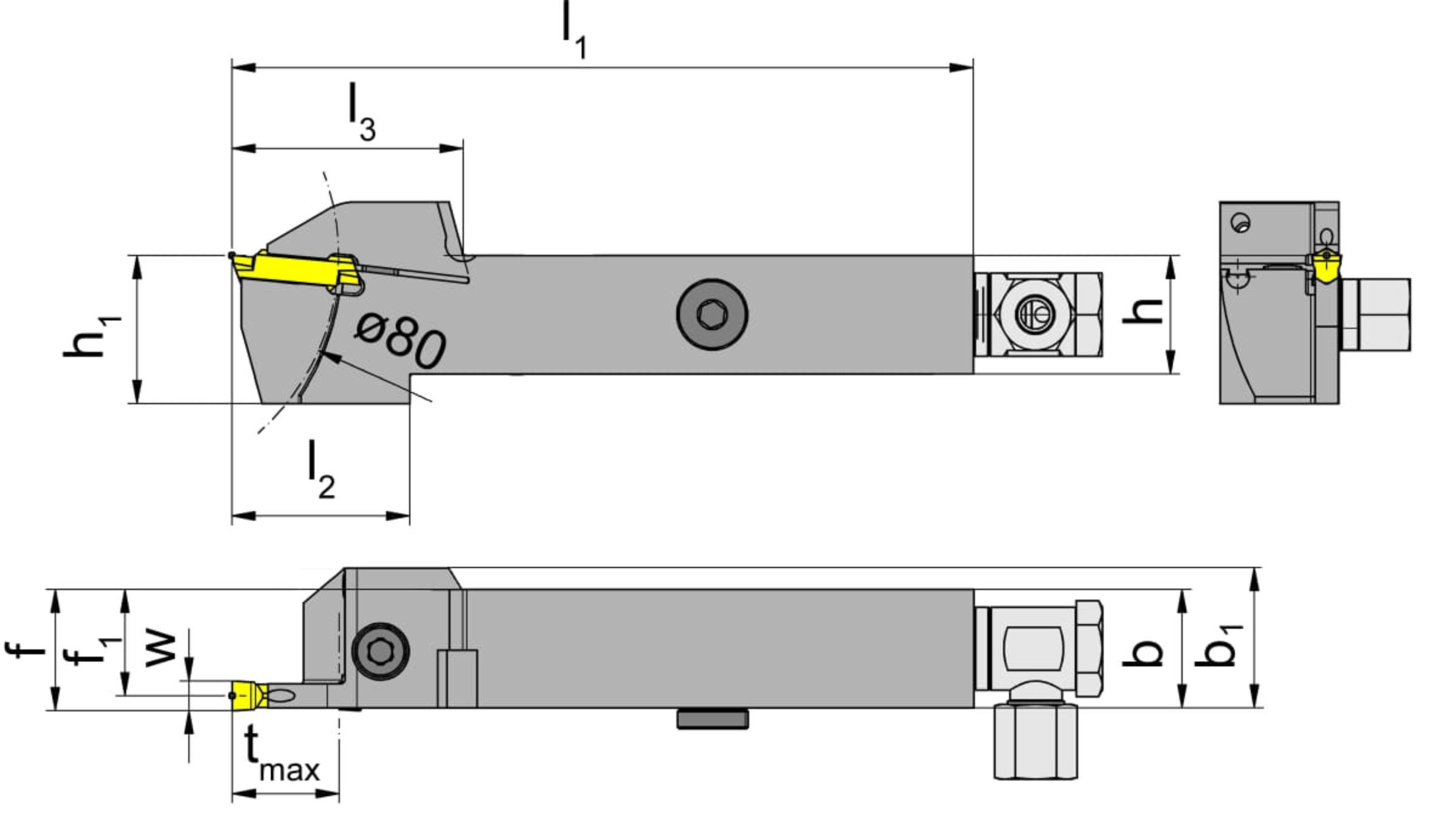

| Head length (including cutting edge) (l2) | 30 |
|---|---|
| Head length top _including cutting edge_ (l2) | 39 |
| Maximum insertion depth (tmax a) | 18 |
| Peak height (h1) | 30 |
| Plating seat size (Größe) | 4 |
| Shank height (h) | 25 |
| Shank width (b) | 25 |
| Total length (including cutting insert) (l1) | 150 |
| Total length (l) | 150 |
